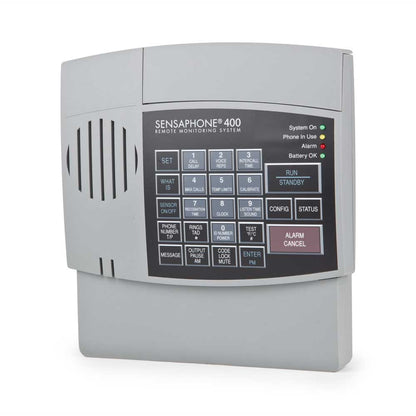

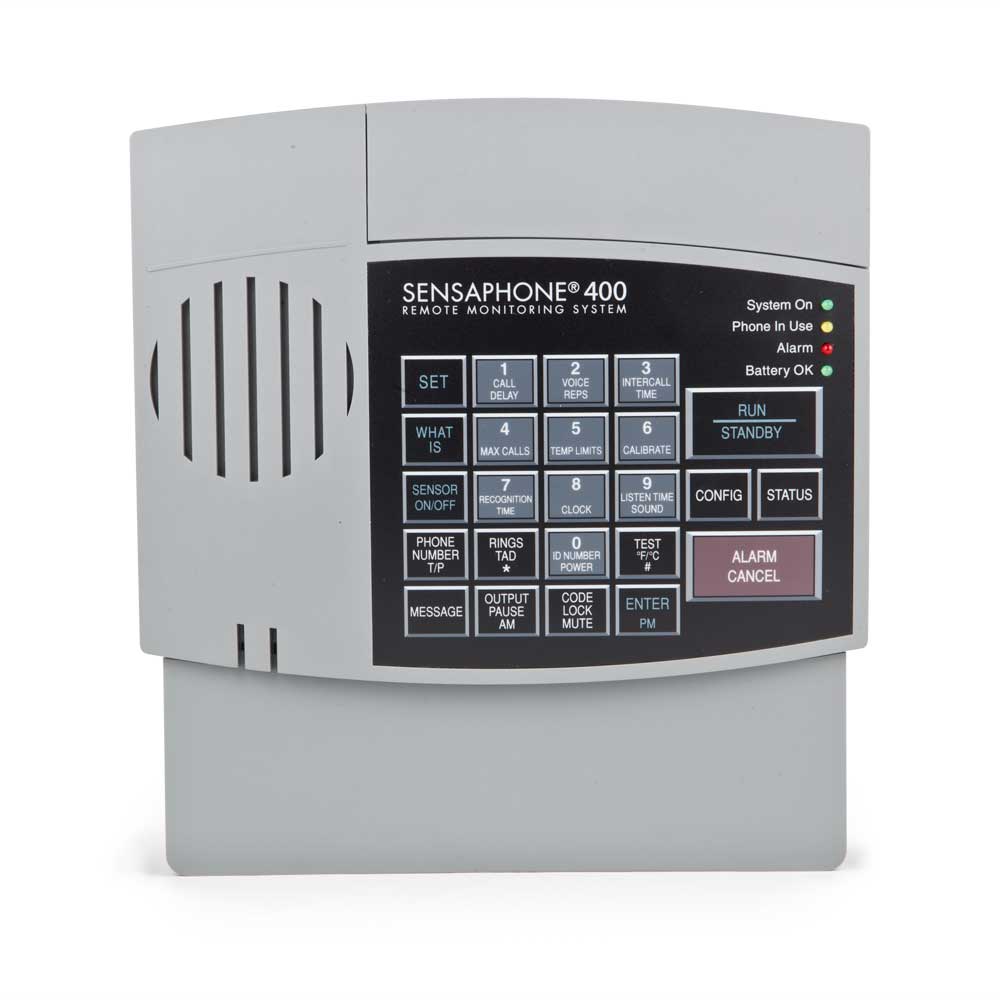

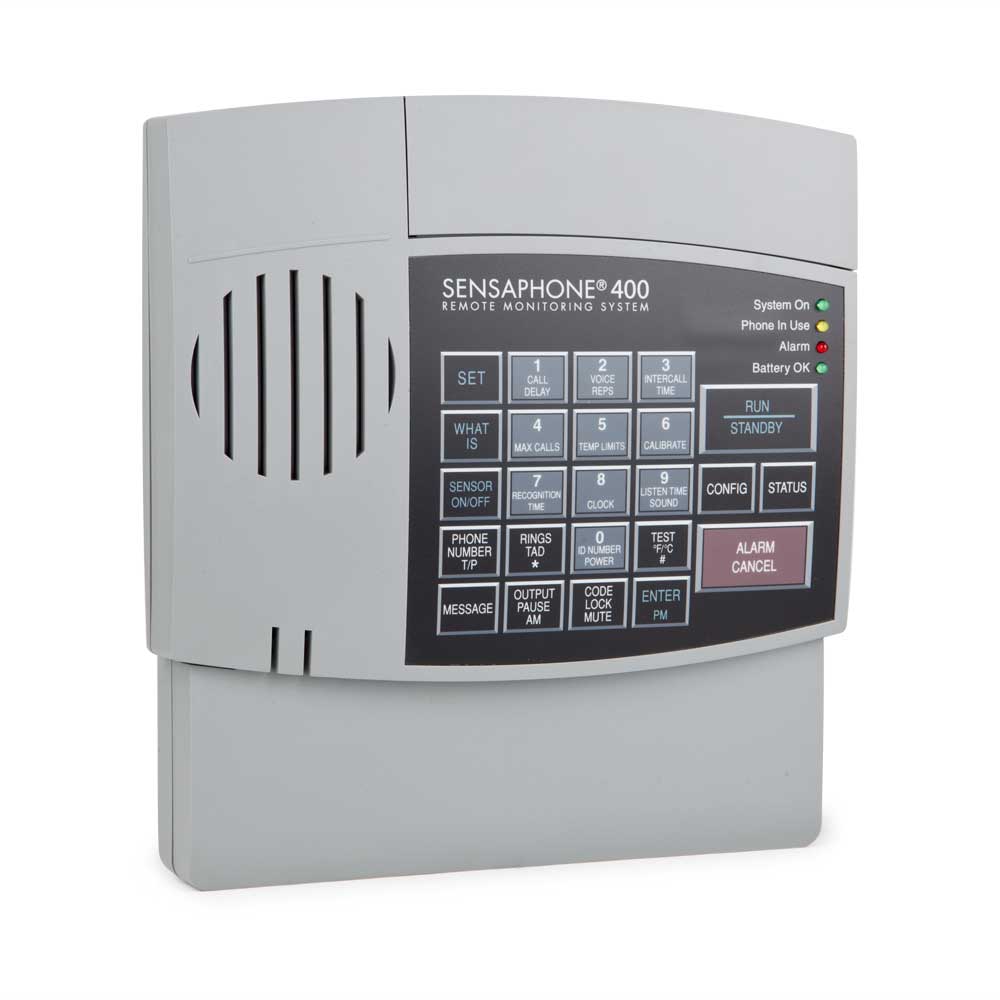

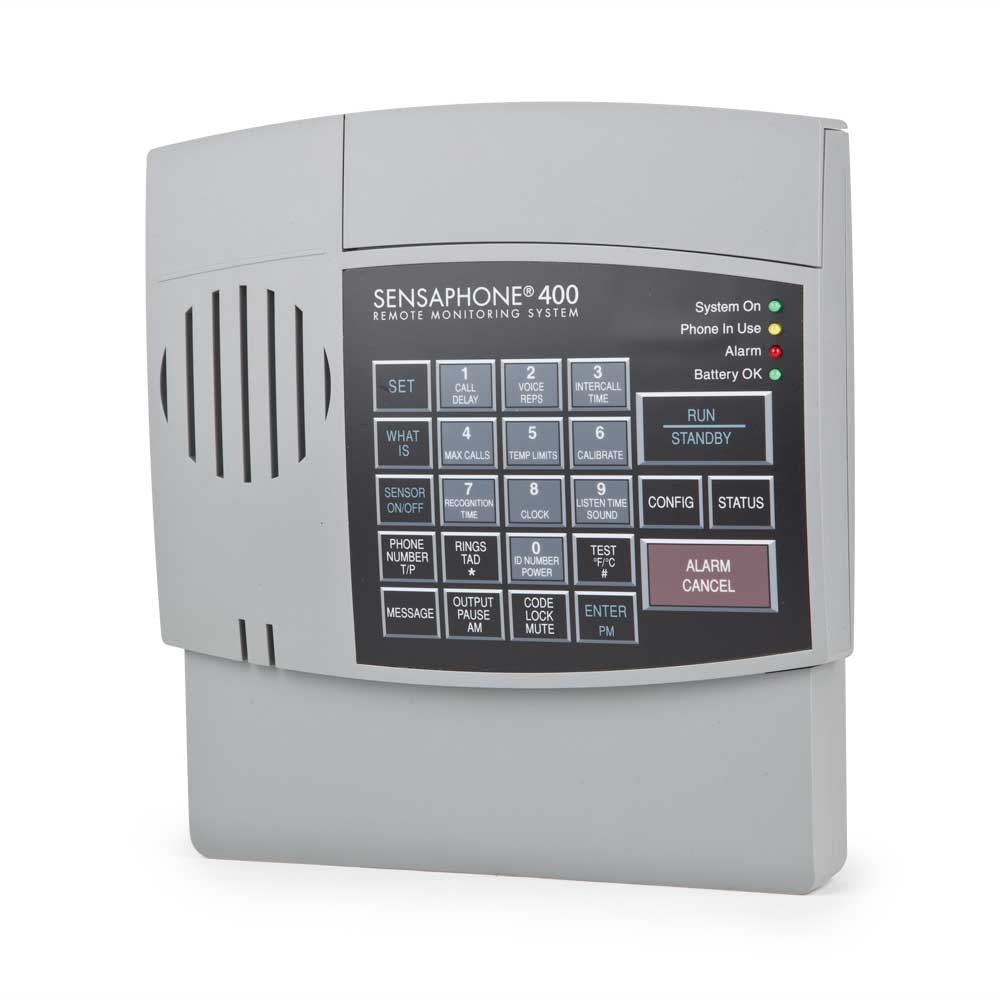

Sensaphone 400 & 800 Monitoring Systems

SKU: FGD-0400

Communication Method: POTS Telephone Line

Number of Inputs: 4/8

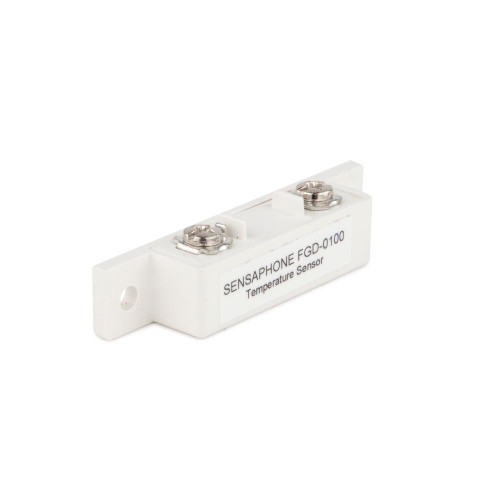

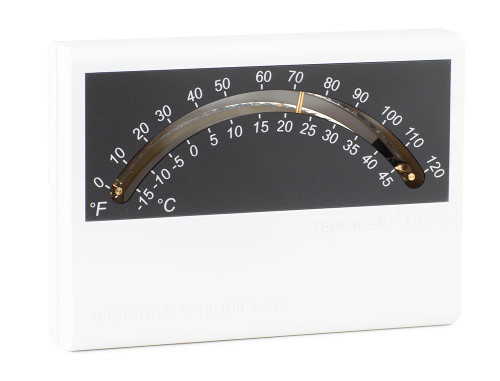

Input Types: 2.8k, Dry Contact

Product Type: Digital

Auto Dialer Temperature Alarm Provides Instant Notifications

Simple, convenient, cost-effective remote monitoring for vacation homes and property managers
Record custom voice alerts and receive alarm messages in your own voice
Receive voice alerts and alarm notifications over standard telephone lines
Notifies up to four people by voice phone call in the event of an alarm

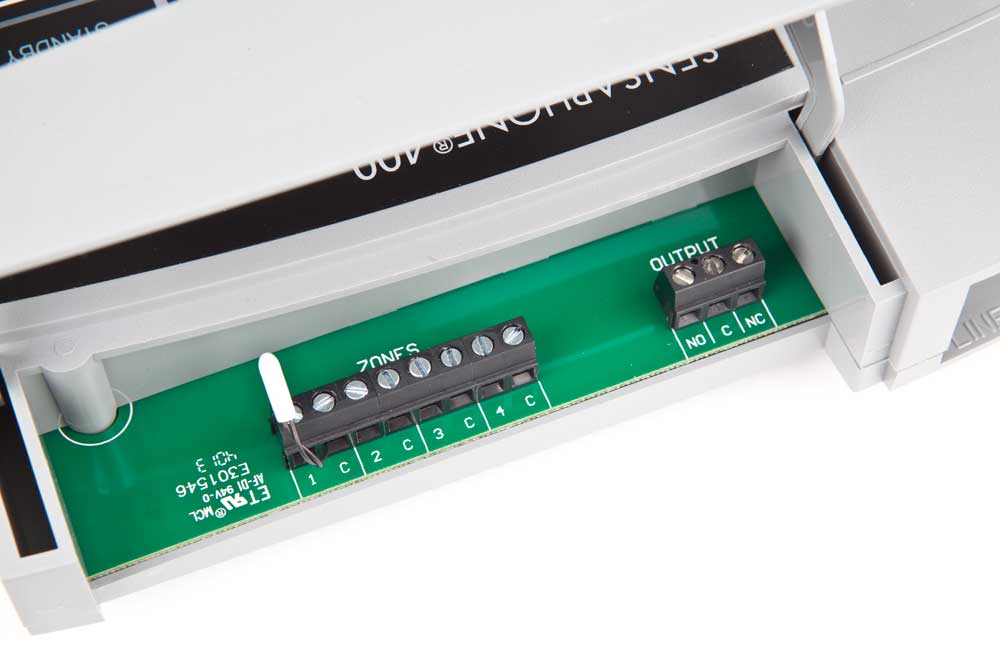

Up to four or eight external sensors monitor temperature, humidity, water, and more
Included relay output can switch local devices on/off based on alarm activity
Temperature-sensing range of -20° to 150°F | -30° to 65°C
Use a dual setback thermostat to control temperature between two set points
Made in USA

The Sensaphone 400 & 800 Monitoring Systems offer small-business owners, vacation property owners, and other property managers an easy and inexpensive way to monitor a remote facility. Commonly referred to as an auto dialer, this system will notify you if it senses undesirable temperatures or other conditions.

When the system is connected to a standard telephone line, you can record custom “Alert Condition” notifications and receive alarm messages in your own voice. This system can set off a local alarm if a phone line is cut and control a thermostat to adjust site temperature between two set points. Nonvolatile memory retains system settings in the event of power loss. You can call in by phone to get the status of each monitored condition.

INCLUDED: Internal battery backup system provides 24 hours of continuous monitoring and alerts in the event of a power outage
INCLUDED: A pre-installed temperature probe to monitor conditions at the installation location
NO MONTHLY FEES: unlike other systems that require ongoing expenses

Technical Specifications

Communication Method:

Phone Line

Number of Inputs:

4 or 8

Input Types:

Contact & 2.8K

Temperature Sensing Range:

-20° to 150°F | -30° to 65°C

Output Relay:

One low voltage NO/NC relay output
Manual or automatic alarm switching

Remote Access:

Call in to check status and make programming changes
Microphone for listen in status

Local Access:

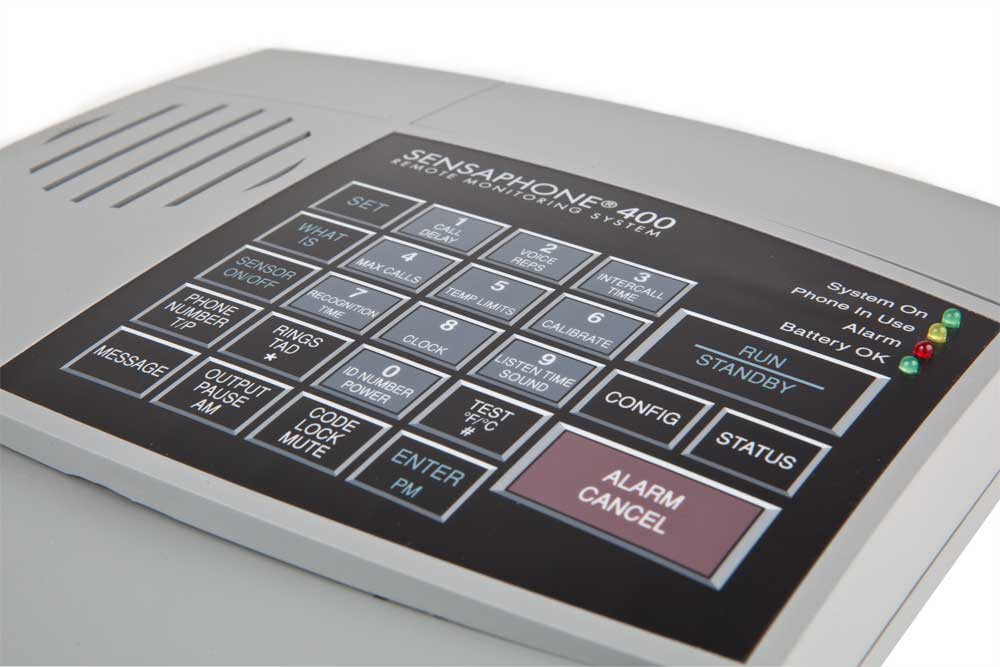

Keypad and speaker for local programming
Easy voice prompted programming
Password Protected
LEDs

Alarm Notification:

The Sensaphone 400 provides four custom voice phone calls

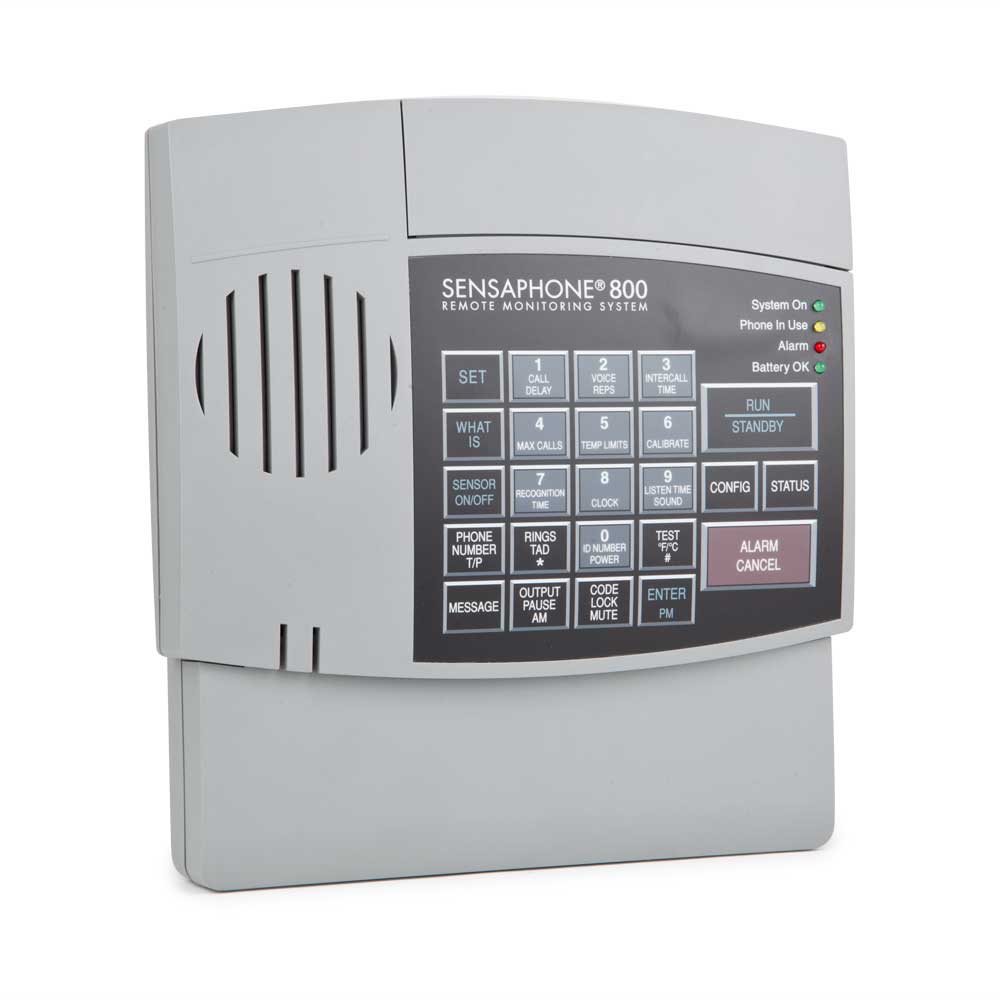

The Sensaphone 800 provides eight custom voice phone calls

Power Supply:

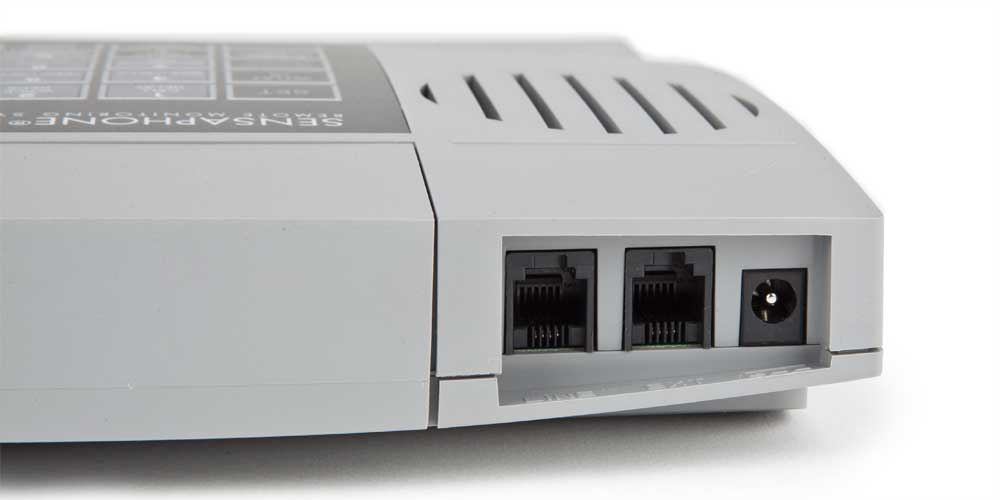

Plug in power supply also monitors for power failures

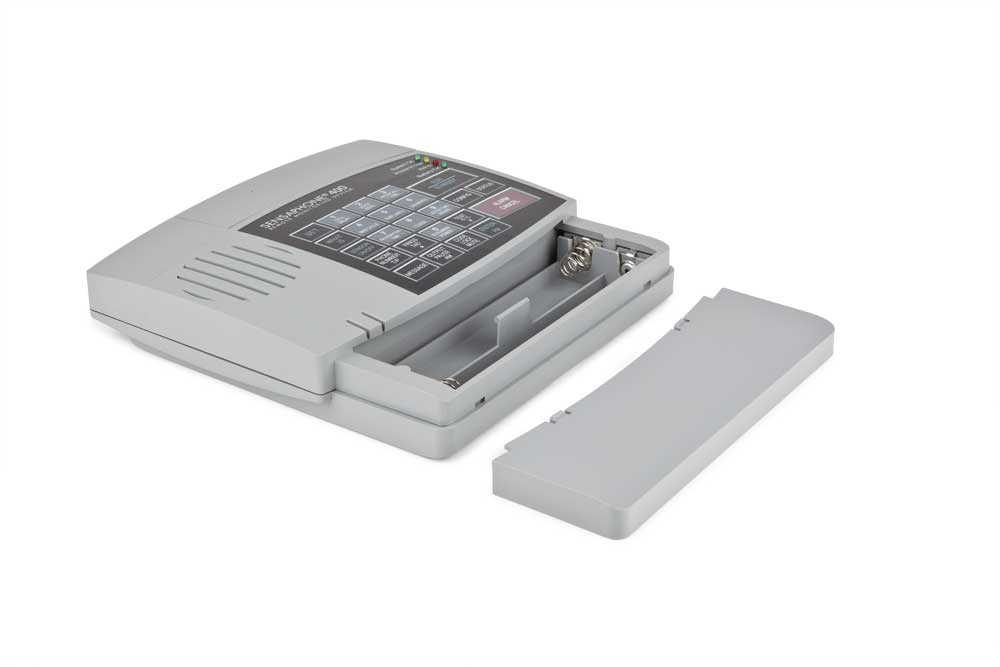

Internal battery backup (requires 6 'C' cell batteries)

Physical:

2.1 x 7.8 x 8.8" | 53 x 198 x 223mm
2lbs | .9kg

Enclosure:

Indoor-rated plastic housing suitable for wall or desktop installation.

Warranty:

1 Year

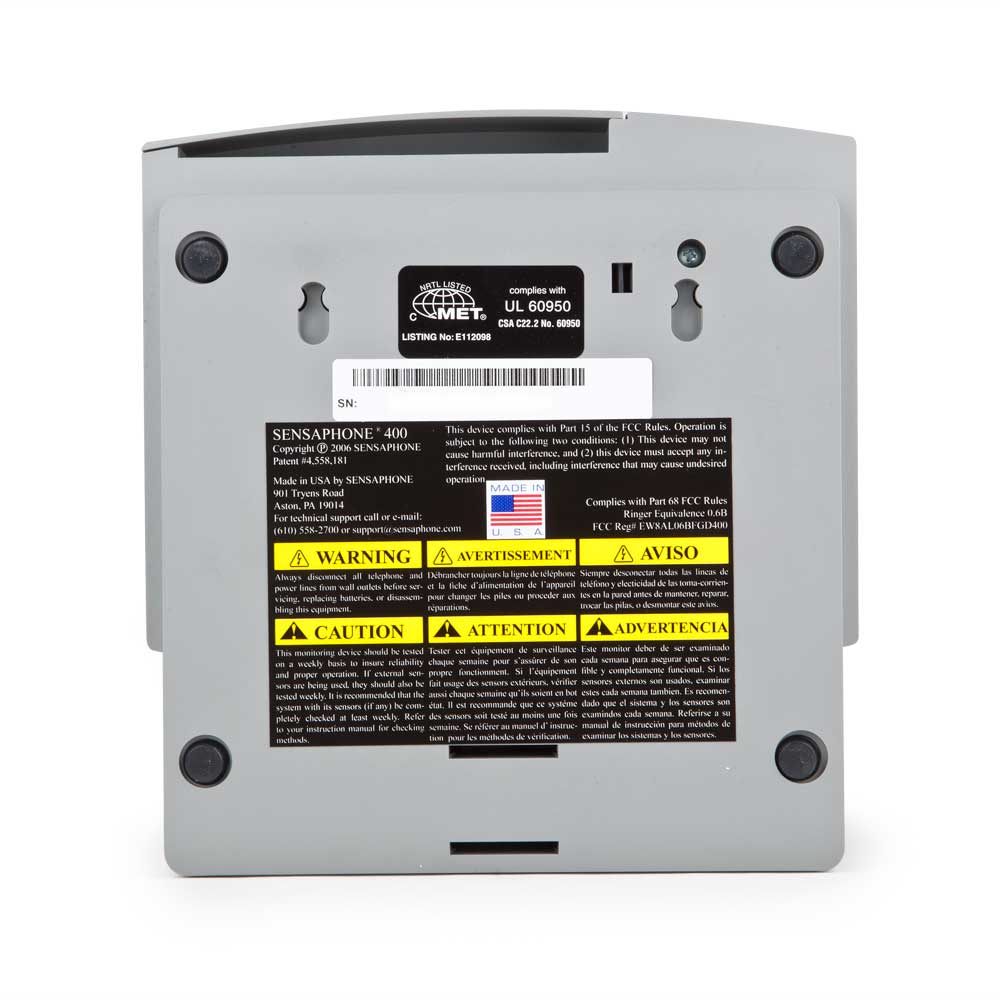

Standards:

FCC Part 15 Class B, USA Emission Standards
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
ICES-003 Issue 4 Class B, Canadian Emission Standards
Complies with CS-03 Issue 8, Canadian Telecommunications Standards
NRTL Listed for compliance to UL/CSA 62368-1 Safety Standards
RoHS Compliant

Battery Backup Time:

24 hours
