Product Description
- Ethernet-based device management for server rooms, data centers, and IP devices
- PC-based management software lets users view status, make changes and review history
- Receive voice alerts and alarm notifications through standard Ethernet/telephone connections
- Program customizable voice alerts, e-mails, and text-message notifications

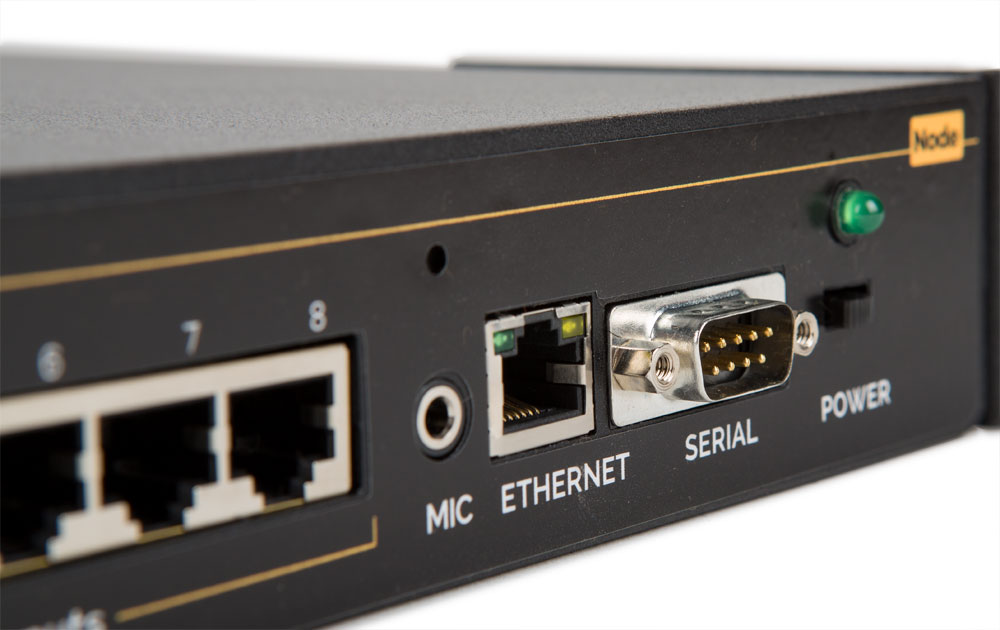

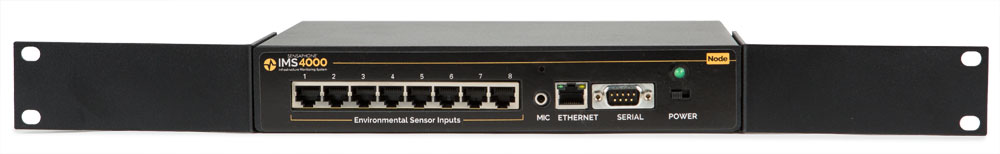

- Connect up to 31 expansion nodes to monitor additional inputs across LANs and WANs
- Included relay output can switch local devices on/off based on alarm activity
- Internal microphone and external microphone jack monitor for audible alarms
- Plug-and-Play Wireless Sensors make network setup and expansion easy
- Made in USA
A Complete, Reliable Monitoring Solution for Your Data Center

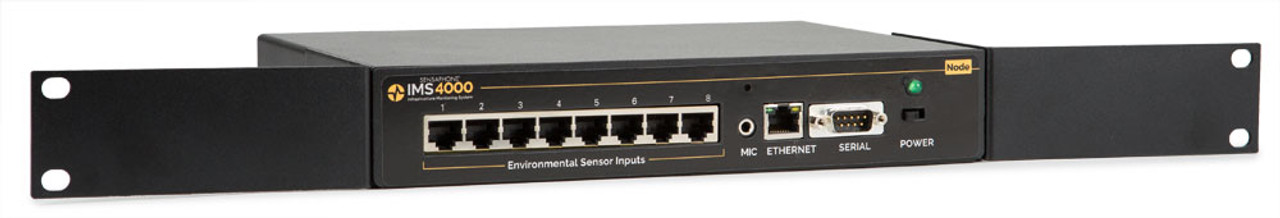

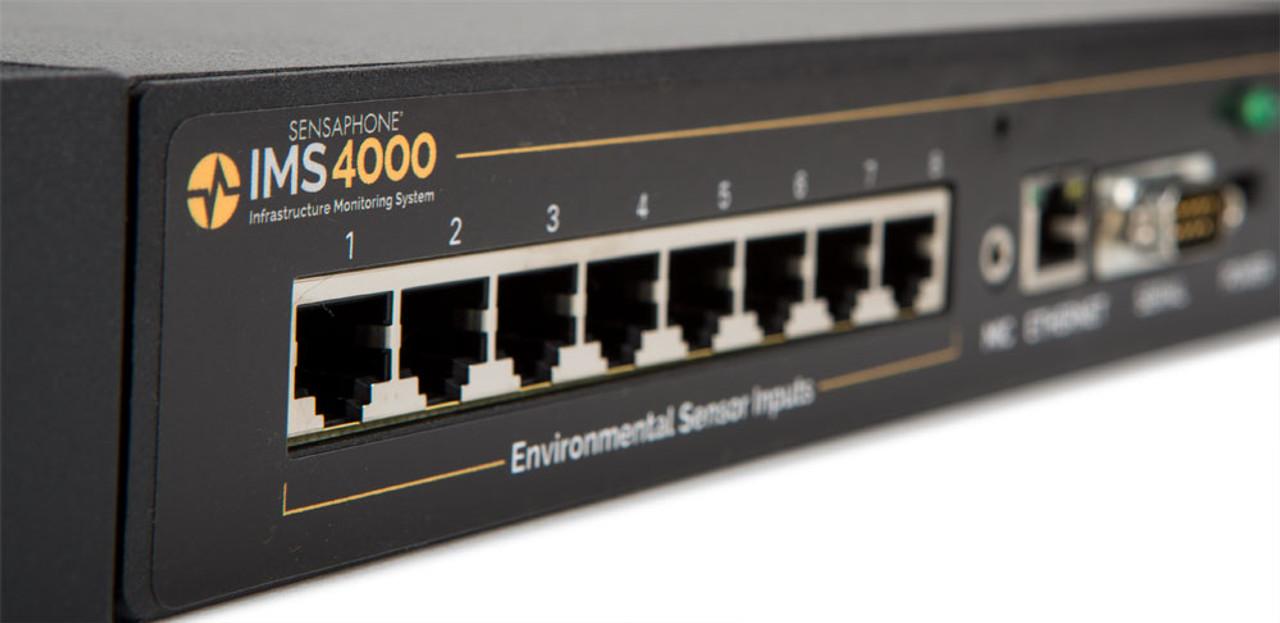

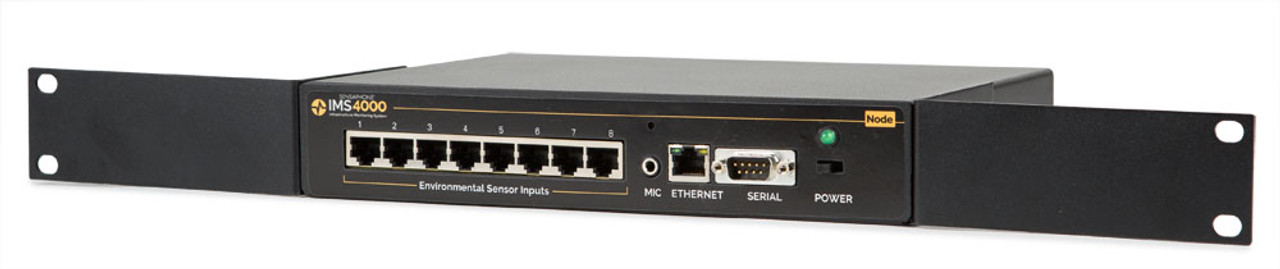

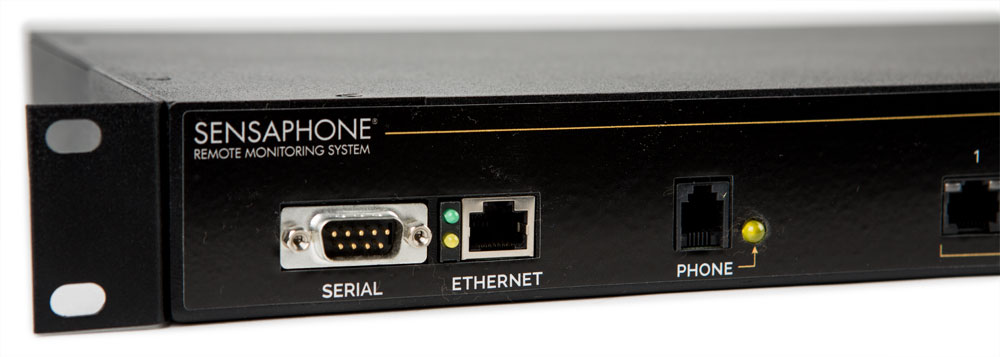

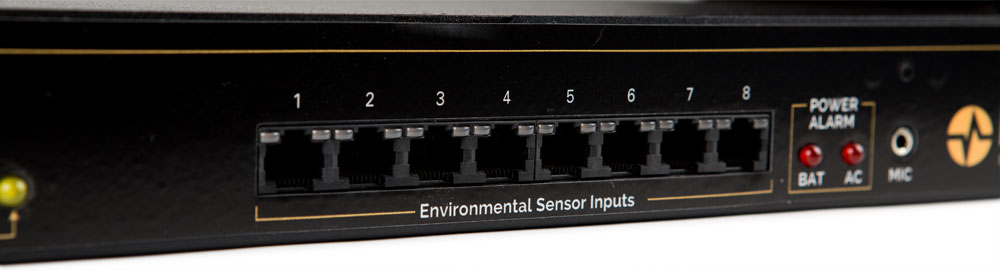

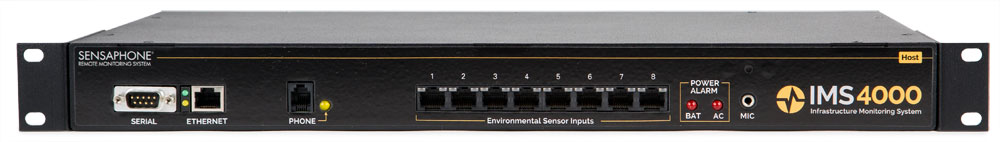

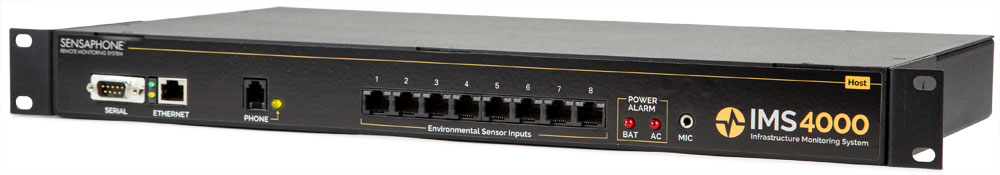

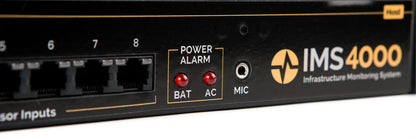

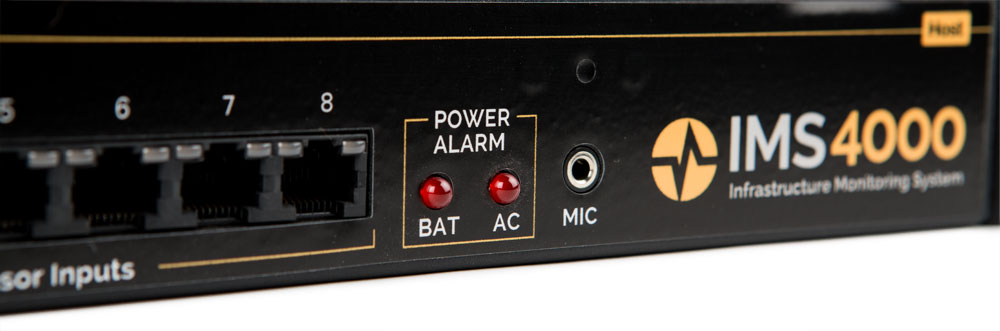

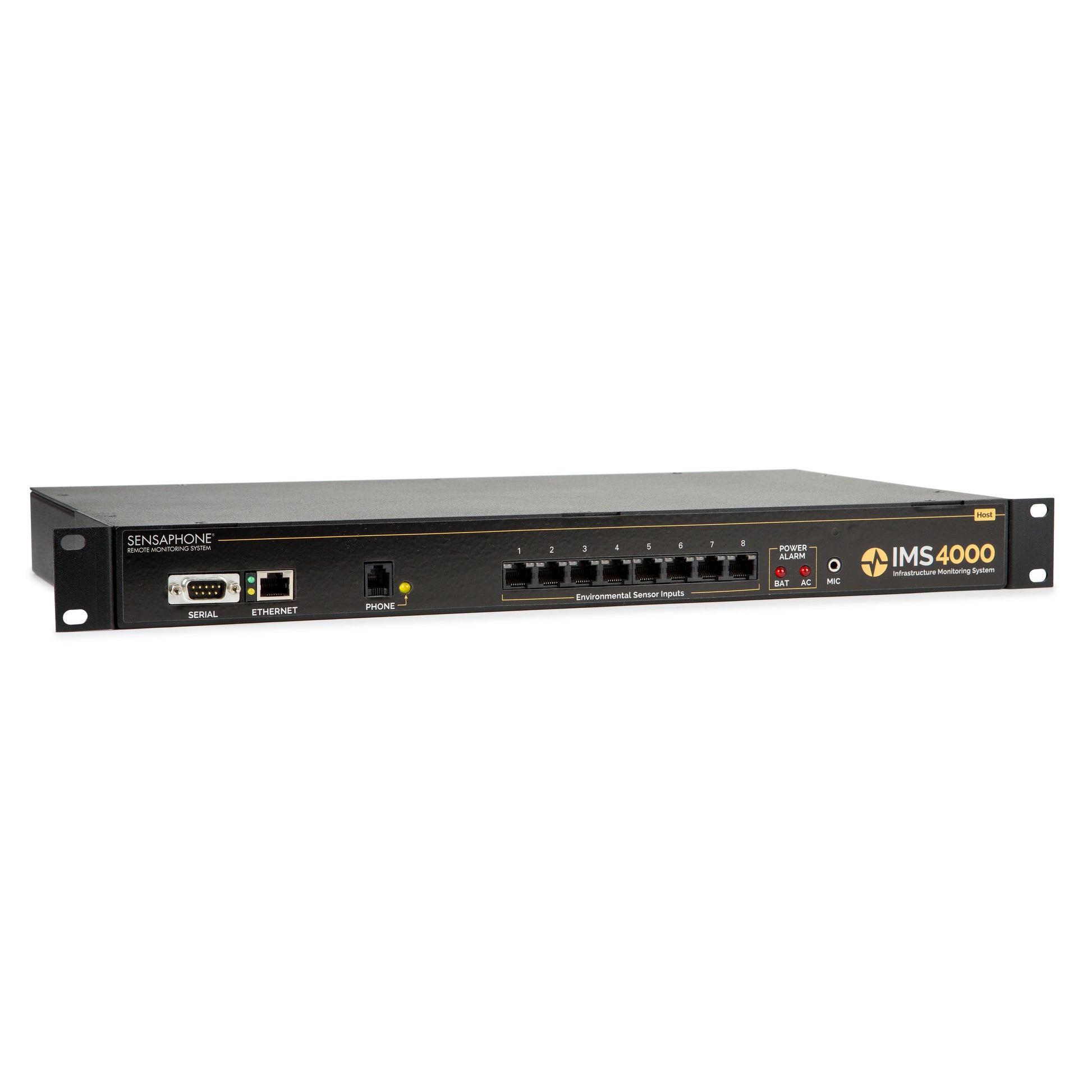

The Infrastructure Monitoring System (IMS-4000E) is the answer for web-based monitoring of critical environmental conditions across your entire infrastructure. Featuring a rack-mountable host, integrated voice dialer and reliable solid-state storage; this simple-to-install package is ideal for both small rooms and large data centers. Each sensor input features LEDs to indicate status while alarm LEDs show when power, IP, or battery alarms have been triggered.
- INCLUDED: Internal rechargeable battery backup system provides 3.5 hours of continuous monitoring and alerts in the event of a power outage
- INCLUDED: Built in battery backup
- INCLUDED: Power failure monitoring
- NO MONTHLY FEES
Tech Specs
Communication Method:
Ethernet, Phone Line
Number of Inputs:
8 Standard, Expandable to 256
Input Types:
IMS Solution
Remote Access:
ConsoleView software and/or website to access status and programming
Local Access:
LEDs to show ethernet connectivity, and power alarms
Alarm Notification:
64 User profiles with 8 contacts per profile - any combination of e-mail, text message, SNMP trap, or voice phone calls
IP Monitoring:
Up to 64 network devices or servers per host or node, 2,048 total
Data Logging:
250,000 samples (include data, date, and time), 1 second to 1 month sampling rates, all sensors, battery and power
Supported Protocols:
HTTPS, SMTP, and SNMP-MIB with traps, GET, GETNEXT, and SET
Power Supply:
Plug in power supply also monitors for power failures
Built in battery backup
Built in battery backup
Physical
17 x 1.75 x 10" | 482 x 44 x 241mm
7.4lbs | 3.3kg
7.4lbs | 3.3kg
Warranty:
3 Years
Standards:
FCC Part 15 Class A, USA Emission Standards
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
UL 62368-1 / CSA C22.2 No. 62368-1
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
UL 62368-1 / CSA C22.2 No. 62368-1
Battery Backup Time:
3.5 hours
Product Videos
Videos Hide Videos Show Videos
Communication Method
Communication Method Ethernet & POTS Telephone Line
Number of Inputs 8, Expandable to 256
Input Types IMS Sensors
