Product Description
Increase cellular signal strength
- Provides improved wireless performance for Sensaphone Cellular devices
- Allows the Sensaphone to be placed into a metal cabinet or other location where cellular reception may not be best
- Comes standard on Sentinel Cellular devices
- Should be mounted 6' away from Sensaphone for best performance

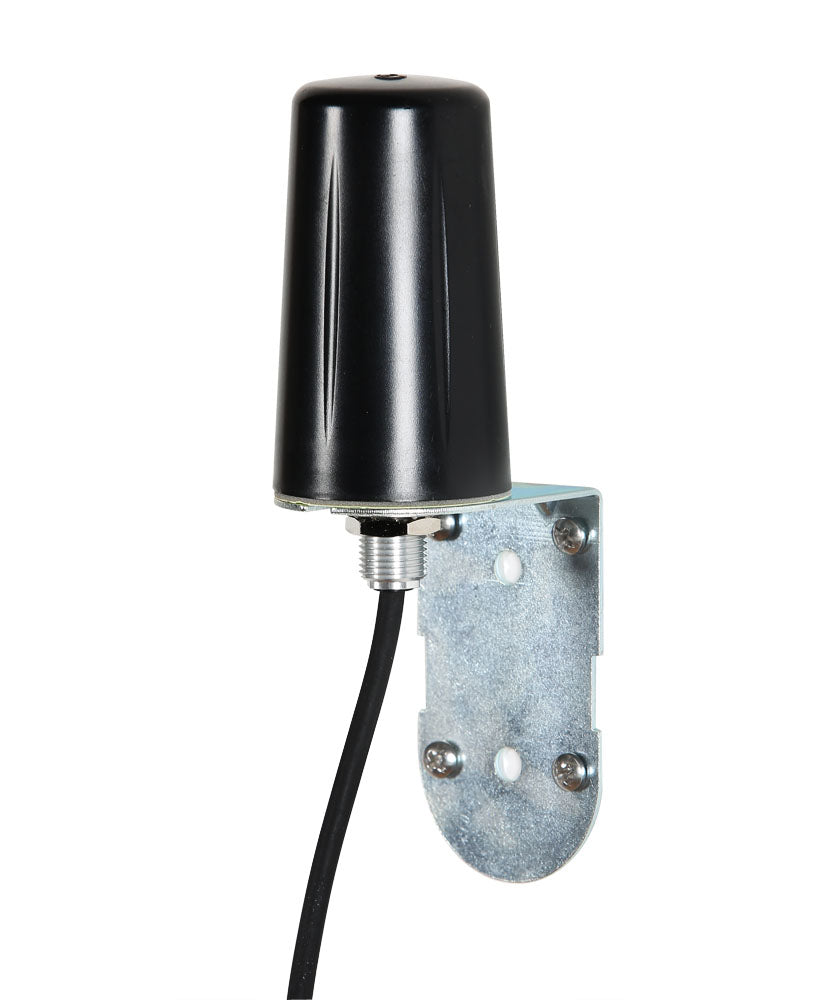

This external antenna provides improved wireless performance for Sensaphone monitoring cellular devices. The included 5m cable allows the antenna to be mounted away from the Sensaphone. A wall/mast mount bracket is standard but it can also be mounted on metal panels or enclosures of suffi cient size. Mount the antenna 6’ or more from the Sensaphone enclosure for best performance.
The antenna is supplied with a convenient adhesive pad and an integrated 5m low loss cable run, the antenna is cost effective to install and adaptable to any install environment.
Technical Specifications
Frequency Bridge: 698-960, 1710-2700
Operational Band: LTE 700, AMPS / GSM850, GSM900, GSM1800, PCS1900, 3G UMTS, 2.4GHz WIFI, 2.6GHz LTE
Pattern: Omni-directional
Cable Length: 16.4' | 5M
Operating Temperature: -40° to 176°F | -40° to 80°C
Dimensions: 3.22 x 1.89" | 82 x 48mm
Notes: Standard with Cellular Sentinel & Cellular Sentinel Pro models
