Product Description
Carbon Dioxide monitoring
- Measures carbon dioxide from 0 to 2,000 PPM
- Accurate to ±30 PPM
- Set high and low limits by programming the Sensaphone
- Sensaphone will go into alarm when carbon dioxide level exceeds limit
- Highly accurate and reliable Non-dispersive Infrared (NDIR) with state-of-the-art digital linearization and temperature compensated circuitry

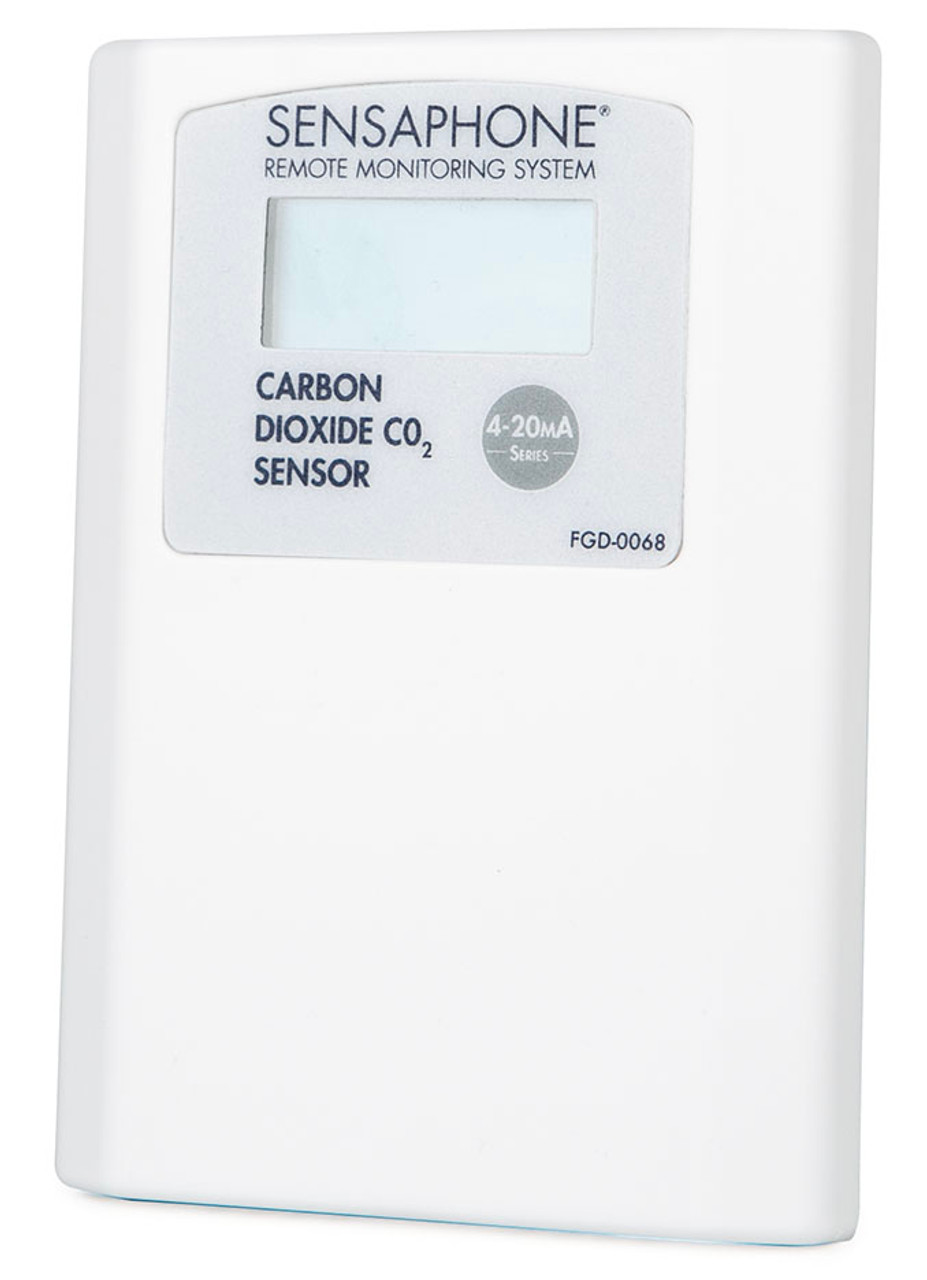

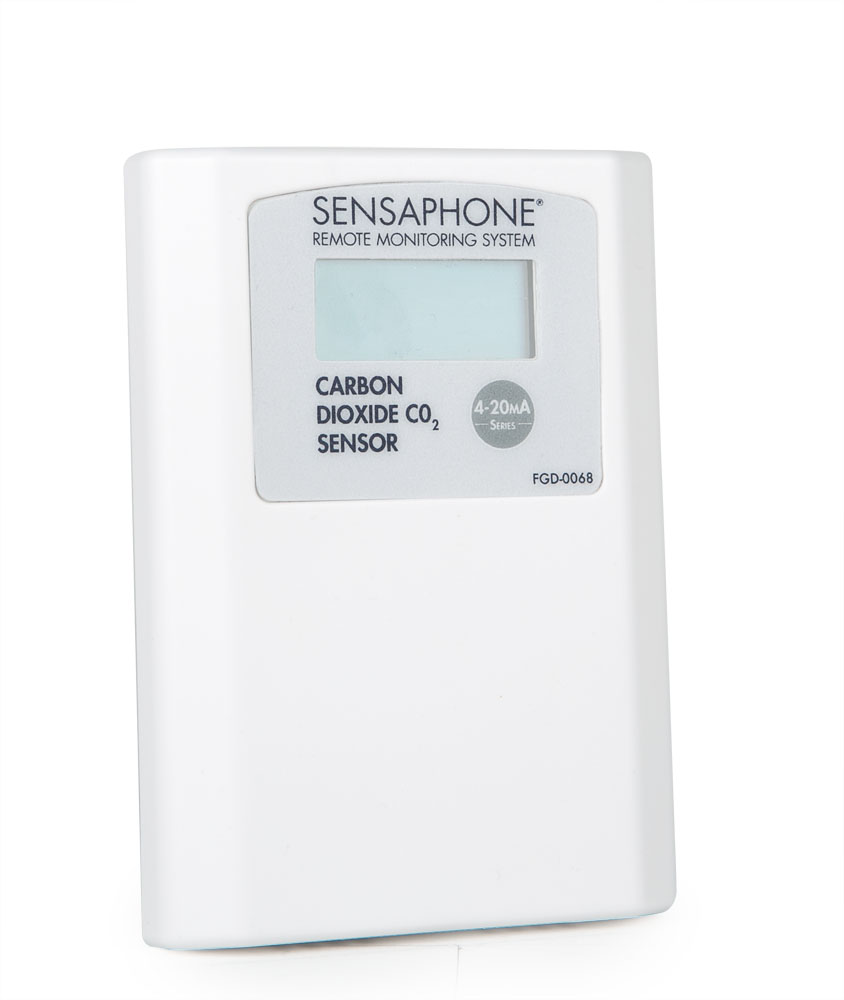

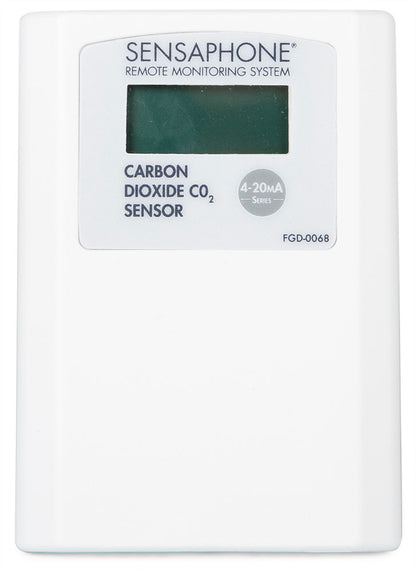

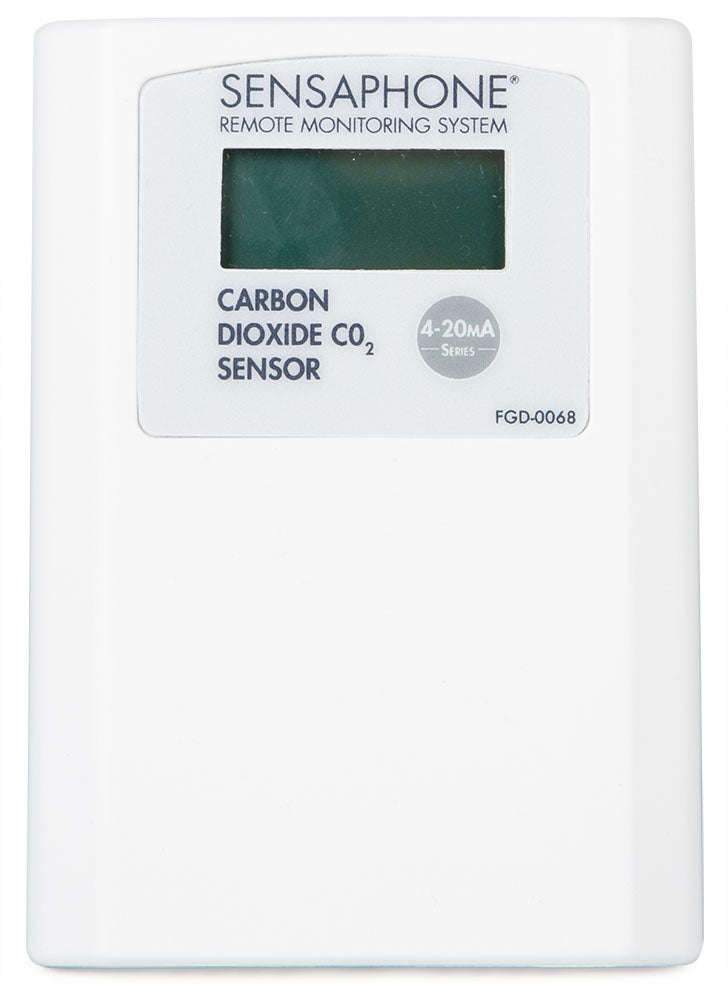

The Sensaphone Carbon Dioxide Sensor will measure and provide real time carbon dioxide values to any Sensaphone that accepts a 4-20mA signal. When the carbon diooxide level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current carbon dioxide value. The sensor can be programed to detect carbon diooxide levels from 0 to 2,000 PPM. The low profile enclosure allows the sensor to be mounted to a single gang electrical box or directly to a wall. A LCD displays the PPM and menu parameters. A 24V DC power supply is required to power the sensor.
Technical Specifications
Carbon Dioxide Range: 0 to 2,000PPM
Accuracy: 50PPM
Connection: Harwired
Housing: White plastic
Dimensions: 4.6 x 3.3 x 1.2" | 116 x 84 x 30mm
Sensor Series: 4-20mA Series
Notes: Requires a 24VDC power supply FGD-0070
Downloads
4-20mA Type Carbon Dioxide (CO2) Sensor Sales Brochure
4-20mA Type Carbon Dioxide (CO2) Sensor Instructions
