Product Description
Measure and receive alarms on dew point
- User selectable dew point measuring ranges: -22° to 122°F (-30° to 50°C), -4° to 104°F (-20° to 40°C), or 32° to 122°F (0° to 50°C)

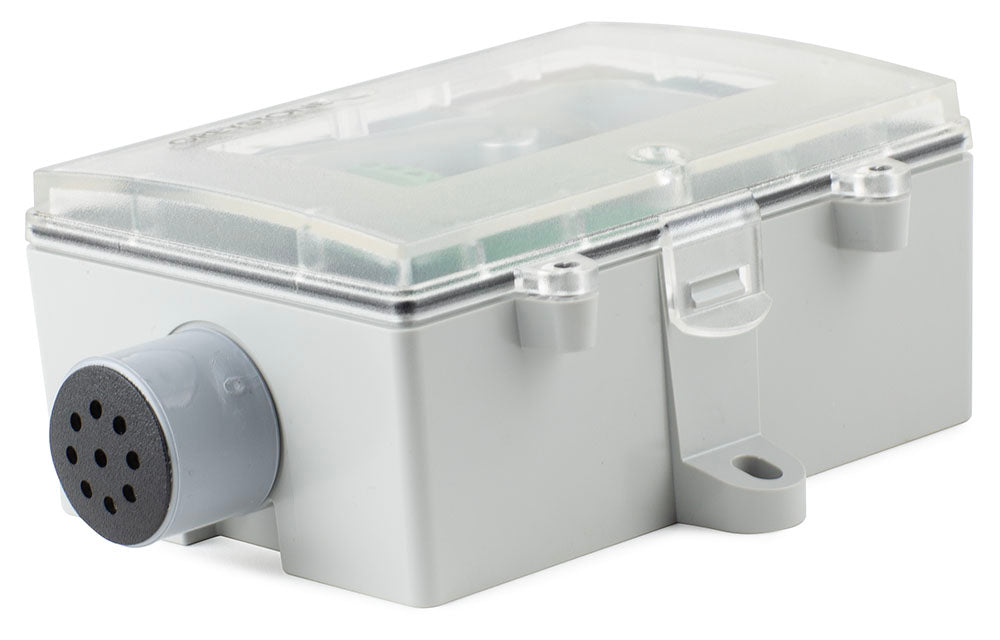

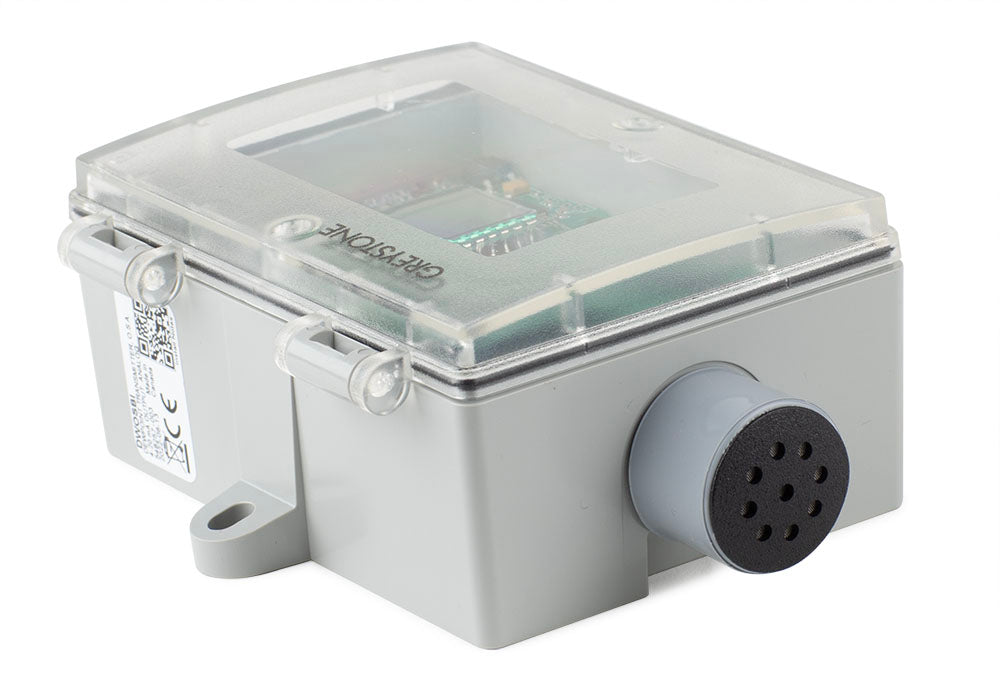

- Weatherproof enclosure allows device to be placed outdoors
- Set high and low limits by programming the Sensaphone
- Sensaphone will go into alarm when dew point exceeds limit

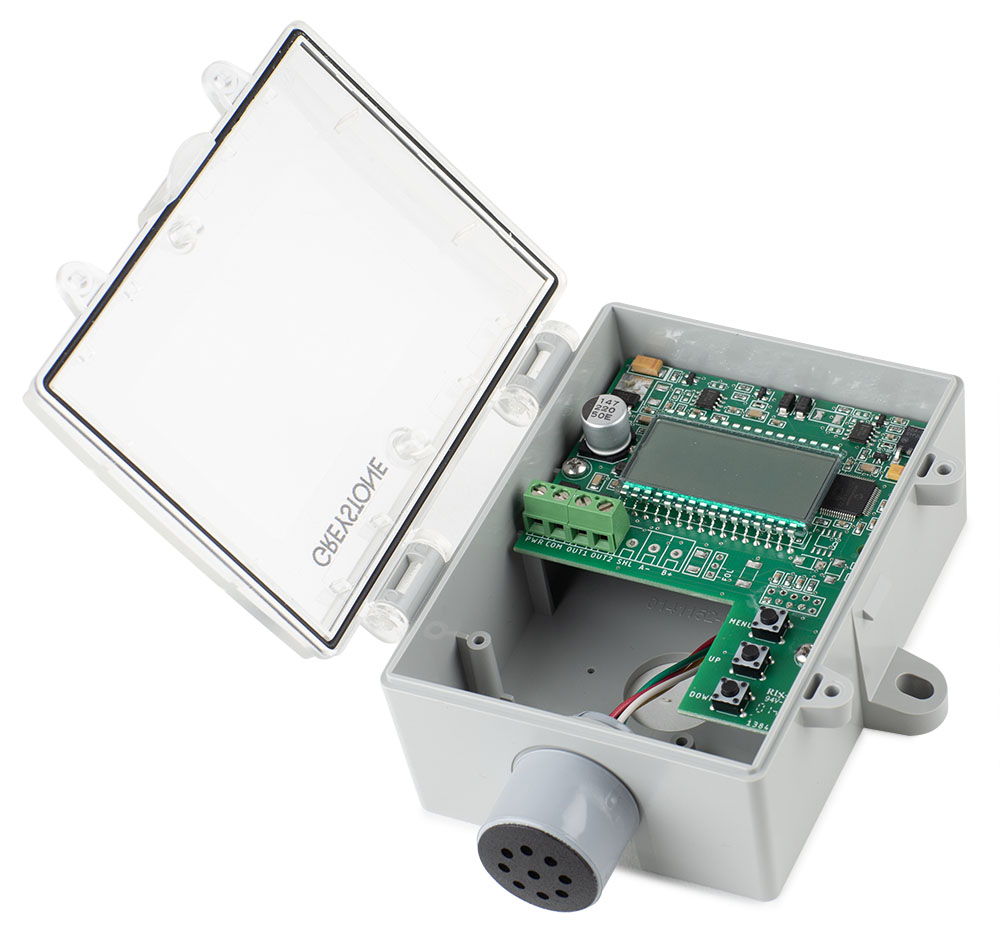

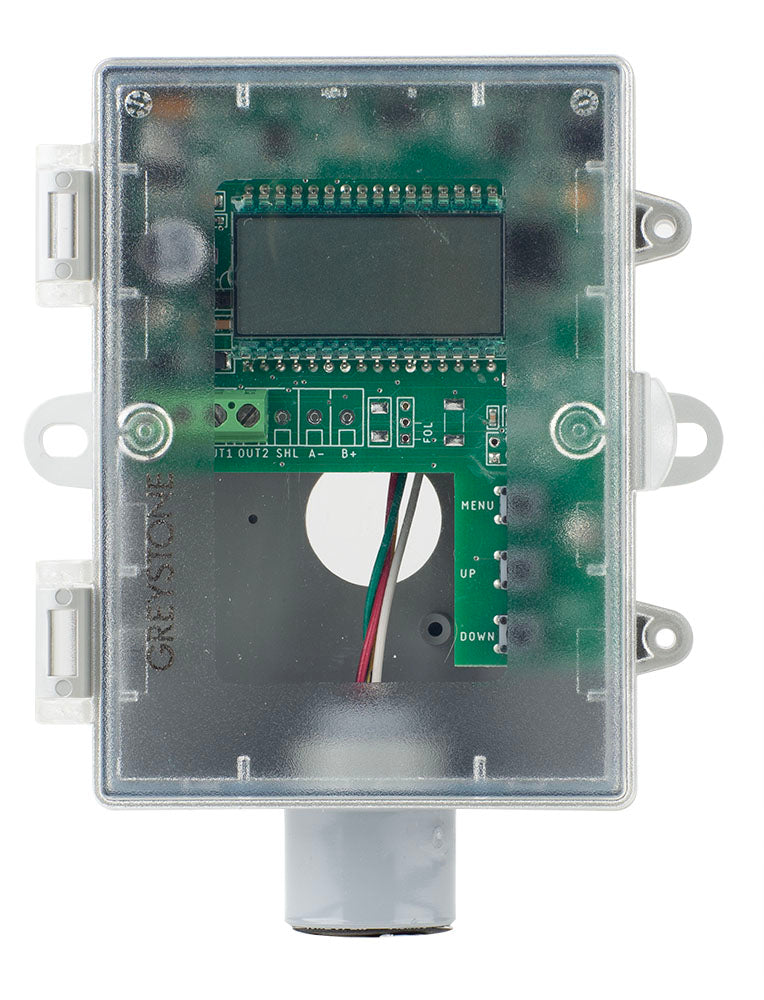

The Sensaphone Dew Point Sensor will measure and provide real time dew point values to any Sensaphone that accepts a 4-20mA signal. When the dew point level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current dew point value. The sensor comes enclosed in a weatherproof enclosure that is suitable for use in outdoor environments. A 24V DC power supply is required to power the sensor.
Technical Specifications
Temperature Sensor Type: NTC Thermistor
Measurement Range: Relative Humidity: 0 to 100 %RH, Dry Bulb Temperature: -30° to 50°C (-22° to 122°F)
RH Sensor Type: Thermoset polymer based capacitive
Calculated Values:
Dew Point Temperature: -30° to 50°C (-22° to 122°F)
Wet Bulb Temperature: -30° to 50°C (-22° to 122°F)
Enthalpy: 0 340 kJ/kg (0 146 BTU/lb)
Accuracy:
Relative Humidity (RH): 2% RH, 10 to 90%RH @ 25°C
Dry Bulb Temp.(T): 0.2°C (0.4° F) / 0° to 50°C (32° to 122°F)
Dew Point Temp. (Td): 1.0°C (1.8°F) @ 40%RH / 25C
Output Signals: 4-20mA (x2)
Output Impedence: 500 max for current (@ 24 Vdc), 10 K min for voltage
Signal 2: Dew Point Temperature, Wet Bulb Temperature, or Enthalpy (field selectable), Td Range 1 = -30° to 50°C (-22° to 122°F), Td Range 2 = -20° to 40°C (-4° to 104°F)
Signal 1: Dry Bulb Temperature (field selectable range), T Range 1 = -30° to 50°C (-22° to 122°F), T Range 2 = 0° to 50°C (32° to 122°F)
Power Supply: 20 to 27 VDC
Consumption: 50 mA max @ 24 VDC
Operating Temperature: -22° to 122°F | -30° to 50°C
Operating Humidity: 0 to 95 %RH non-condensing
Wiring Connections: 14 to 22 AWG terminal block
Dimensions: 5.7 x 3.95 x 2.5" | 145 x 100 x 64mm
Weight: 11.3 oz | 320 gm
Enclosure Material: Grey polycarbonate, UL94-V0, IP65 (NEMA 4X)
Enclosure Rating: IP65 (NEMA 4X)
Dimensions: 4.43 x 4.58 2.11" | 112.5 W x 116.5 H x 53.7mm D
