Product Description
Measure static or differential pressure
- Measures differential or static pressure
- Switch selectable unidirectional or bidirectional mode

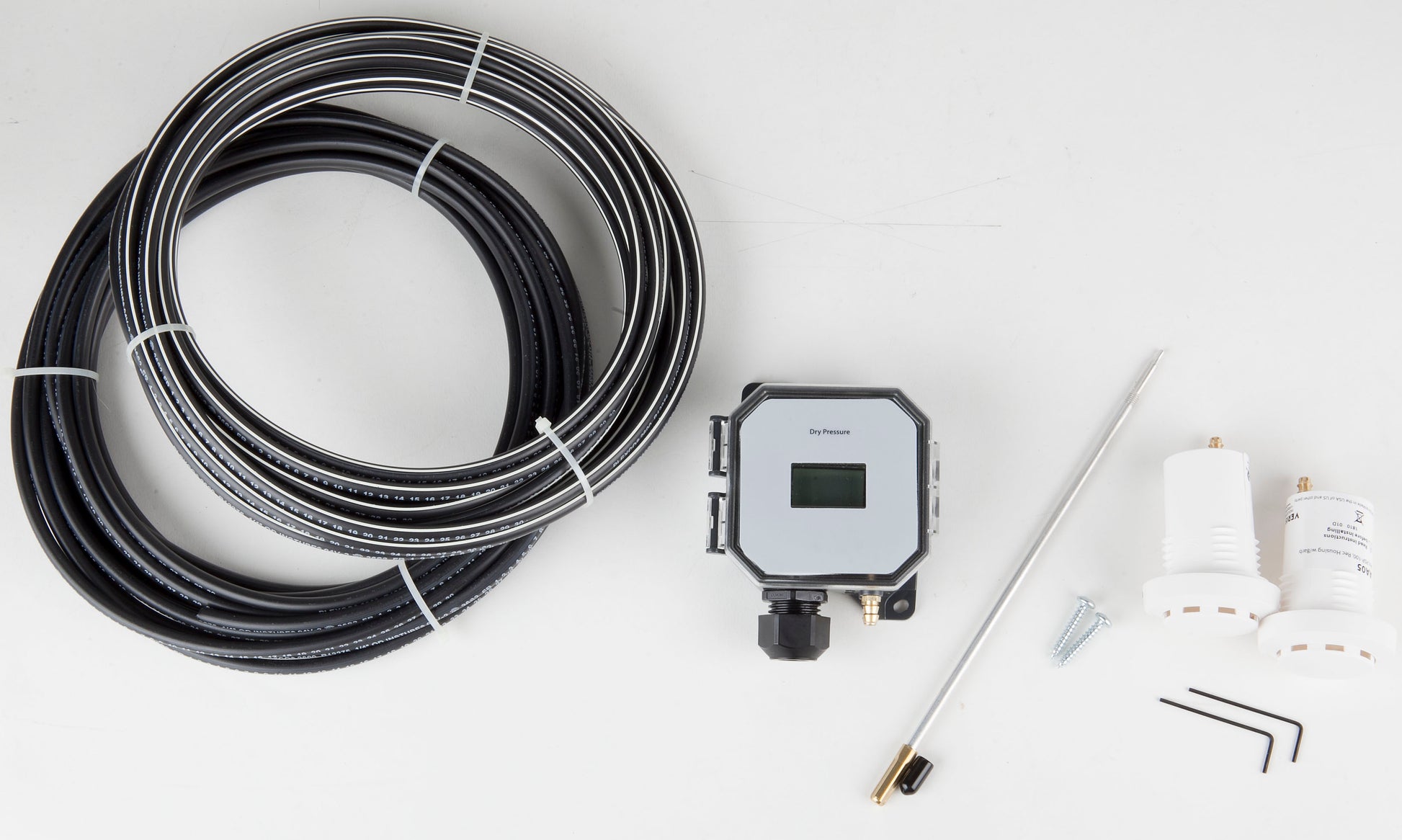

- Includes probes and tubing for mounting
- Set high and low limits by programming the Sensaphone
- Sensaphone will go into alarm when pressure level exceeds limit

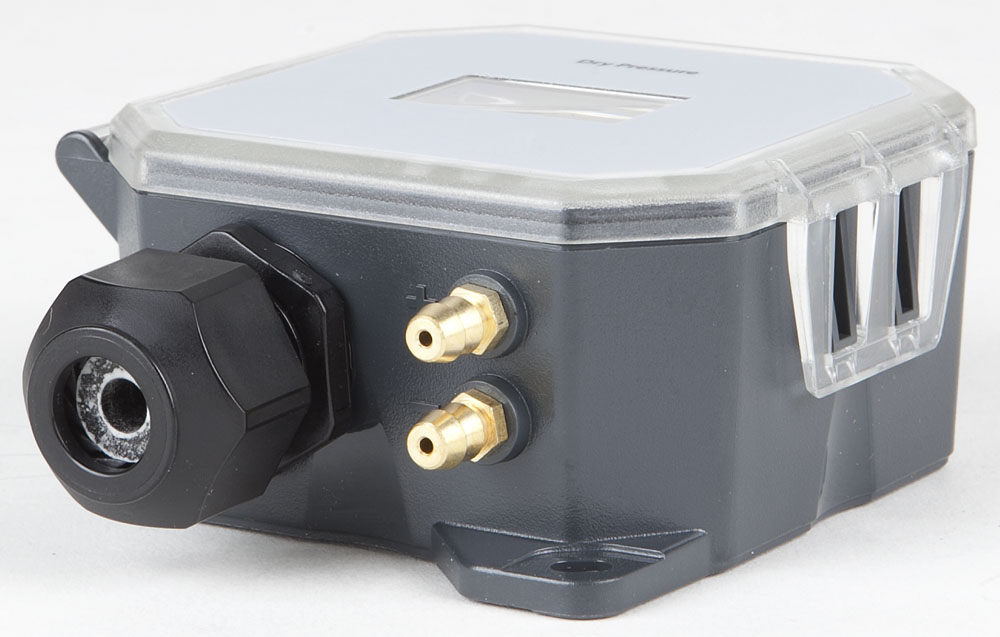

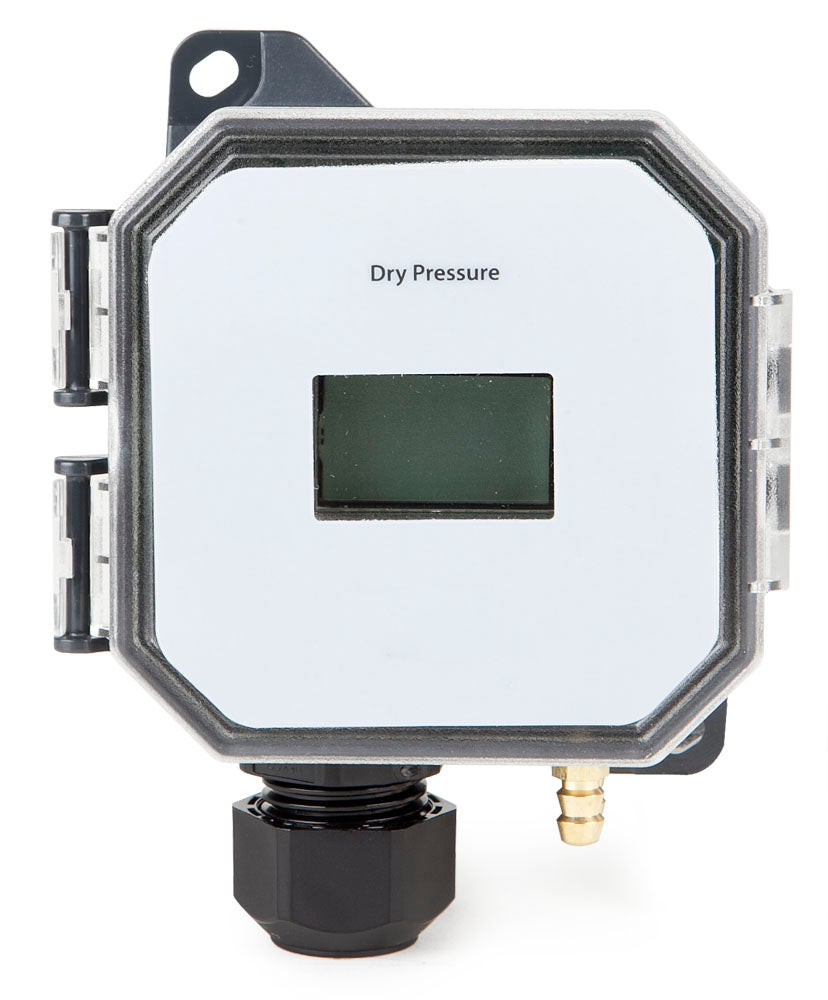

The Sensaphone Differential Air Pressure Sensor will measure and provide real time differential or static pressure values to any Sensaphone that accepts a 4-20mA signal. When the pressure level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current differential or static pressure value. The high accuracy digital sensor maintains calibration, reduces callbacks and provides an excellent tolerance to overpressure and vibration. Monitoring for positive and negative pressures provides application versatility and the LCD is ideal for set-up, troubleshooting, and measuring. A 24V DC power supply is required to power the sensor. Choose between a wall or duct mount sensor.
Technical Specifications
Media Compatibility: Dry air or inert gas
Input Power: 2-wire, loop-powered 4-20mA
Mode: Unidirectional or bidirectional, switch selectable
Pressure Ranges: Uni Directional: 0.1/0.25/0.5/1.0/2.5/5/10 W.C. 25 Pa/50 Pa/100 Pa/250 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable
Bi Directional: 0.1/0.25/0.5/1.0/2.5/5/10 W.C. 25 Pa/50 Pa/100 Pa/250 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable
Dimensions: 3.3 x 4.5 x 2.2" | 84mm x 114mm x 55mm
Sensor Series: 4-20mA
Notes: Requires a 24VDC power supply FGD-0070
