Product Description
Monitor Humidity Levels
- Measures humidity from 0 to 95% RH
- Set high or low limit by programming the Sensaphone
- Sensaphone will go into alarm when humidity exceeds limit
- Requires external power supply (FGD-0070)

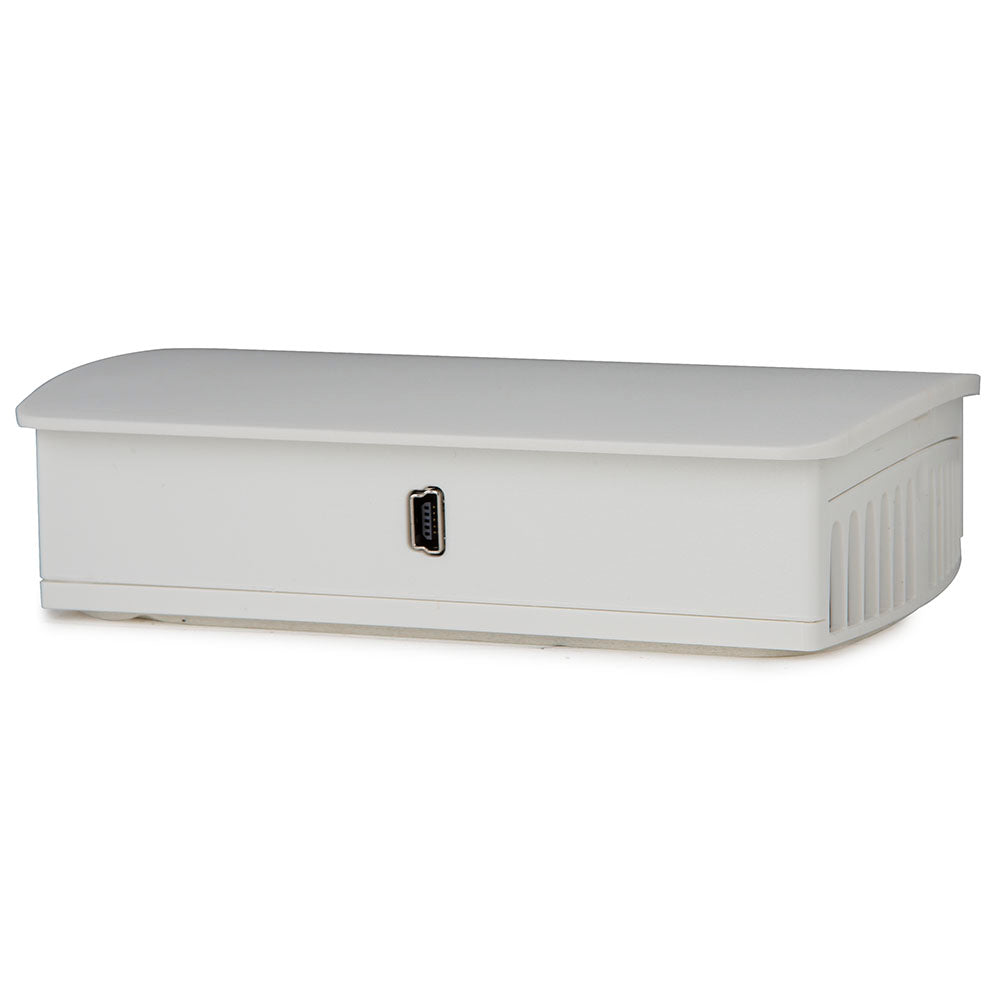

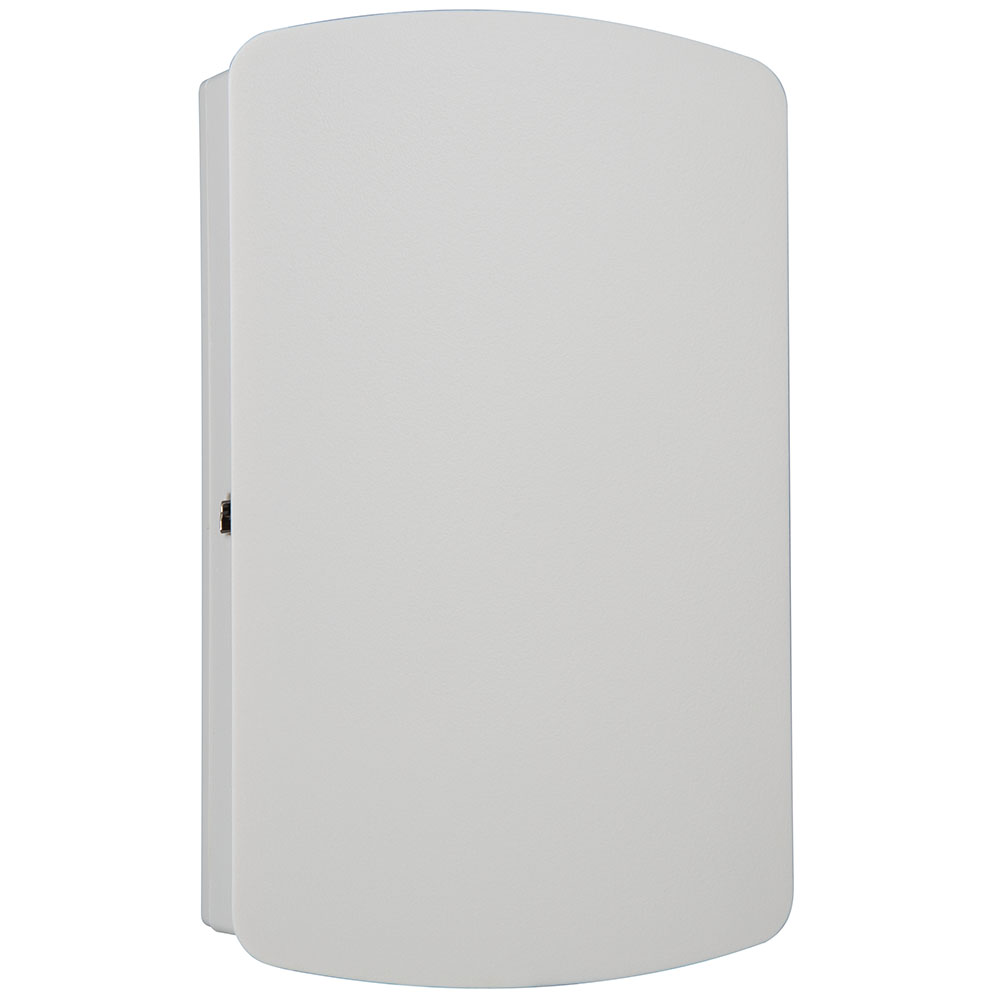

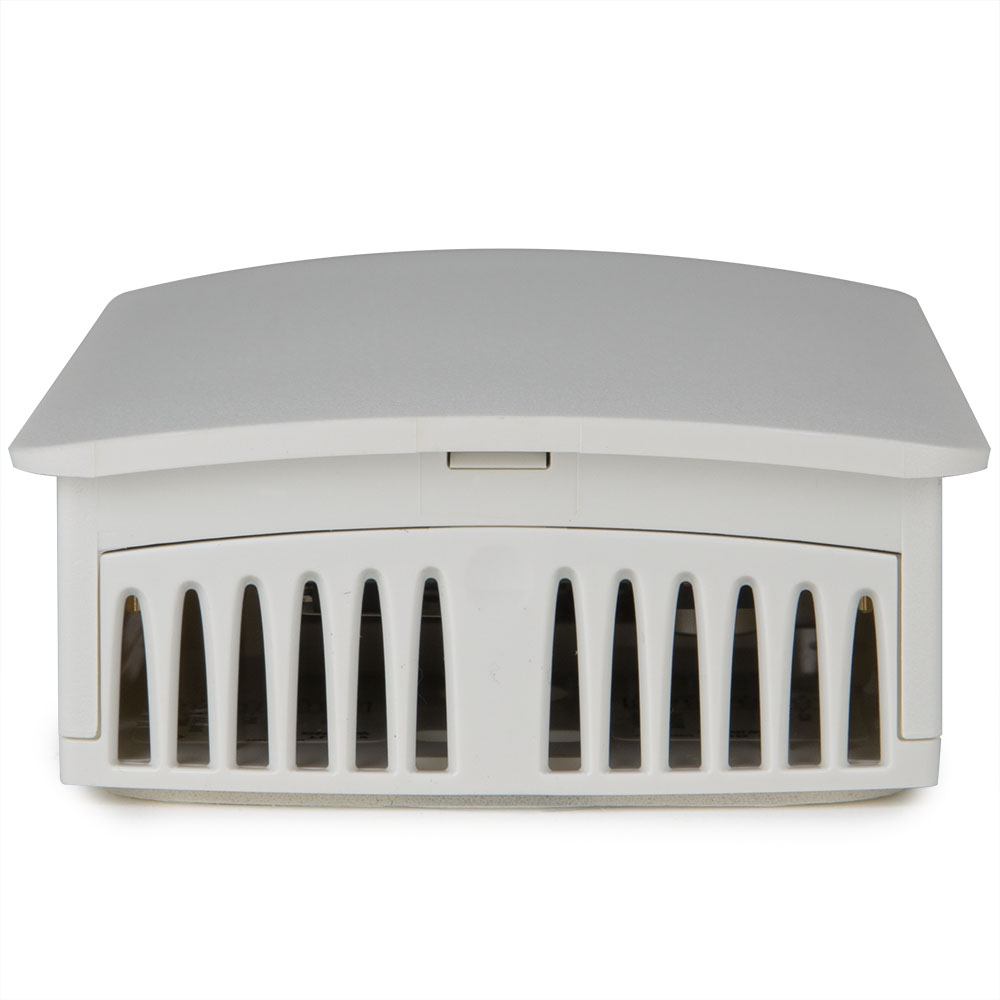

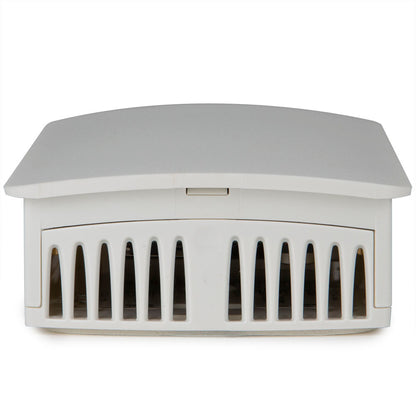

The Sensaphone Humidity sensor will measure and provide real time humidity values to any Sensaphone that accepts a 4-20mA signal. When the humidity level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current humidity value. The sensor can be programed to detect humidity levels from 0 to 95% RH. The low profile enclosure allows the sensor to be placed in a single gang electrical box or mounted directly to the wall. It is ideal for clean indoor applications such as a home, office, museum or hospital. A 24V DC power supply is required to power the sensor.
Technical Specifications
Operating Temperature: 35° to 122°F | 1.5° to 60°C
Humidity: 0% to 95%
Accuracy: +/-3% from 10 to 95%
Connection: Hardwired
Housing: Plastic
Dimesions: 2.8 x 4.5 x 1.2" | 70 x 114 x 29mm
Sensor Series: 4-20mA Series
Notes: Requires a 24VDC power supply FGD-0070
Downloads
4-20mA Type Humidity Sensor Sales Brochure
4-20mA Type Humidity Sensor Instructions
