Product Description
Receive alarms and datalog pressure values
- Measures pressure from 0 to 200 psi, or 0-1,000 psi
- Requires a 24VDC power supply FGD-0070
- Compatible with refrigerants
- Suitable for higher range pressure applications, such as steam boilers and the high side/discharge lines on HVAC equipment which can exceed 500PSI

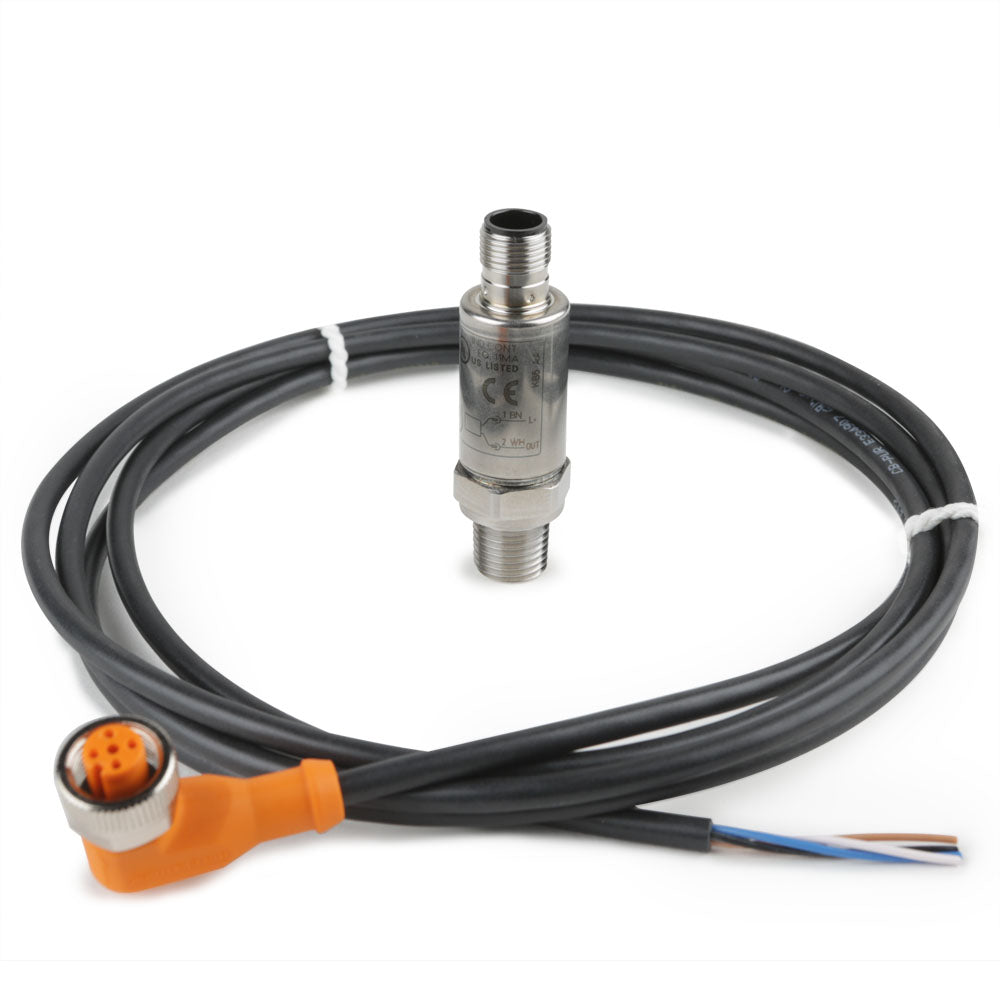

The Sensaphone Pressure Sensor will measure and provide real time pressure values to any Sensaphone that accepts a 4-20mA signal. When the pressure level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current pressure value. The sensor can be programed to detect pressure levels from 0 to 200 PSI. An alarm from the pressure sensor can indicate a problem with a pump, a possible clogged influent line, loss of suction, a downstream clog or perhaps a burst pipe. Any of those failures can cause a pump motor to overheat and warp. A 24V DC power supply is required to power the sensor.
Technical Specifications
Process connection: 1/4-18 NPT
Measuring Range: 0 to 200 psi, 0 to 1,000
Operating Voltage: 8.5 to 36 DC
Output Function: 4-20mA Analog
Accuracy: <0.5
Operating Temperature: -40°F to 194°F | -40°C to 90°C
Protection: IP 67 | IP 69K
Dimensions: 2.63 x .75" | 66.9 x 18.9mm
Cable Length: 6.6' | 2m 22AWG
Notes: Requires a 24VDC power supply
