Product Description
Measure Extreme Temperatures
- Measures temperature from -328° to 248°F | -200° to 120°C
- Two size probes to choose from: 1" or 14"
- Probes include 10' of wire
- Communicates wirelessly with WSG30 base unit up to 300’ away
- Includes two AA batteries
- Optional power supply available

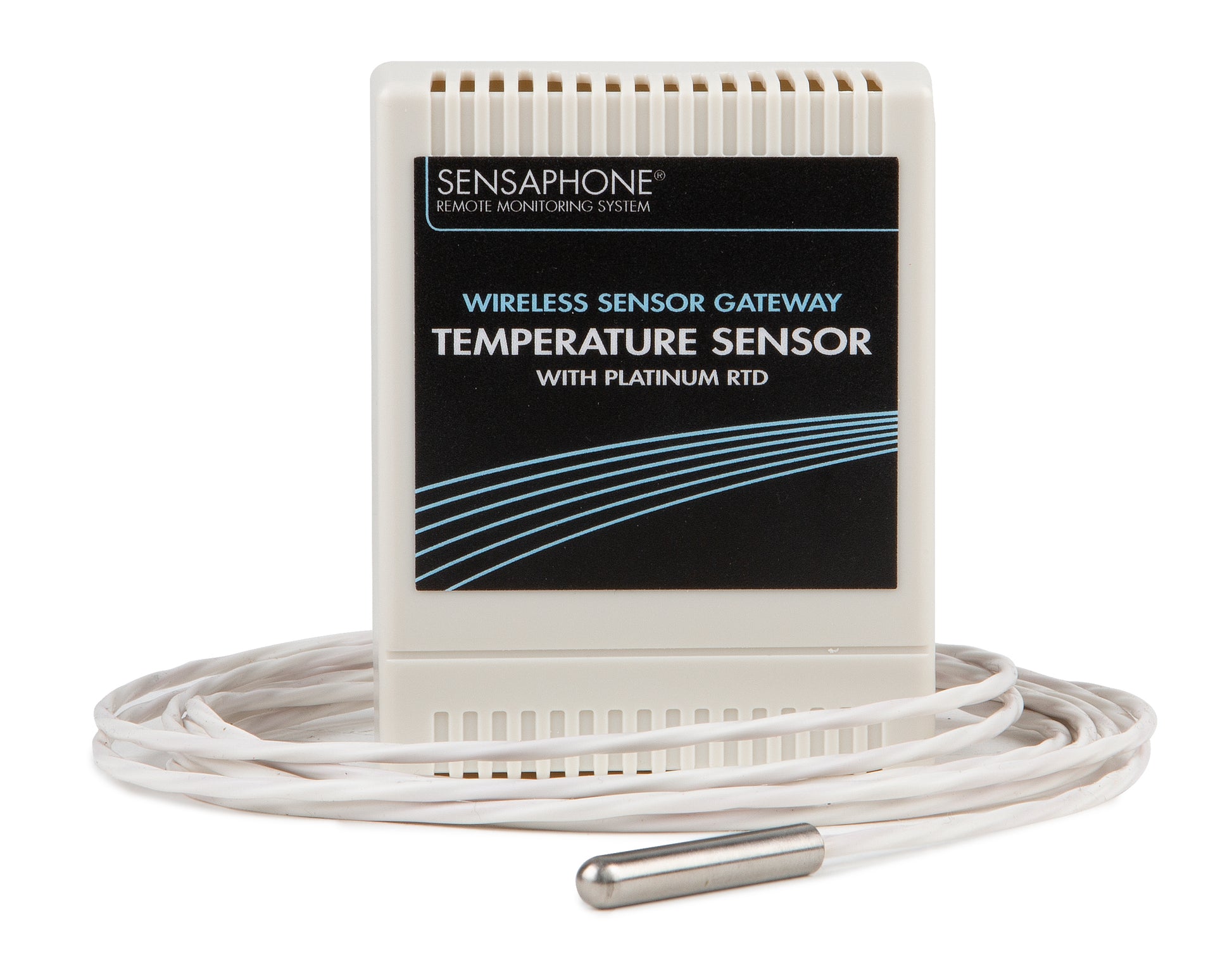

The Wireless Temperature Sensor with RTD Probe is used exclusively with the WSG30 system. It measures extreme air temperature in applications where traditional sensors will fail. The sensor is available with two different sized temperature sensing probes: 1" or 14". The 14” probe is recommended for applications where the sensor cabling cannot be exposed to the cold atmosphere such as monitoring liquid nitrogen. Both probes come with 10’ of wire.
When the temperature falls outside of the WSG30 system’s programmed high or low limit, the user will receive an alarm via text message or email. The sensor includes two AA lithium batteries which will power the sensor for up to two years. An optional plug-in power supply is also available, so the batteries serve as a backup if the main AC power fails. The wireless sensor can be placed up to 300’ away from the WSG30 or further if multiple sensors are used to create a mesh network.
Technical Specifications
Sensor Temperature Range: -328° to 248°F | -200° to 120°C
RTD Element: PT100 - 385 ALPHA - CLASS - B
Wireless Range: 300' | 90m
Connection: Wireless
Housing: Plastic
Dimensions: 3.1 x 3.9 x 1.1" | 79 x 99 x 28mm
Notes: Element tolerance to IEC 60751 edition 2.0, par 5.1.2
