Product Description
Monitor the output of any 4-20mA transducer
- Interfaces with any 4-20mA transducer
- Communicates contact data wirelessly with WSG30 base unit up to 300’ away
- Includes three AA batteries
- Interface provides up to 30mA of current to power 4-20mA transducer

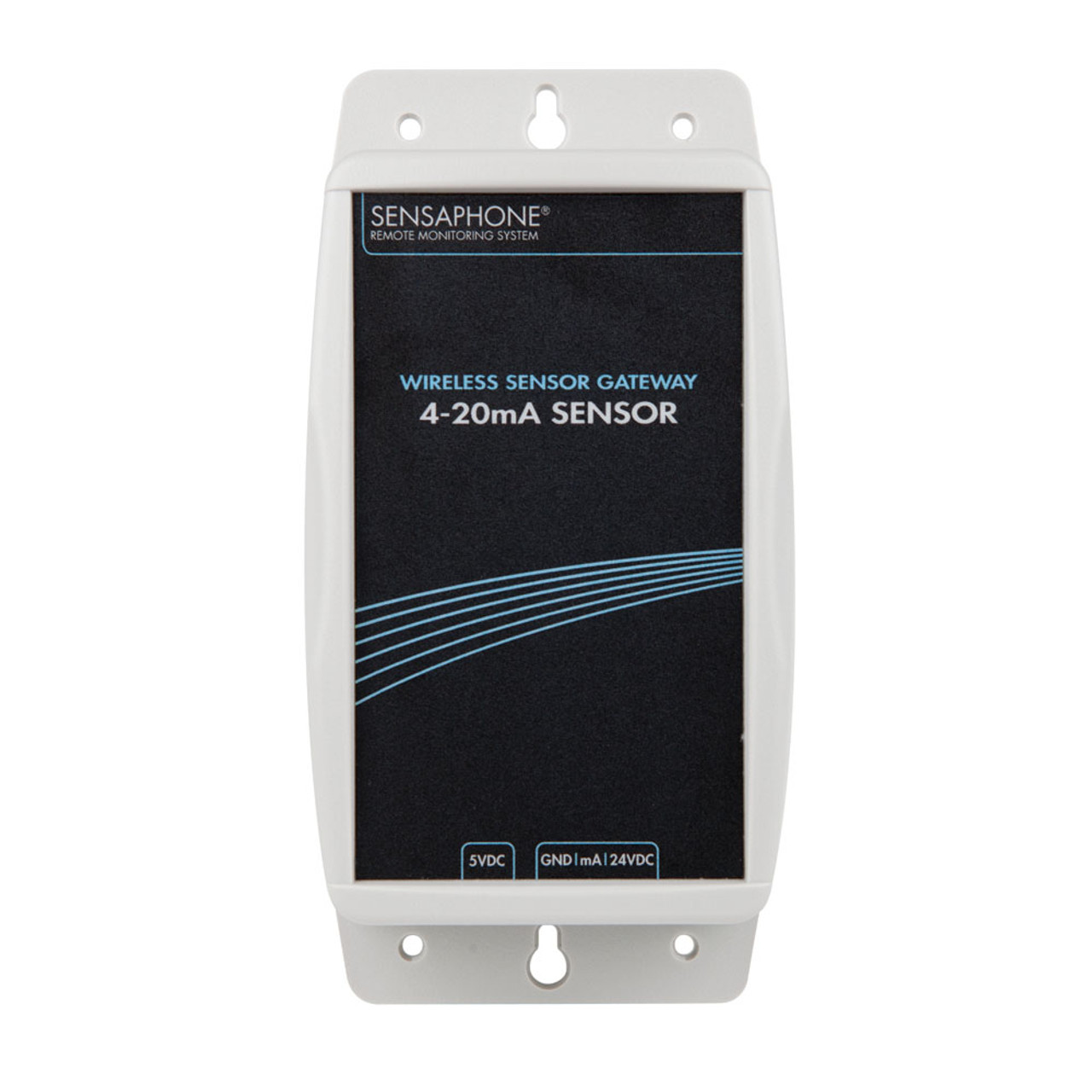

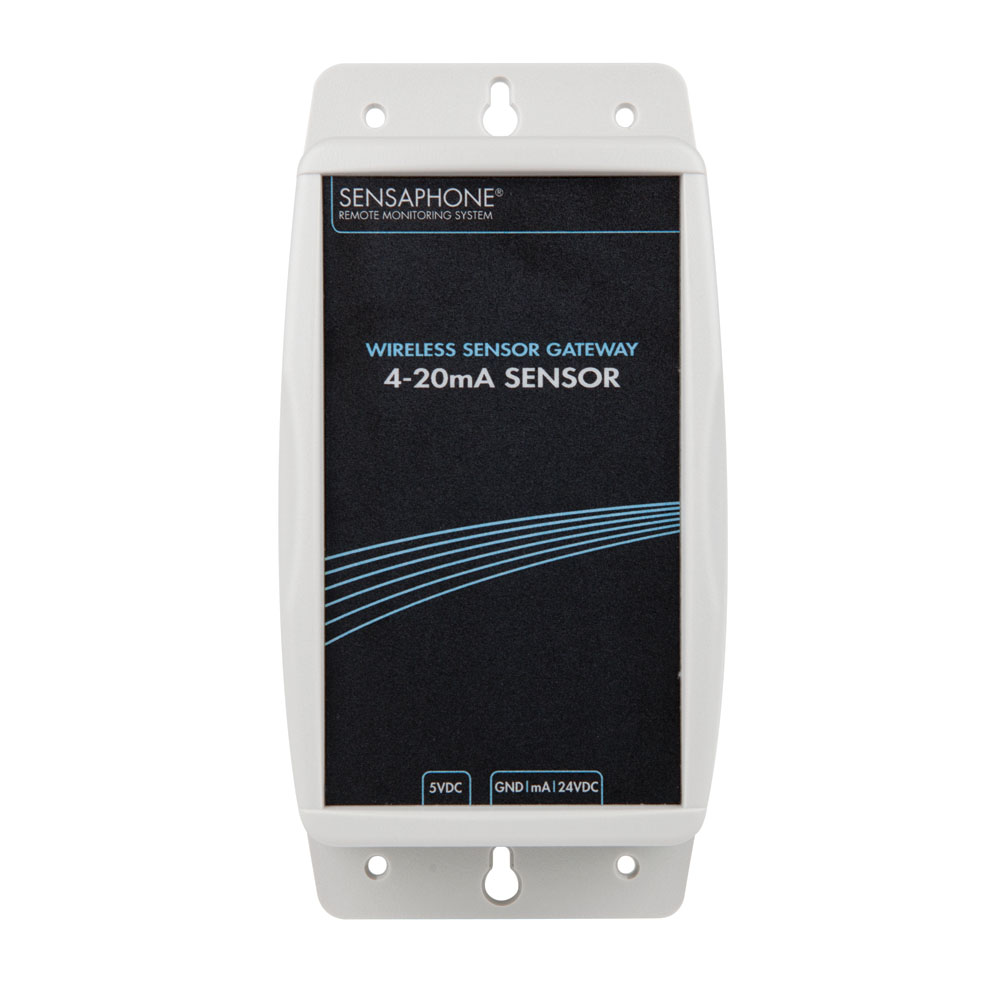

The Wireless 4-20mA Interface is used exclusively with the WSG30 system to interface with any transducer that outputs a 4-20mA signal. The interface will measure and provide real time values to to the WSG30. When the level falls outside of the WSG30’s programmed high or low limit, the user will receive an alarm which displays the current value.
The Wireless 4-20mA interface has an internal 24 VDC power supply that is intended to be used to power the 4-20mA transducer. It can provide up to 30mA of current. The interface includes three AA alkaline batteries which will power the interface and sensor during a power failure. The wireless interface can be placed up to 300’ away from the WSG30 or further if multiple sensors are used to create a mesh network
Technical Specifications
Operating Temperature: 32° to 122°F | 0° to 50°C
Wireless Range: 300' | 90m
Connection: Wireless
Housing: Platics
Dimensions: 6.8 x 3.5 x 1.6" | 173 x 89 x 40mm
Sensor Series: WSG Wirelss
