Product Description
Cloud-Based Monitoring... Without Network Connections
- A supervised internet connection assures the Sentry is online and monitoring at all times
- Store your sensor readings in the cloud to automatically protect against data loss and provide limitless information storage
- Receive alarm notifications through a cellular connection
- Notifies an unlimited number of people by e-mail, text message or voice phone calls in the event of an alarm
- Up to five external sensors monitor temperature, humidity, water and more
- A cellular modem provides operation in locations where an ethernet connection is unobtainable
- Temperature sensing range of -109° to 115°F | -85° to 57°C
- Manage multiple units, make programming changes and access status conditions using a simple, powerful web-based interface
- Low cost subscription includes all online hosting, cellular connection fees, and unlimited text, phone and email alerts
- Contact us before purchasing to confirm cellular coverage
- Cellular modem and SIM card included
- Made in USA

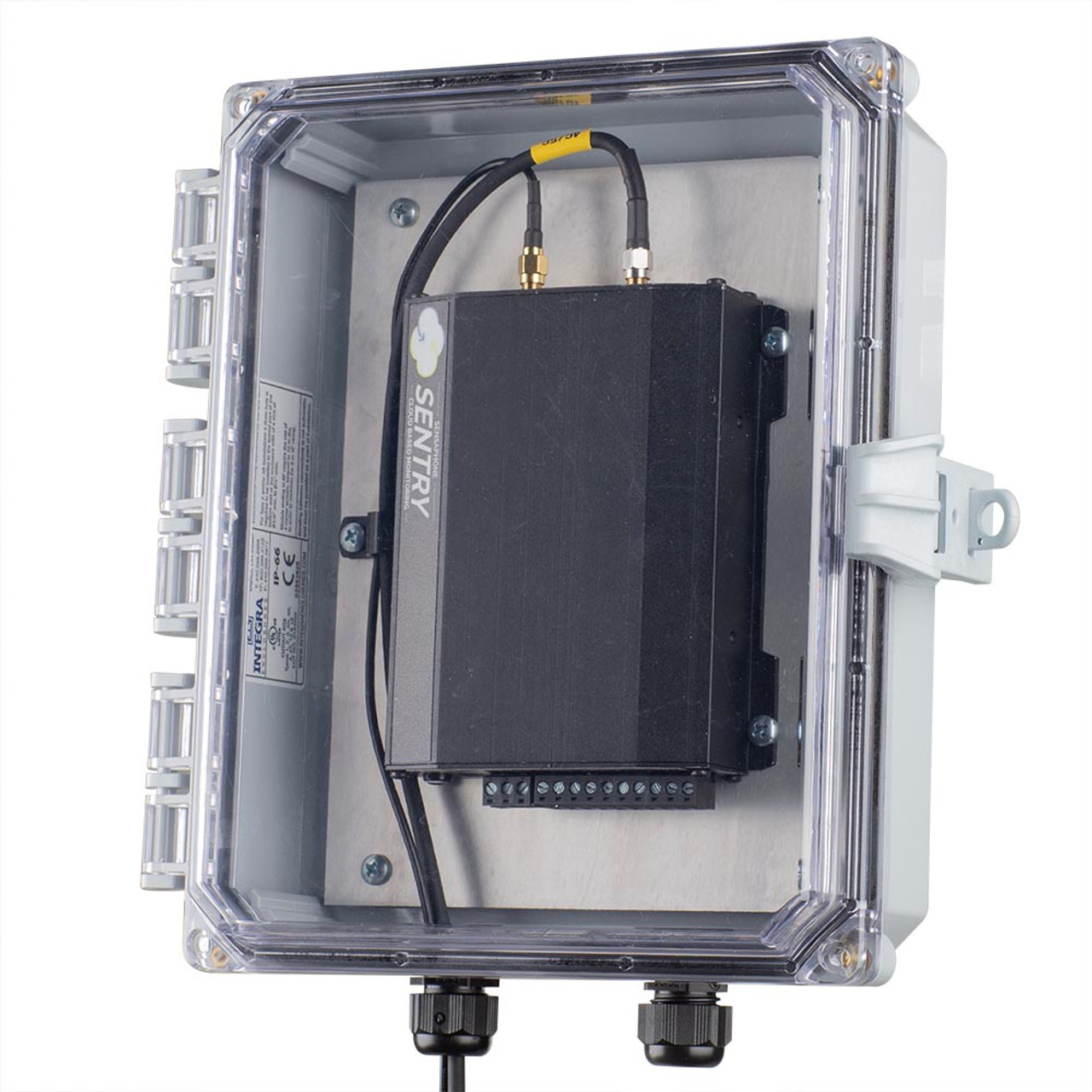

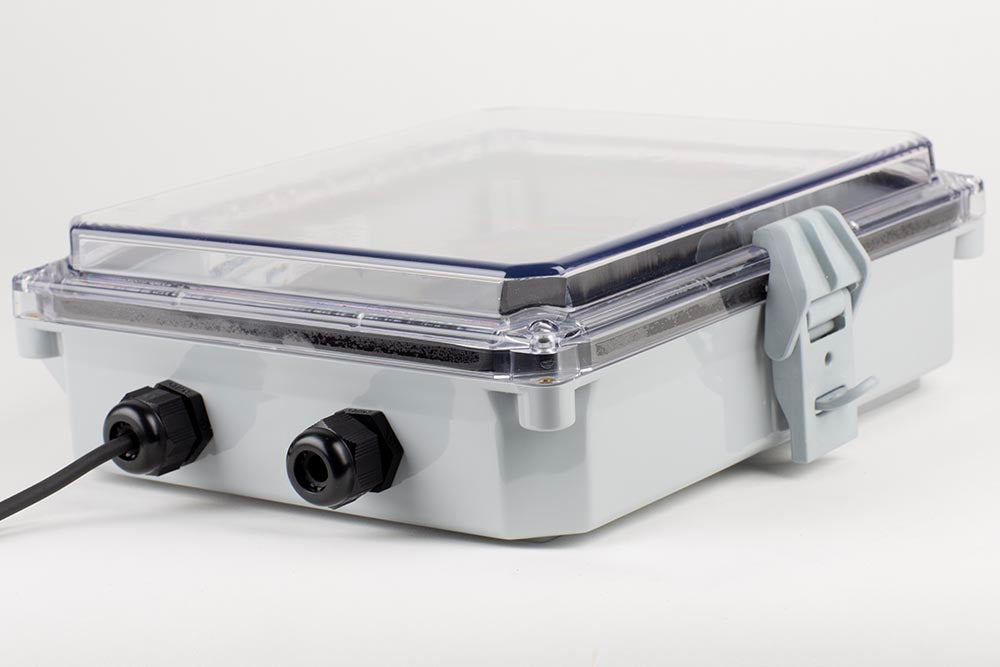

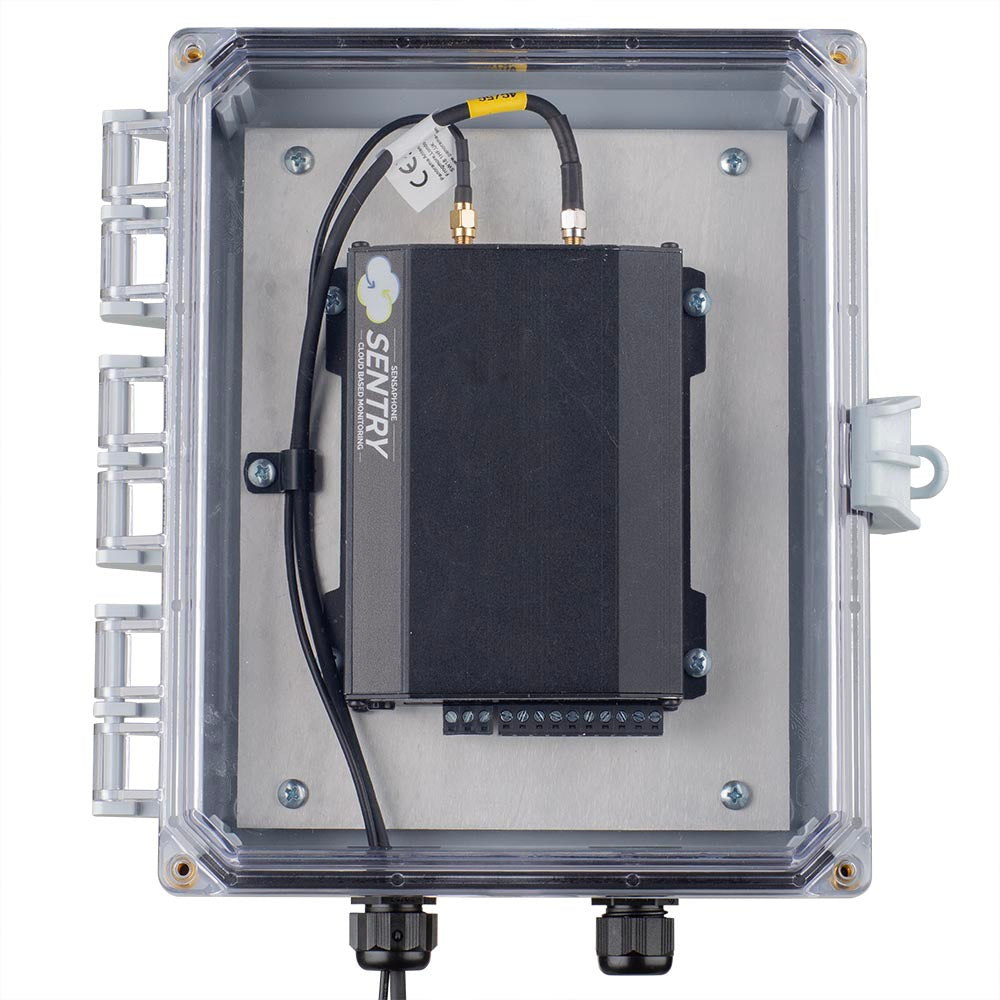

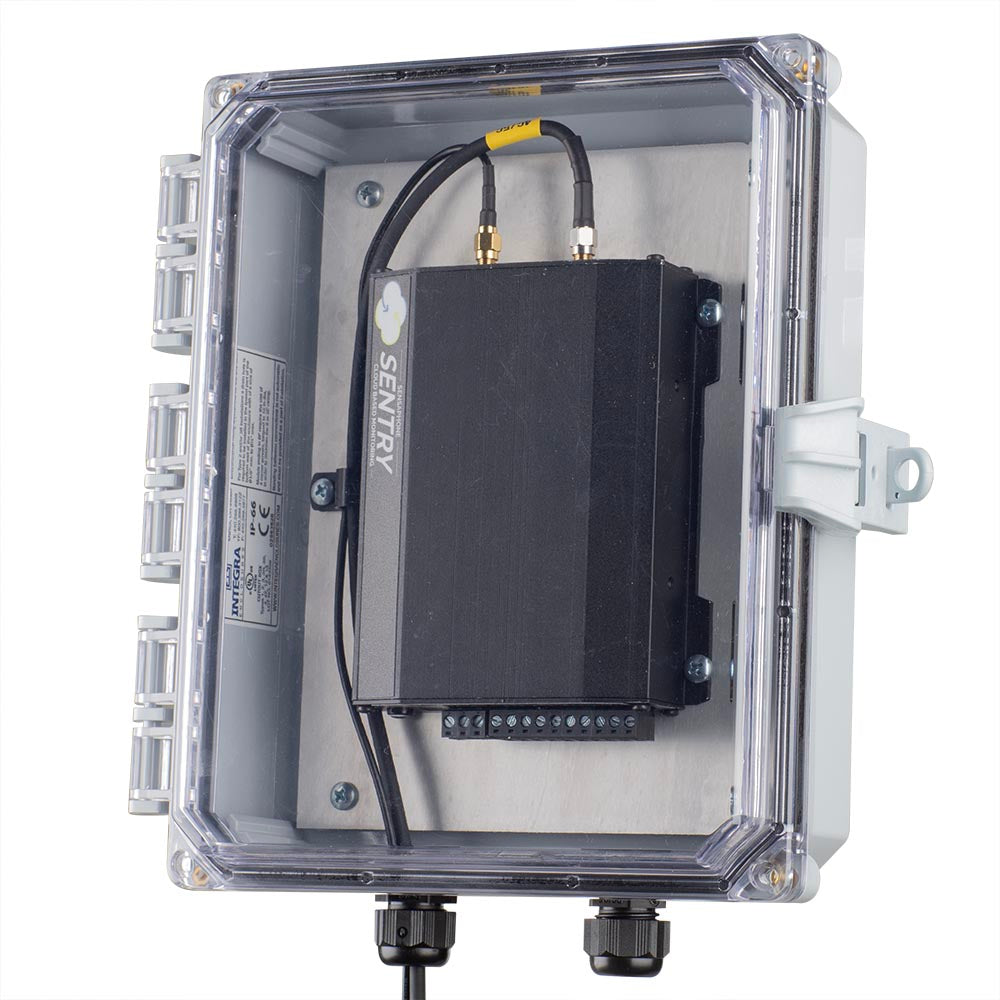

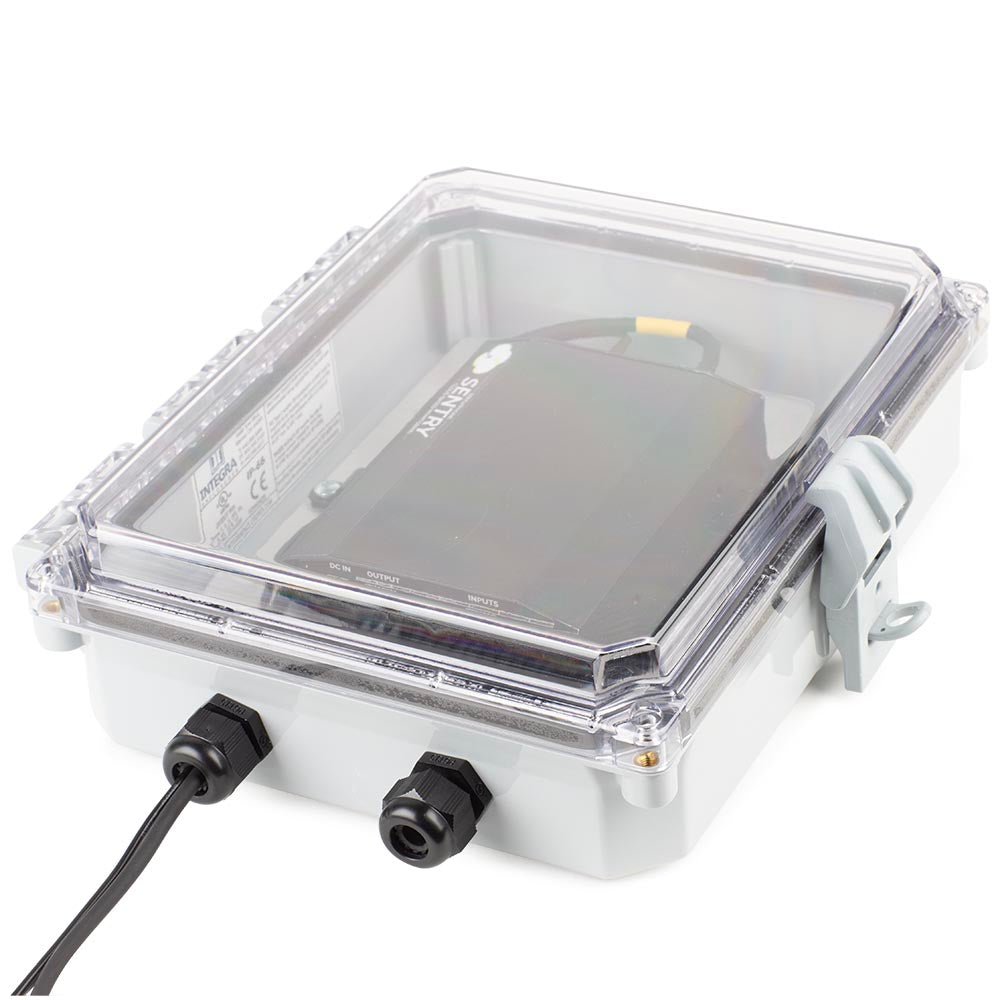

- Available in optional weatherproof NEMA 4X enclosure

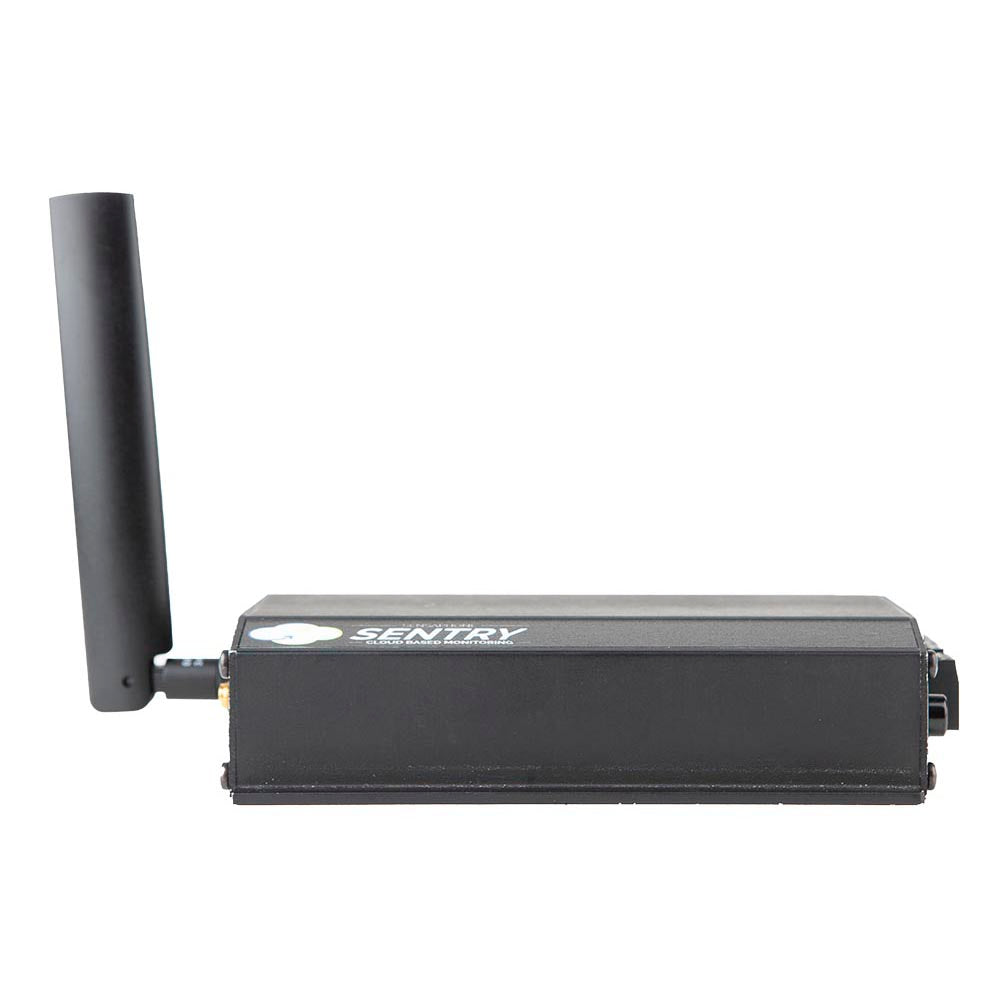

The Sensaphone Sentry Monitoring System offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The system monitors up to five different environmental and equipment status conditions including temperature, humidity, power failure and water detection. When the system identifies issues, it instantly sends alerts via phone, text or email over a cellular connection. Users can access information and make system changes from any web-enabled device. No software is required, so installation, integration and management are easy.
- INCLUDED: Internal rechargeable battery-backup system will provide 12 hours of continuous monitoring and alerting in the event of a power outage.
- INCLUDED: Power failure monitoring

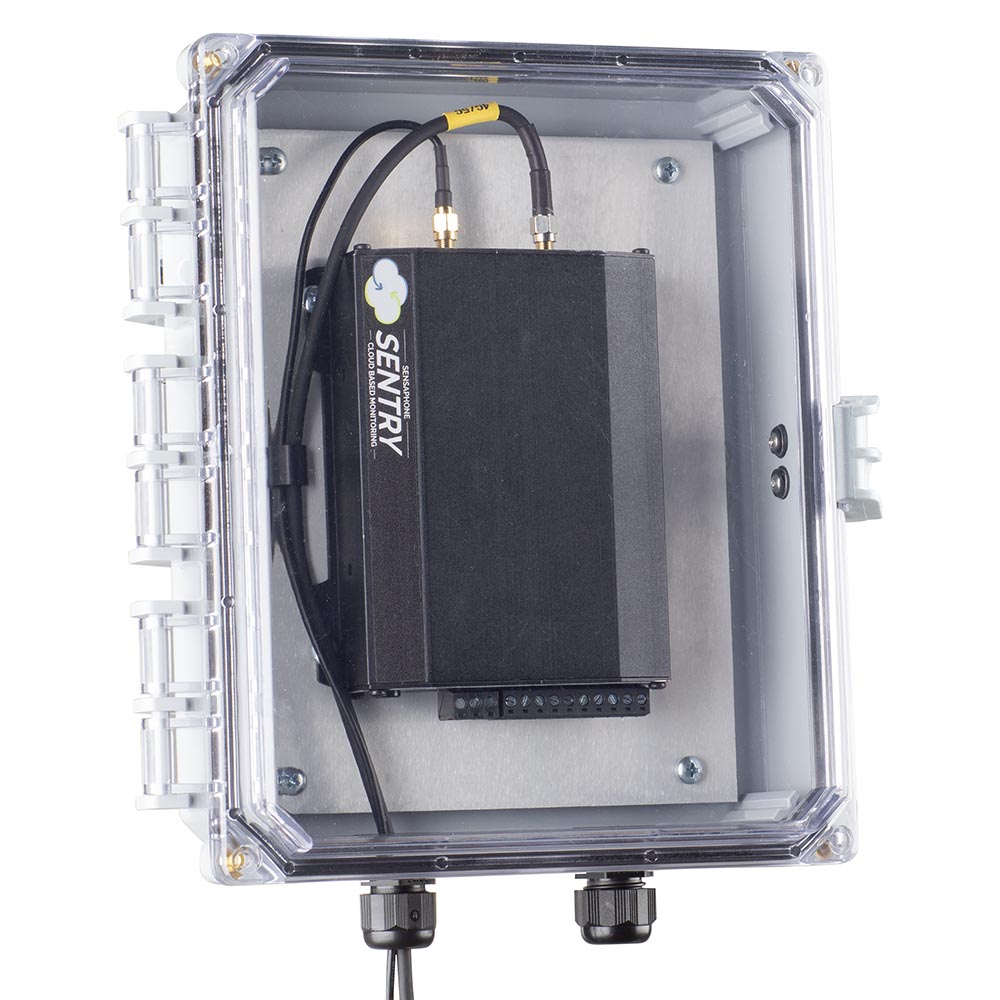

- OPTIONAL: Weatherproof NEMA 4-X enclosure
Technical Specifications:
Communication Method:
4G/LTE Cellular Modem for use on Verizon, AT&T or Rogers

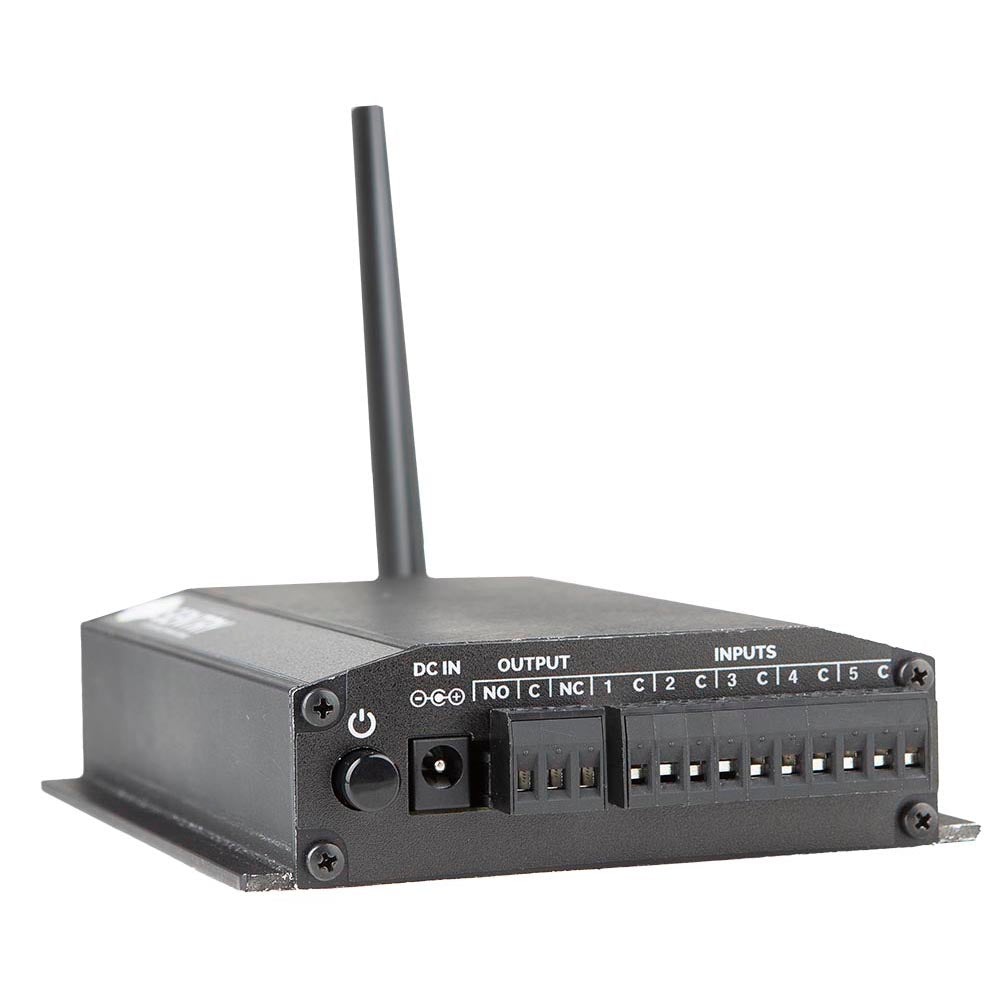

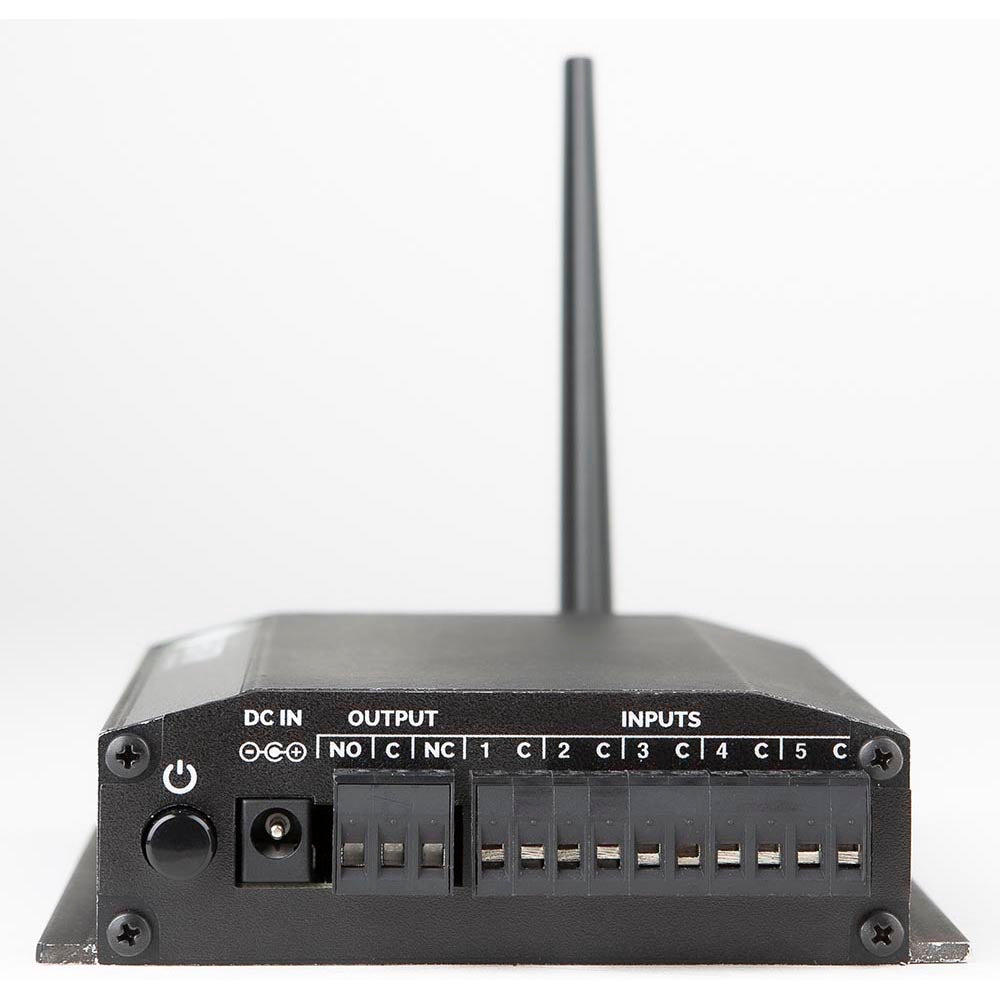

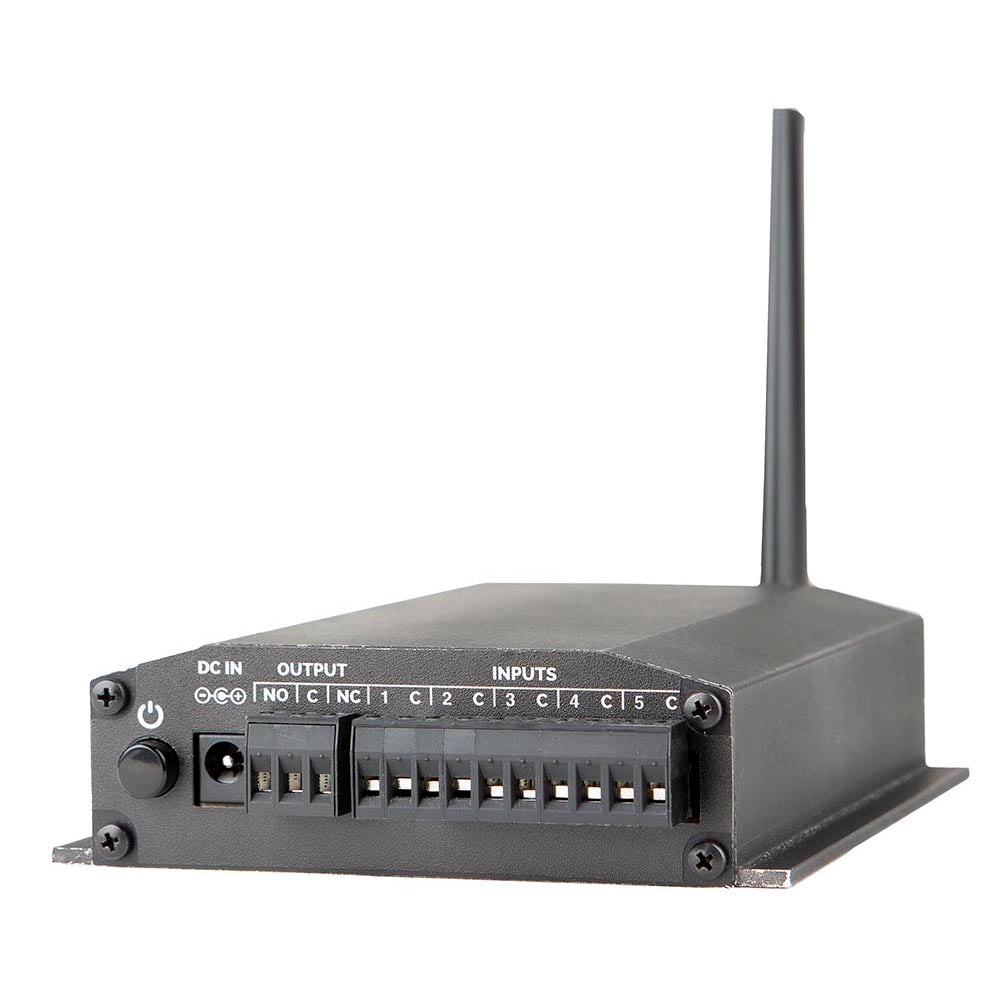

Number of Inputs:
5

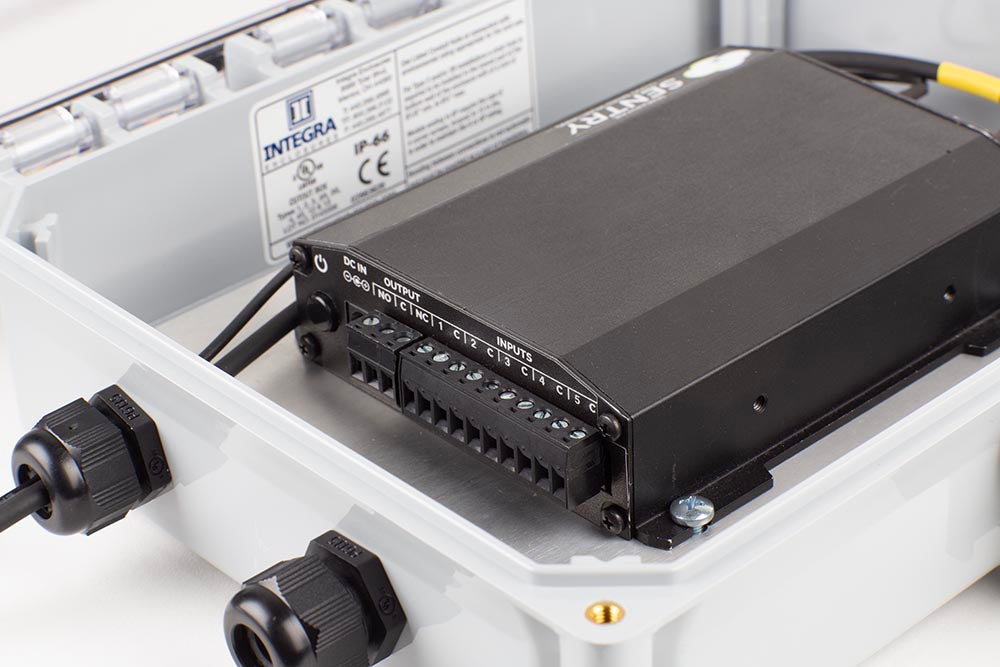

Input Types:
Contact, 2.8K
Temperature Sensing Range:
-109° to 115°F | -85° to 57°C
Output Relay:
One low voltage NO/NC relay output
Manual or automatic alarm switching
Remote Access:
Website or mobile app to access status and programming

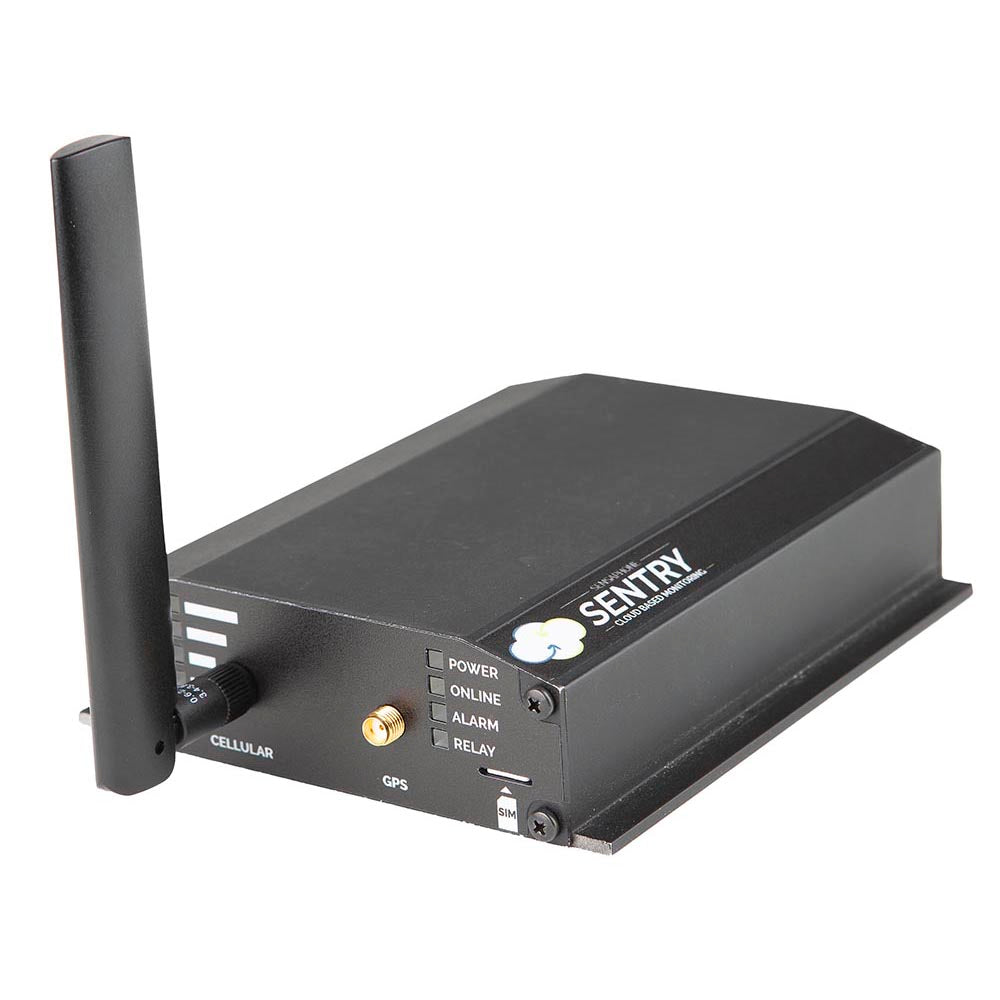

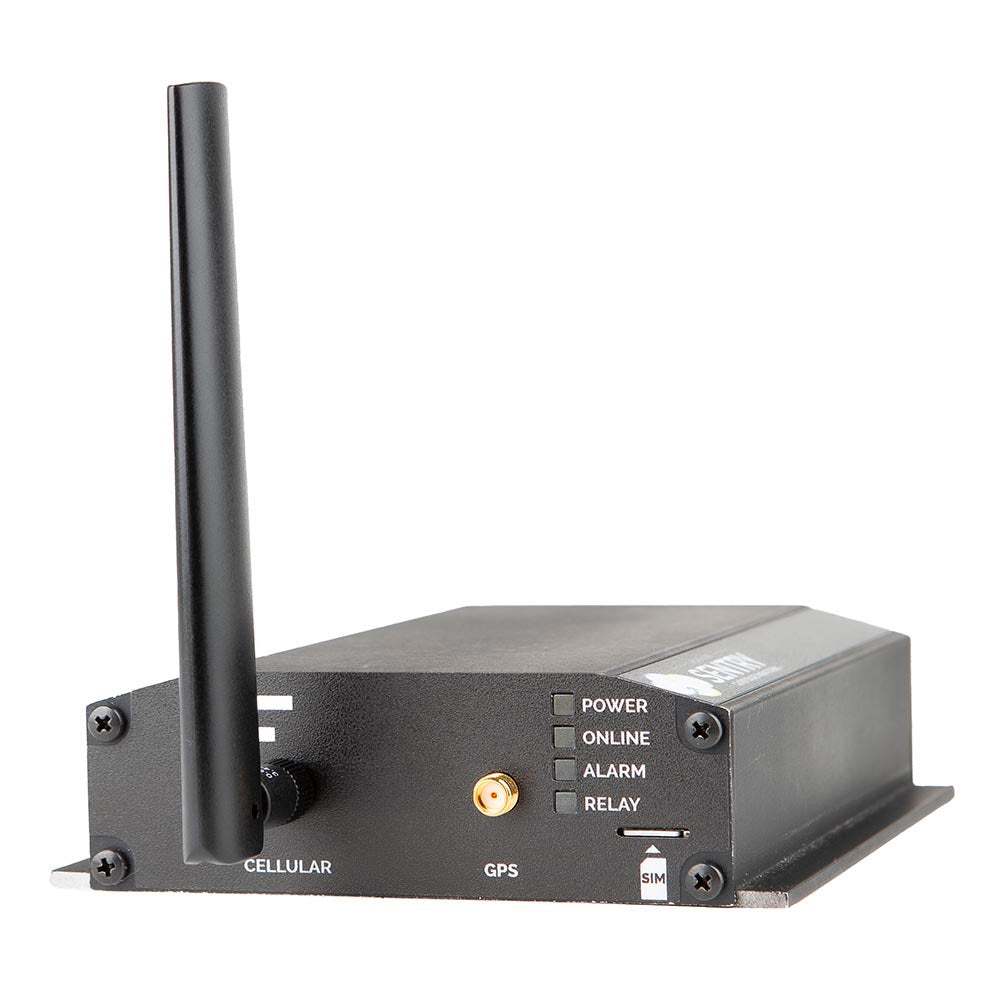

Local Access:

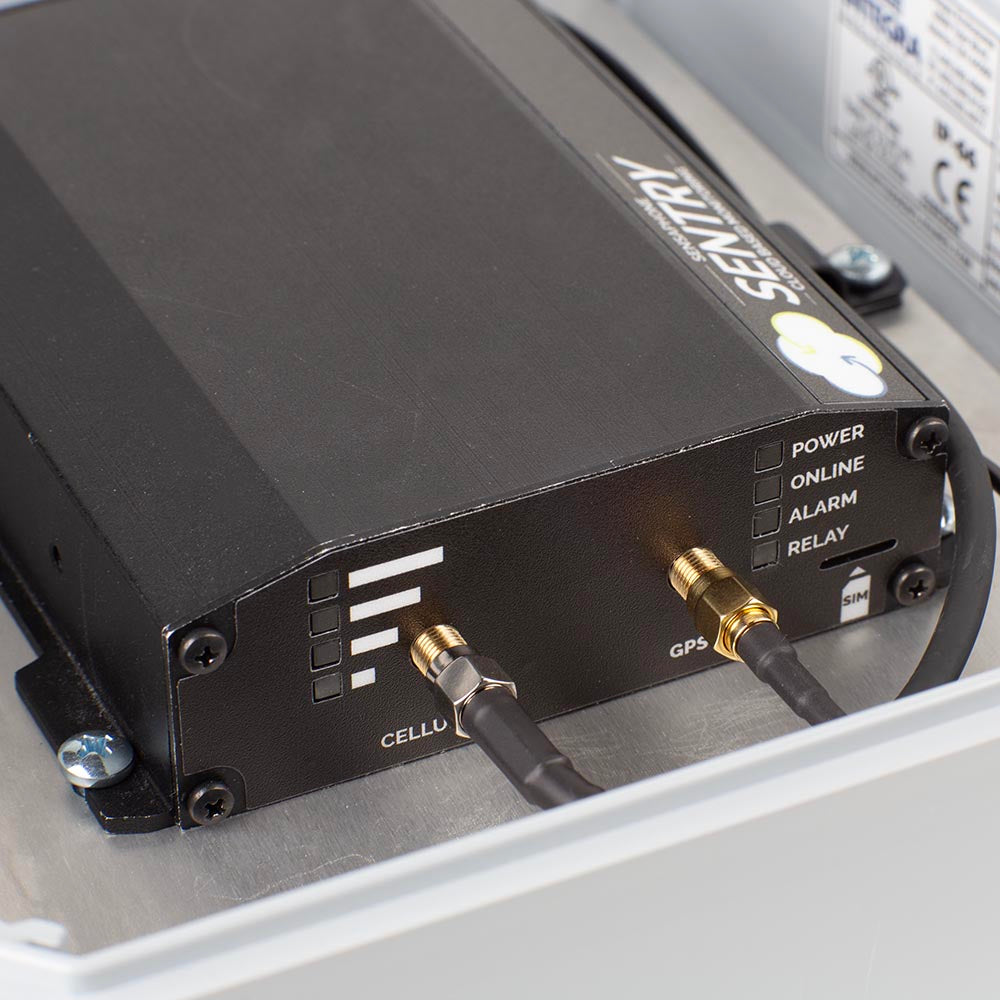

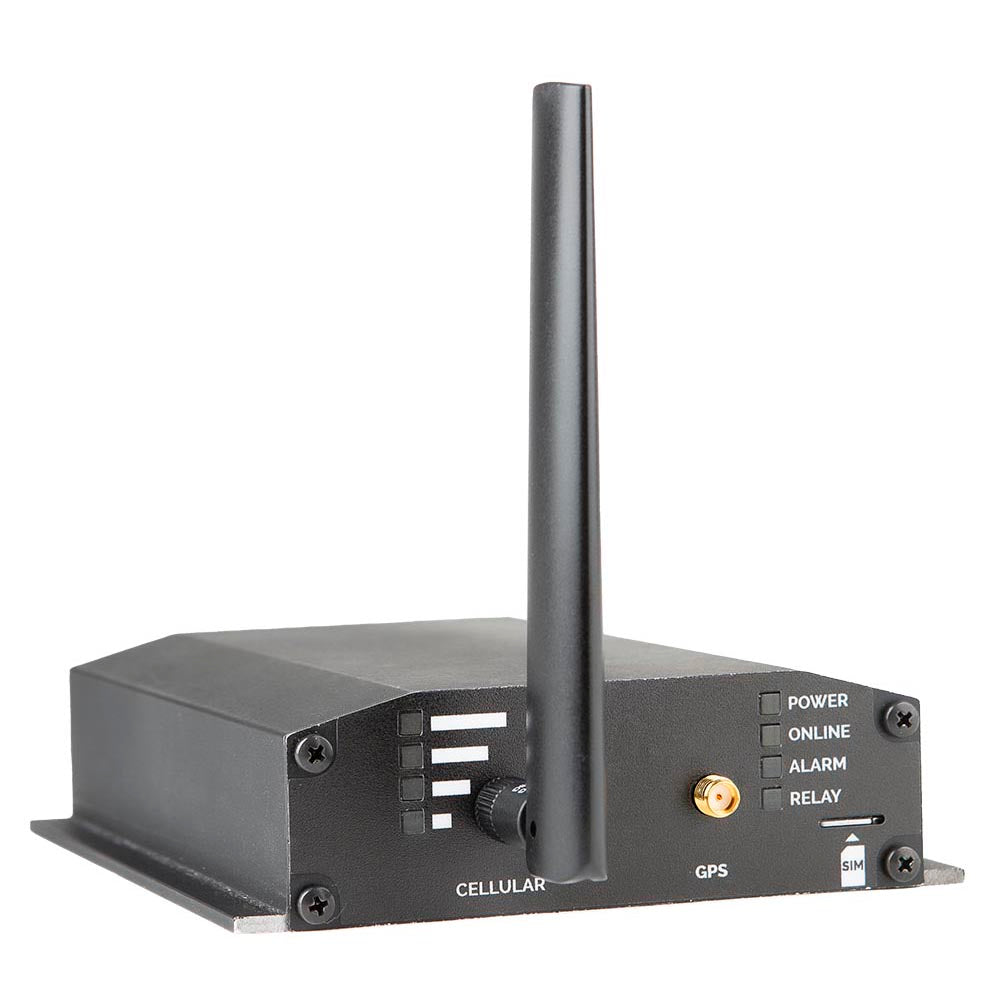

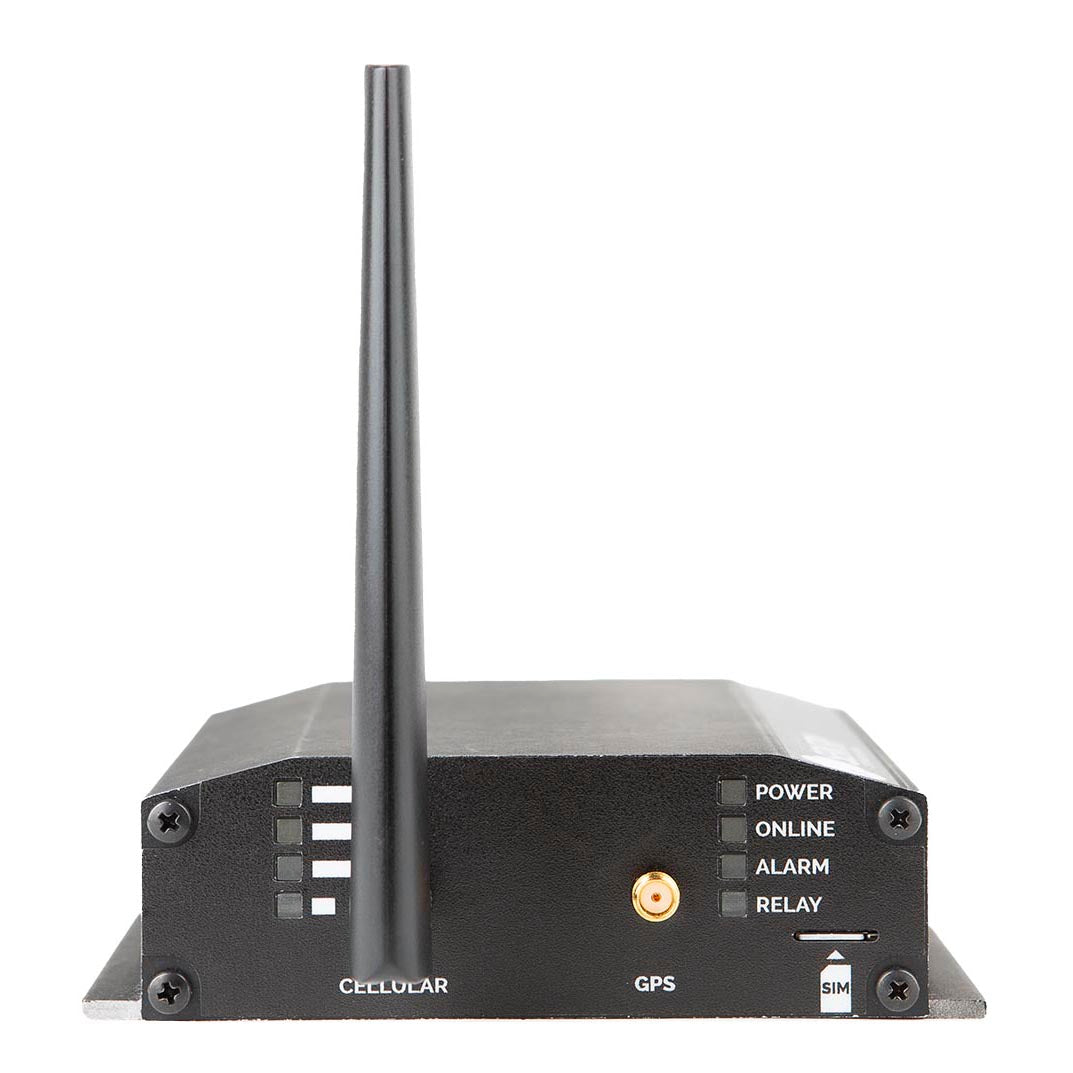

LEDs for Alarm Status, Power Status, Online Status, Relay Output Status and Cellular link
Alarm Notifications:
An unlimited number of email, text or phone calls
Power Requirement:
90-260VAC/12VDC 50/60Hz 7.5W wall plug-in transformer w/6’ cord
Comes with 12VDC plug-in power supply
Battery Backup:
12-Hour rechargeable battery backup
Physical:
6.1 x 4.7 x 0.9” | 155 x 120 x 23 mm)
1 lb. | .45kg
Antenna:
5G/4G Omni Directional Cellular Antenna 50 Ohm, 600-6000MHz Operational 5W (Maximum Input Power) Dipole Terminal Antenna with Hinged SMA(M) Connector
Antenna Dimensions:
168x18x13 mm
Operating Temp:
-40°F to 176°F (-40°C to 80°C)
