Product Description
Cloud-Based Monitoring of Modbus Inputs... Without Network Connections
- A supervised internet connection assures the Sentinel Pro is online and monitoring at all times
- Store your sensor readings in the cloud to automatically protect against data loss and provide limitless information storage
- Receive alarm notifications through a cellular connection
- Notifies an unlimited number of people by e-mail, text message or voice phone calls in the event of an alarm
- Poll Modbus registers from other equipment and twelve external digital or analog sensors monitor temperature, humidity, water and more
- A cellular modem provides operation in locations where an ethernet connection is unobtainable
- Temperature sensing range of -109° to 168 °F | -85° to 76 °C
- Manage multiple units, make programming changes and access status conditions using a simple, powerful web-based interface
- Contact us before purchasing to confirm cellular coverage
- Cellular modem and SIM card included
- Made in USA
The Sentinel PRO Monitoring System with Cellular Modem offers an easy-to-install, easy-to-configure monitoring solution for locations with no access to a landline or Internet connection. The cloud-based Sentinel PRO allows you to monitor remote facilities and environments and check critical conditions of your climate-sensitive commodities with the same degree of certainty you’ve come to expect from Sensaphone. The system monitors, delivers alarms, and data logs input/output points from third-party Modbus sensors, transducers and programmable logic controllers. The system supports Modbus RS485. It takes the burden out of managing your system by giving you access to your readings from anywhere using a simple, powerful web-based interface. If there’s a disruption, you’ll be the first to know. Alerts can be sent straight to your mobile device—keeping you updated and giving you peace of mind wherever you are, so you can remain focused on business as usual.

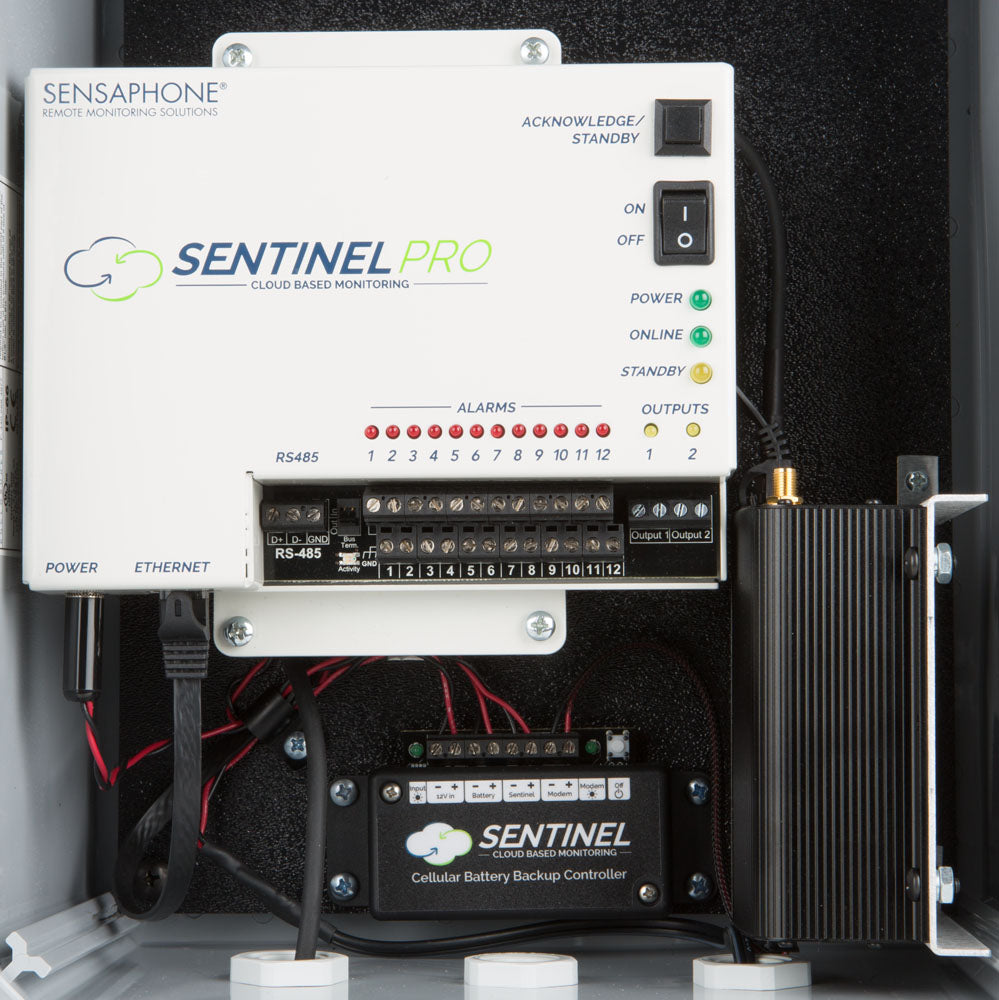

- INCLUDED: Internal rechargeable battery- backup system will provide 8 hours of continuous monitoring and alerting in the event of a power outage.
- INCLUDED: Power failure monitoring

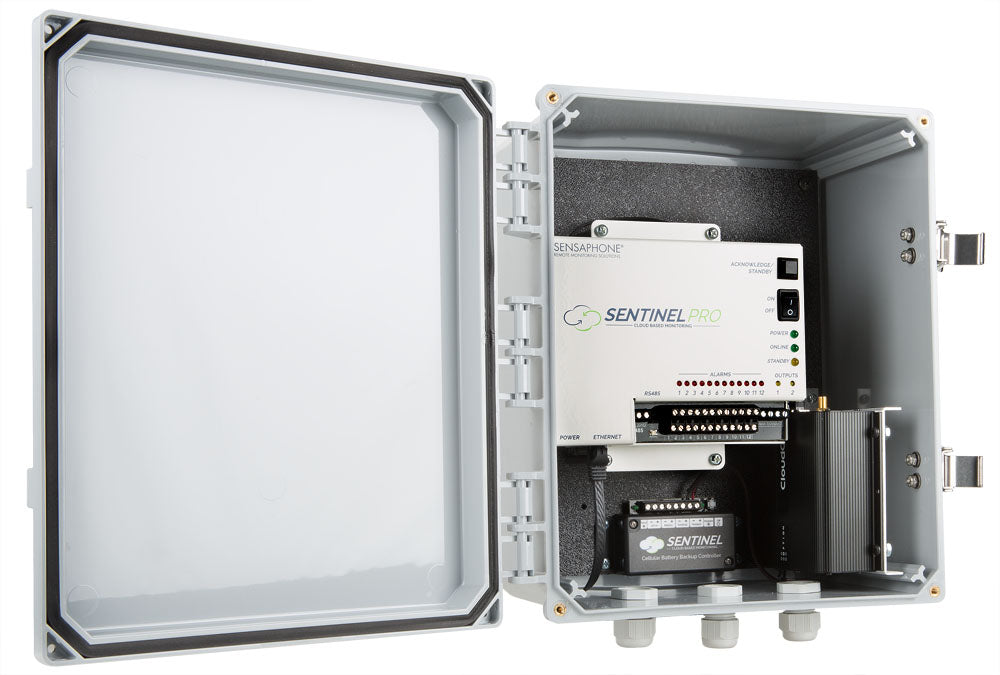

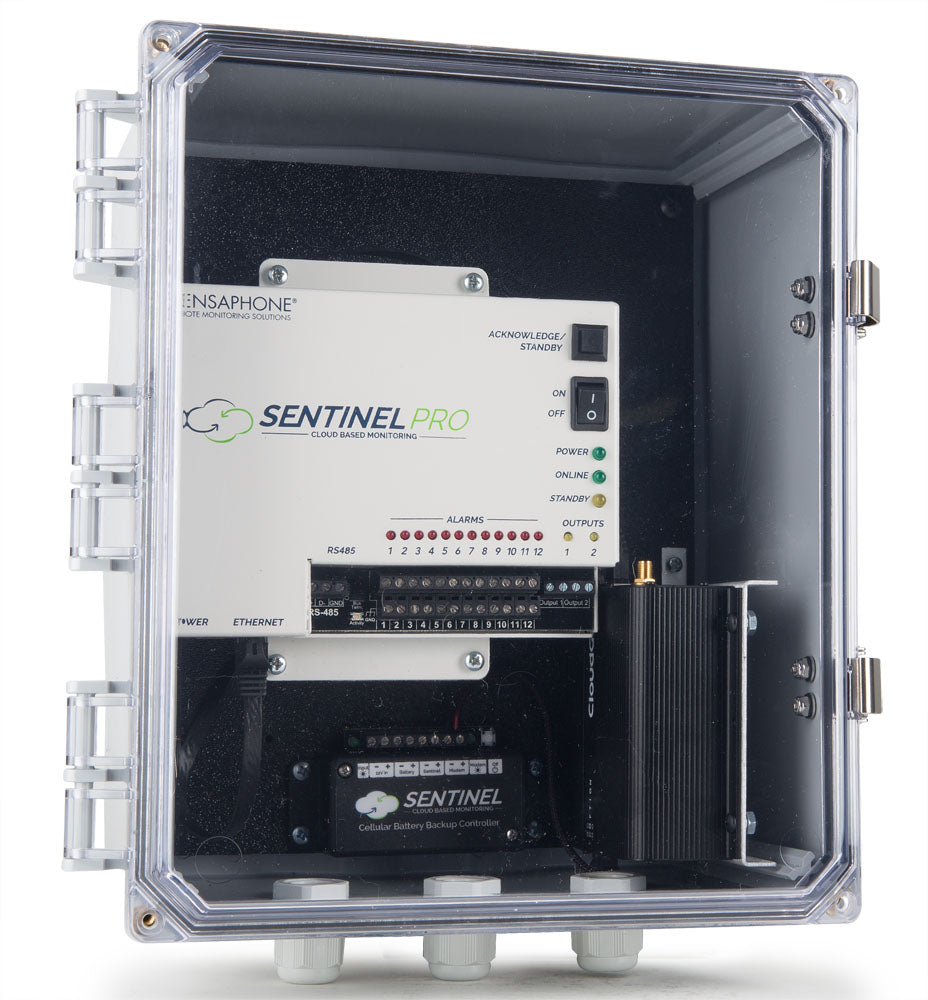

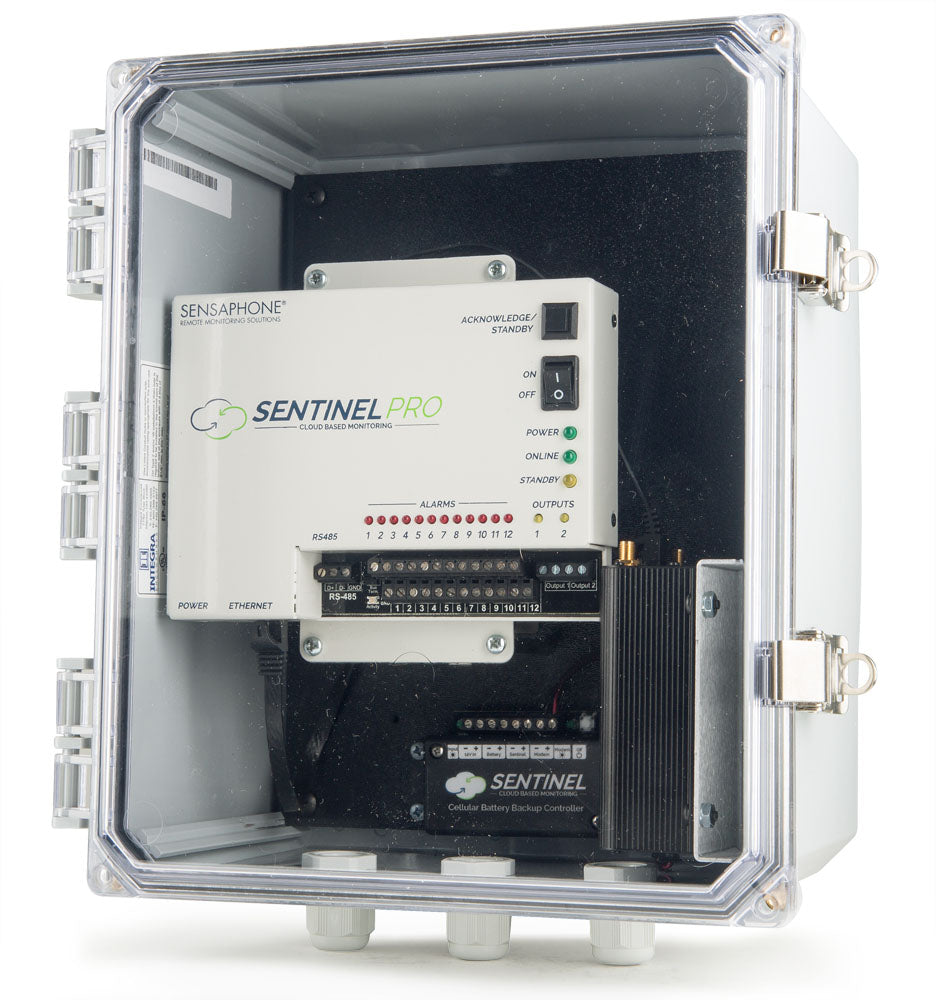

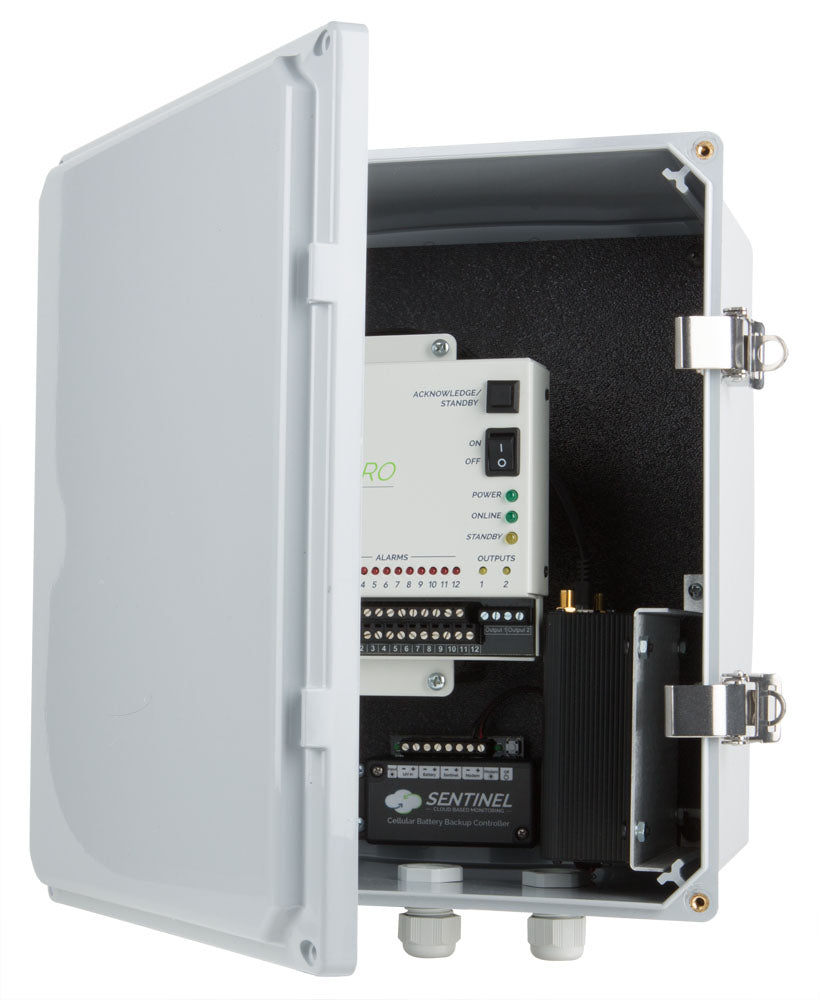

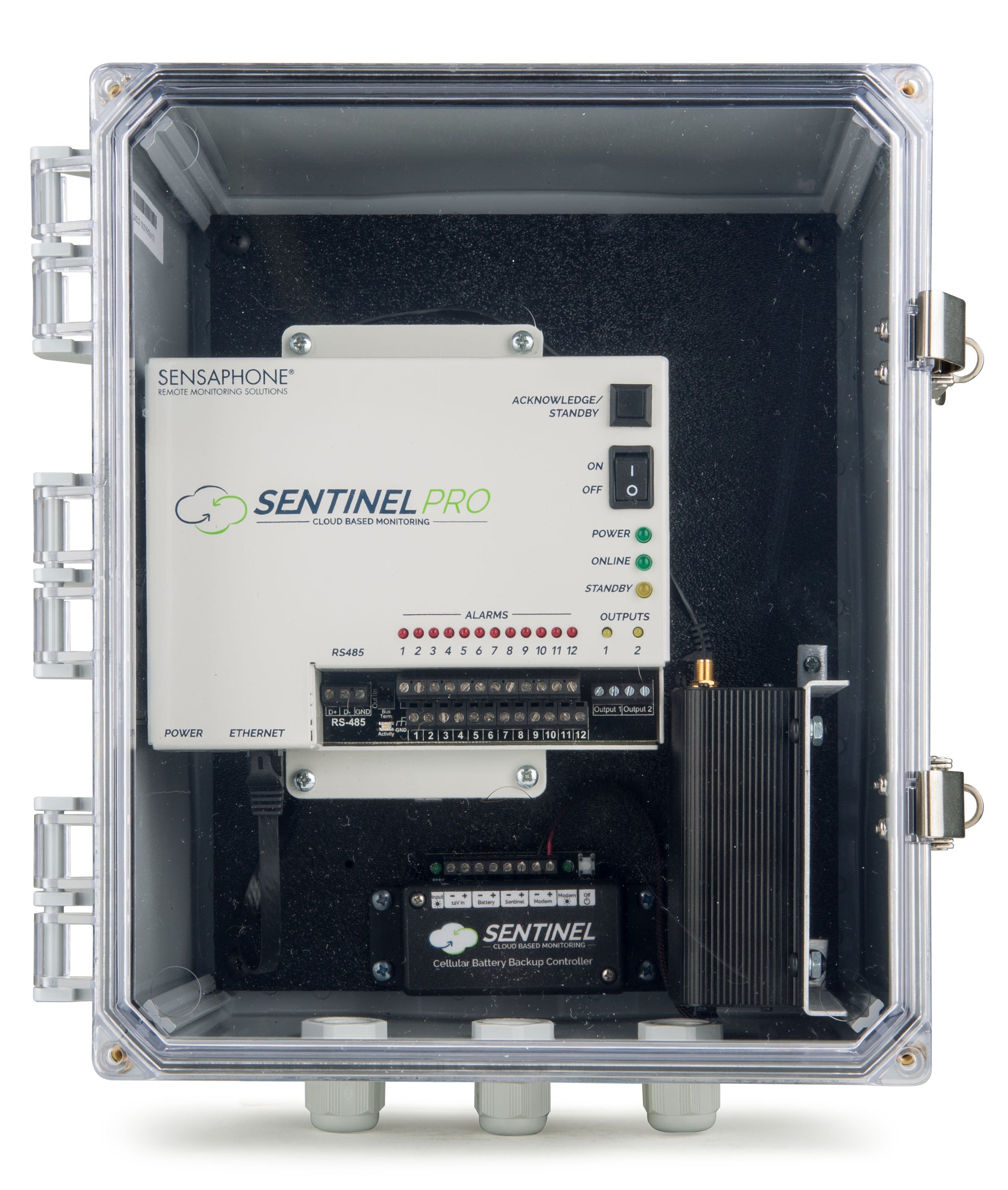

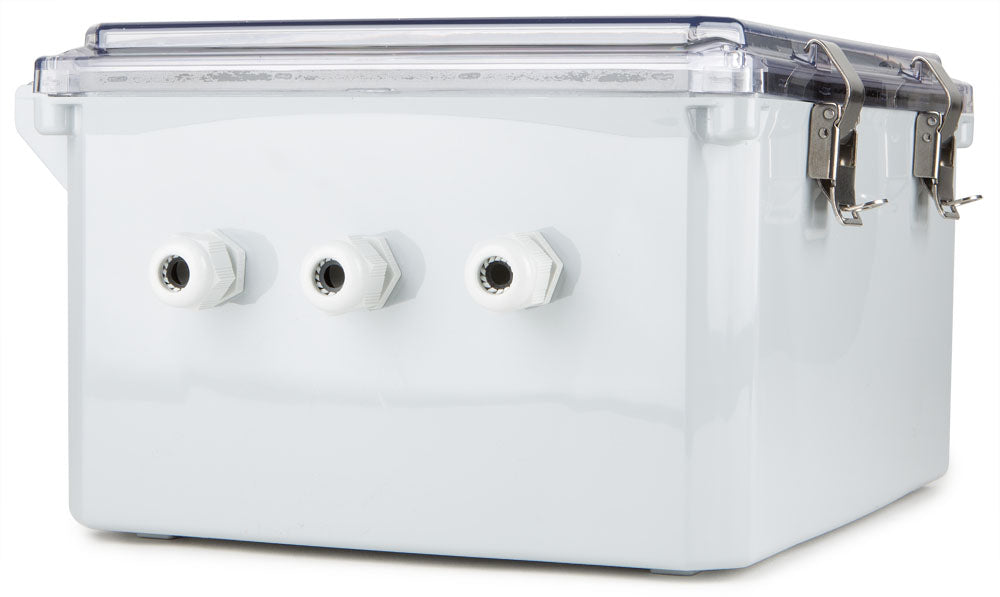

- INCLUDED: Weatherproof NEMA 4-X enclosure
Technical Specifications
Communication Method:
Cellular
Number of Inputs:
12 Digital or Analog & 64 Modbus Registers
Input Types:
Modbus RTU/485 and Modbus TCP, Dry Contact, 2.8K, 10K, 4-20mA
Temperature Sensing Range:
-109° to 168°F | -85° to 76°C
Output Relay:
Two low voltage NO/NC relay output
Manual or automatic alarm switching
Remote Access:
Website and mobile app to access status and programming
Local Access:
LEDs for Alarm Status, Power Status, and Ethernet/Cellular link
Alarm Notifications:
An unlimited number of email, text or phone calls
Power Requirements:
Power Requirement: 12-24DC
Comes with 12VDC plug-in power supply
International power options available
Current Draw: 300mA at 24VDC
Data Logging:
Unlimited samples securely stored on the Sentinel servers
Programmable sampling Interval - 5 mins to 24 hrs
Battery Backup Time:
8 Hours
Physical:
12.5 x 12.2 x 7.0" | 318 x 310 x 178mm
10.5lbs. | 4.7kg

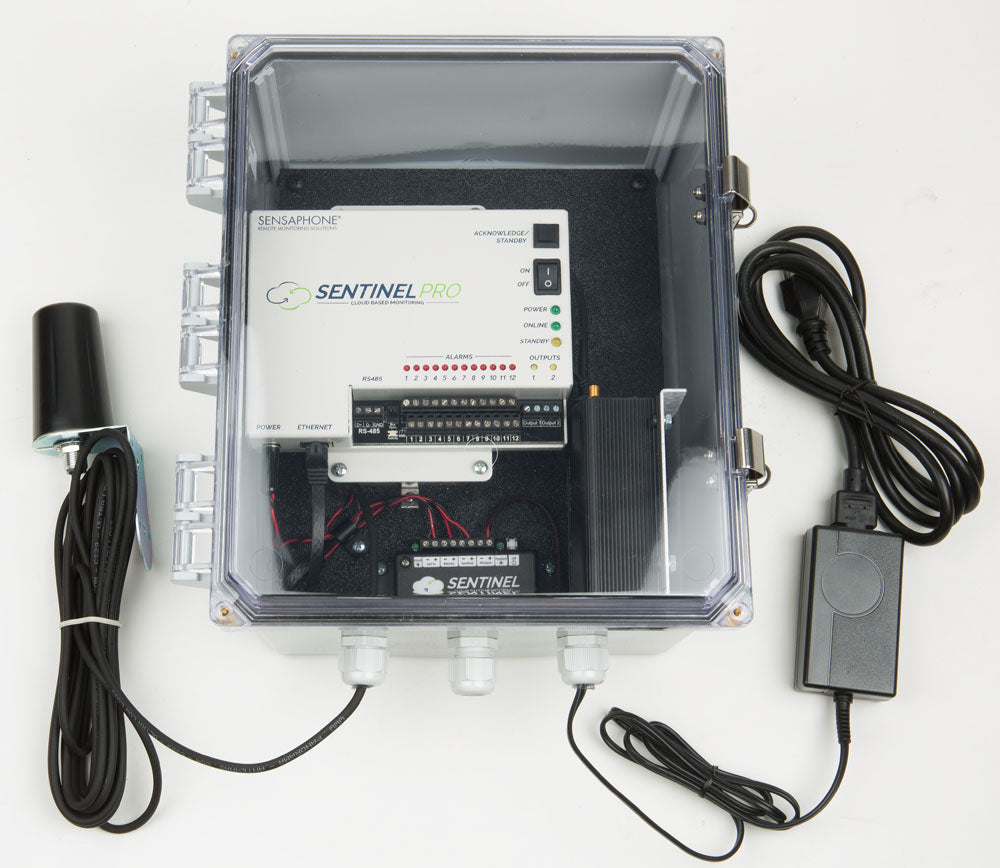

Antenna:
2G/3G/4G Frequencies: 698-960/1710-2700MHz
Peak gain: 5dBi
Pattern: Omni-directional
Height: 6.45" (164mm)
Diameter: 1.90" (48mm)
IP Rating: IP-66
Operating Temp: -40°F to 176°F (-40° to 80°C)
