Product Description
Detect Unauthorized Entry or Intrusion
- Compatible with all Sensaphone models
- Sends alarm signal to Sensaphone when the switch opens or closes
- Several Magnetic Reed Switches may be installed in series on a single continuous circuit provided all switches will be normally closed at the same time

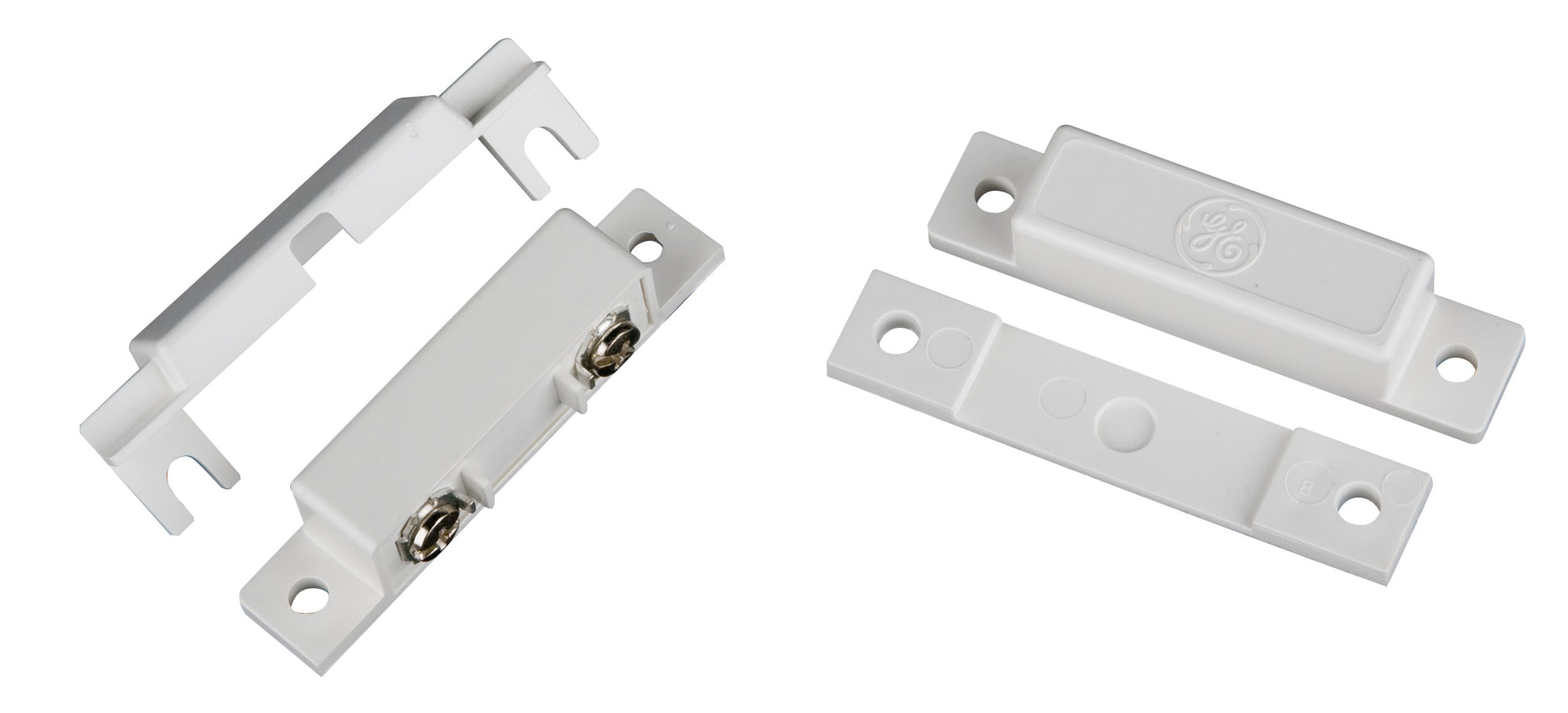

The magnetic reed switch may be used with all Sensaphone Models to detect any unauthorized entry or intrusion. They are usually installed on doors or windows to detect their opening and closing. Several magnetic reed switches may be wired in series to one Sensaphone input. The switch is usually installed to function in a normally closed position when the door or window is closed. The complete Magnetic Reed Switch assembly comes in two main parts: a magnet in a plastic housing, and a switch with screw terminals in another, separate plastic housing.
Technical Specifications
Connection: Hardwired
Housing: Plastic
Dimensions: 2.5 x .75 x .5" | 63 x 19 x 13mm
Sensor Series: Contact Series
Downloads
Contact Type Magnetic Reed Door and Window Switch Sales Brochure
Contact Type Magnetic Reed Door and Window Switch Sales Instructions
