Product Description
Smoke Detection
- 120 VAC with 9V battery back-upPhotoelectric smoke sensing technology
- Horn frequency 3100 Hz (nominal)
- Temporal 3 evacuation piezo horn
- Nominal 2.5% sensitivity
- Push button self test feature, verifies power sources/operation
- Push and hold button functional test feature, analyzes sensing chamber
- Optional Auxiliary Form A/Form C relay contacts (F model)
- Relay contacts operate when on battery back-up
- Quick-disconnect wiring harness
- DUALINK® - tandem with all Gentex tandem capable alarms
- Non-latching (self restoring) alarm
- LED for AC power on
- Red LED pulses every 30 seconds, green
- Solid state red LED to indicate smoke presence
- Smoke sensing chamber is fully insect screened
- Mounting hardware adapts to standard junction boxes
- Dust cover to prevent particle contamination during installation
- Low or missing battery indicator
- One year warranty from date of purchase
- Connect up to twelve smoke detector sensors to one Sensaphone input

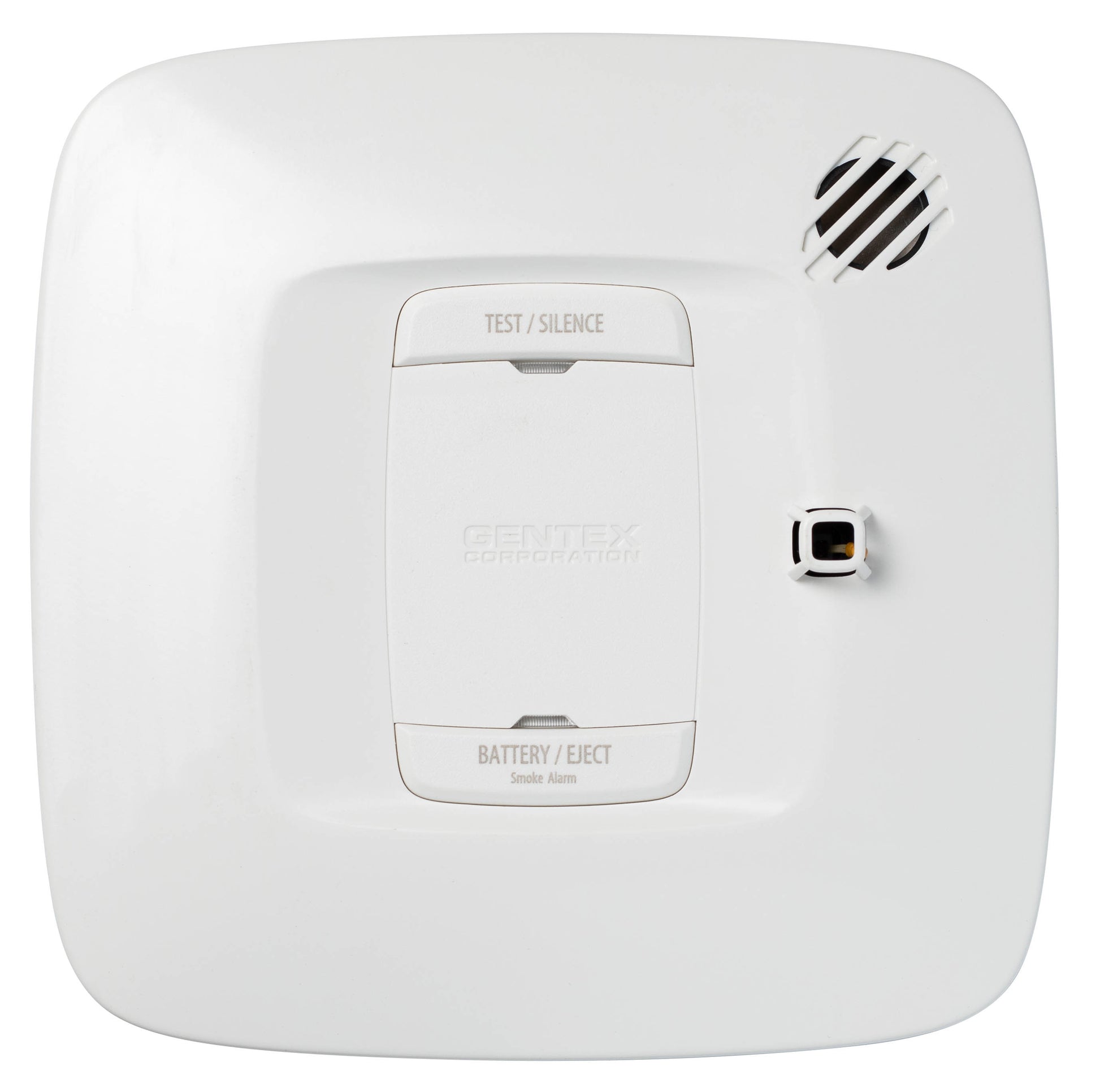

The Smoke Detector with battery backup and built-in relay utilizes a photoelectric sensing method and is designed for use in commercial and residential applications. The device requires hard-wired 120VAC 60Hz power. The detector features two sets of dry alarm contacts: one form-A SPST and one form-C SPDT. The detector has tandem interconnect capability allowing up to 12 devices to be connected together. A 85dBA audible horn is included. The smoke detector can be used with all Sensaphone models.
Technical Specifications
Operating Temperature: 40° to 100°F | 4° to 37°C
Operating Voltage: 120VAC, 60Hz
Dimensions: 6.25 diameter x 1.8" | 72mm x 40mm
Operating Current (Relay Options): 0.070 amps
Alarm Horn Rating: Meets or exceeds 85dBA at 10’
Nominal Sensitivity: 2.5% obscuration
“F” Auxiliary Relay: 1 Form A and 1 Form C (0.6 amp)
Secondary Power Source: Alkaline 9V battery, Duracell® MN 1604
