Product Description
Expand the capabilities of your IMS-4000E system
- Allows expansion of IMS-4000E system

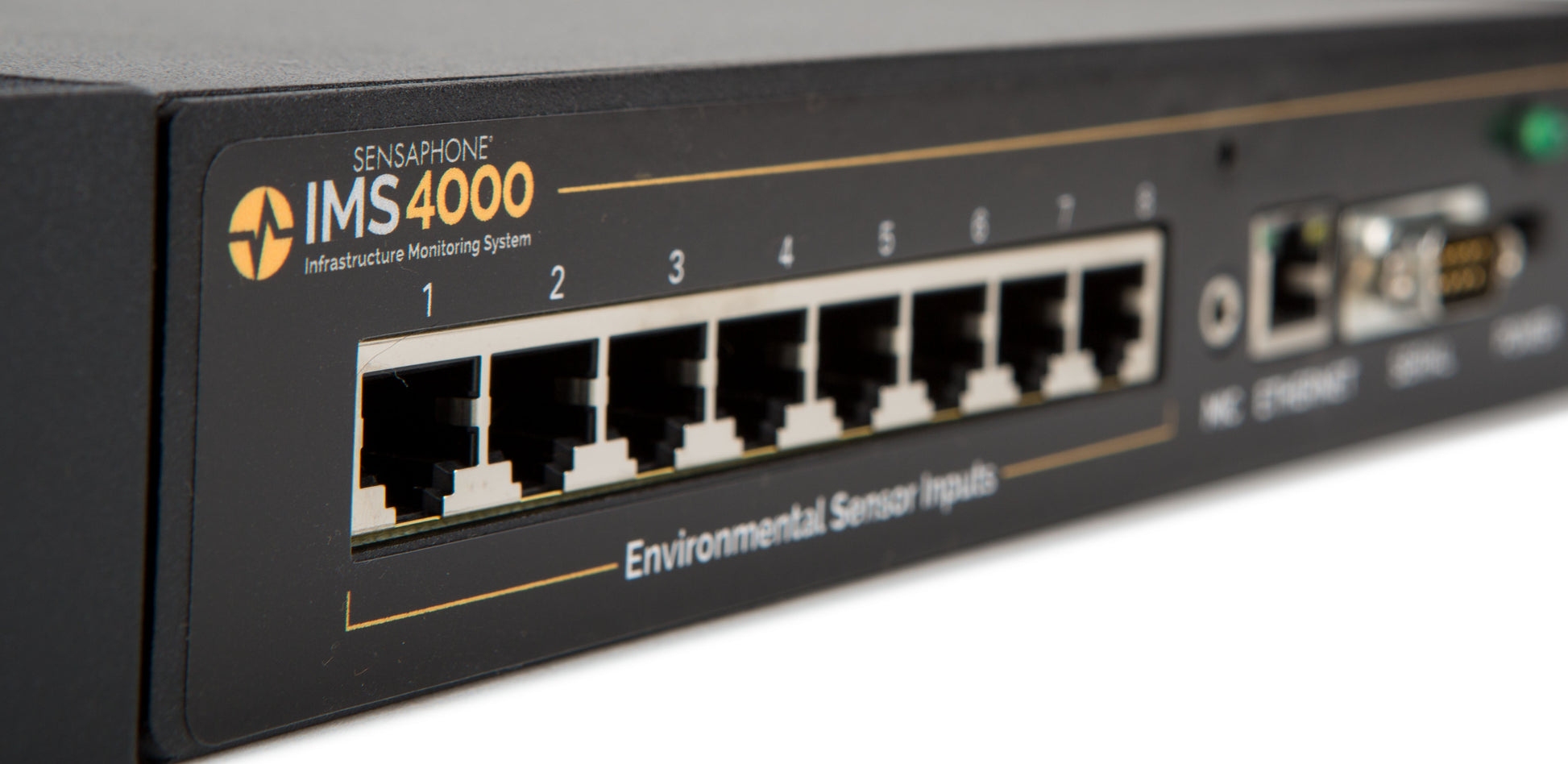

- Up to eight sensors per Node
- Up to 31 Nodes can be associated with each IMS-4000E Host

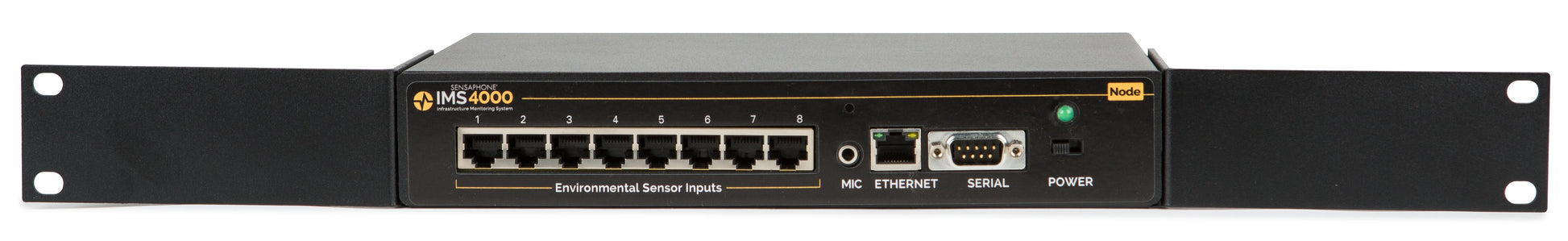

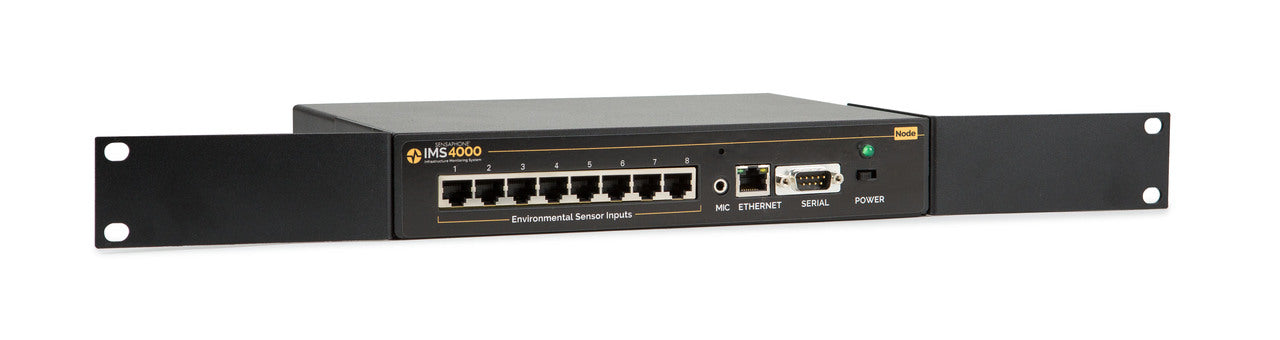

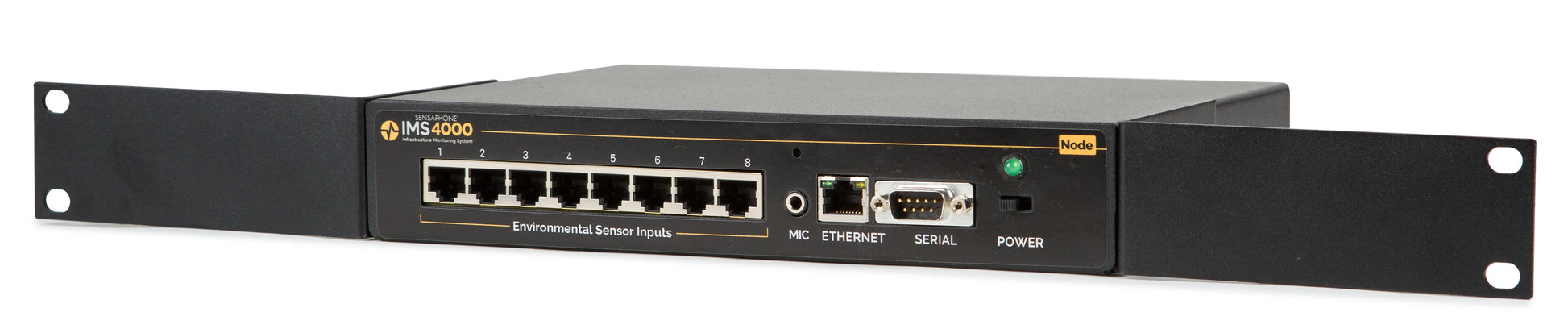

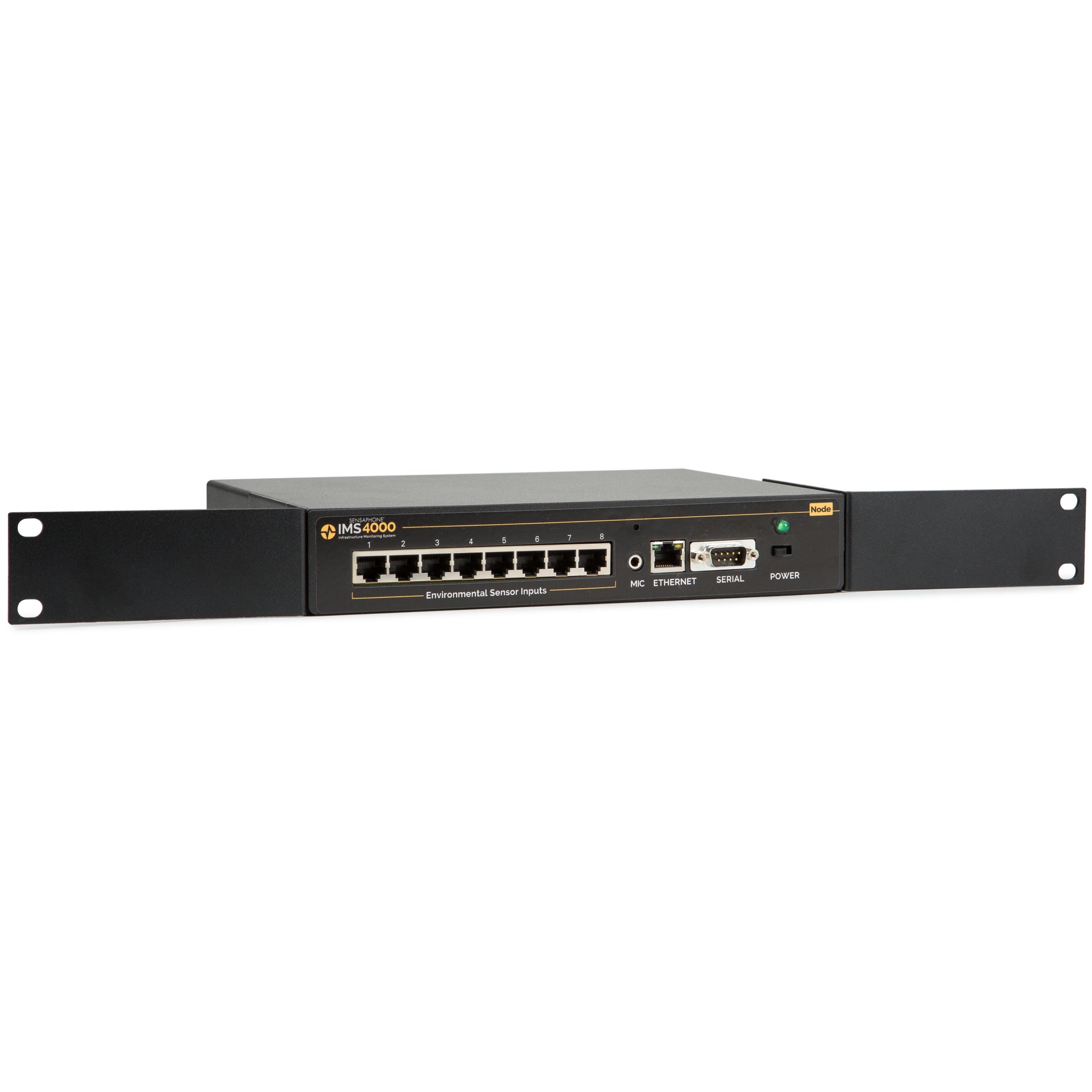

- Can be rack or desktop mounted

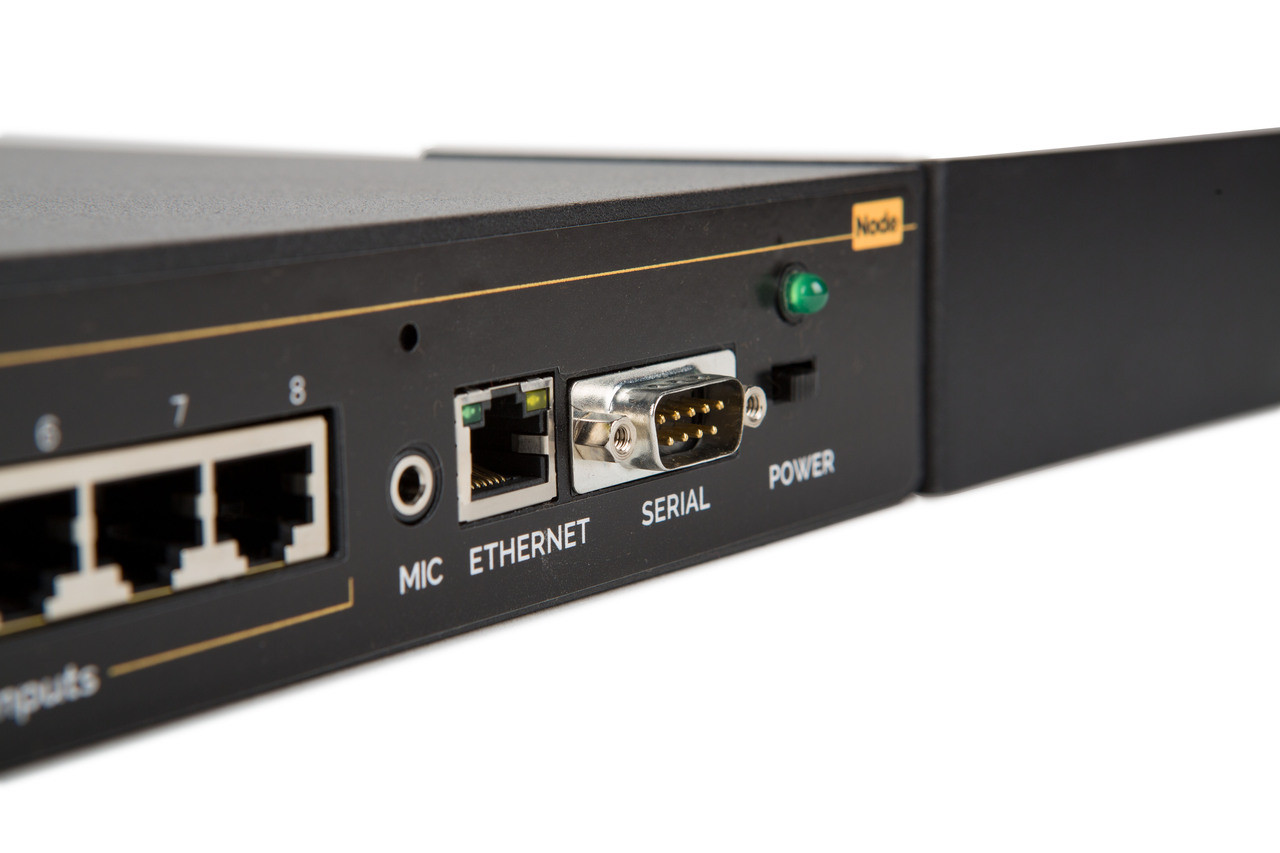

The IMS-4000E Node allows IMS-4000E users to expand their infrastructure and monitor additional inputs in locations away from the IMS-4000E Host. Up to thirty-one Nodes can be used with each IMS-4000E Host. Much like the Host, the Node can monitor eight inputs for environmental conditions and or alarm contacts from other computer equipment such as UPS systems. The Node connects to the Host via a RJ-45 10/100BASE-T Ethernet and is monitored via the ConsoleView software included with the Host.
Communication Method: Ethernet and/or phone via IMS-4000 Host
Number of Inputs: 8
Input Types: IMS Solutions
Remote Access: ConsoleView software and or website to access status and programming
Local Access: LEDs to show ethernet connectivity, and power alarms
Power Supply: Plug in power supply also monitors for power failures. Built in battery backup
Physical: 9.6 x 1.75 x 7" | 244 x 44 x 178mm
Warranty: 3 Years
Standards: FCC Part 15 Class A, USA Emission Standards
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
UL60950
