Product Description
Monitor for the movement of warm bodies
- Dual-element passive infrared intrusion detector
- Reduces false alarms by eliminating background noises and nuisance stimuli
- Variable pulse-count adjustment, thus making it adaptable for use both inside and outside of server/equipment rooms
- Compatible with IMS-1000E or IMS-4000E
- Connects to host device via RJ-45 patch cable

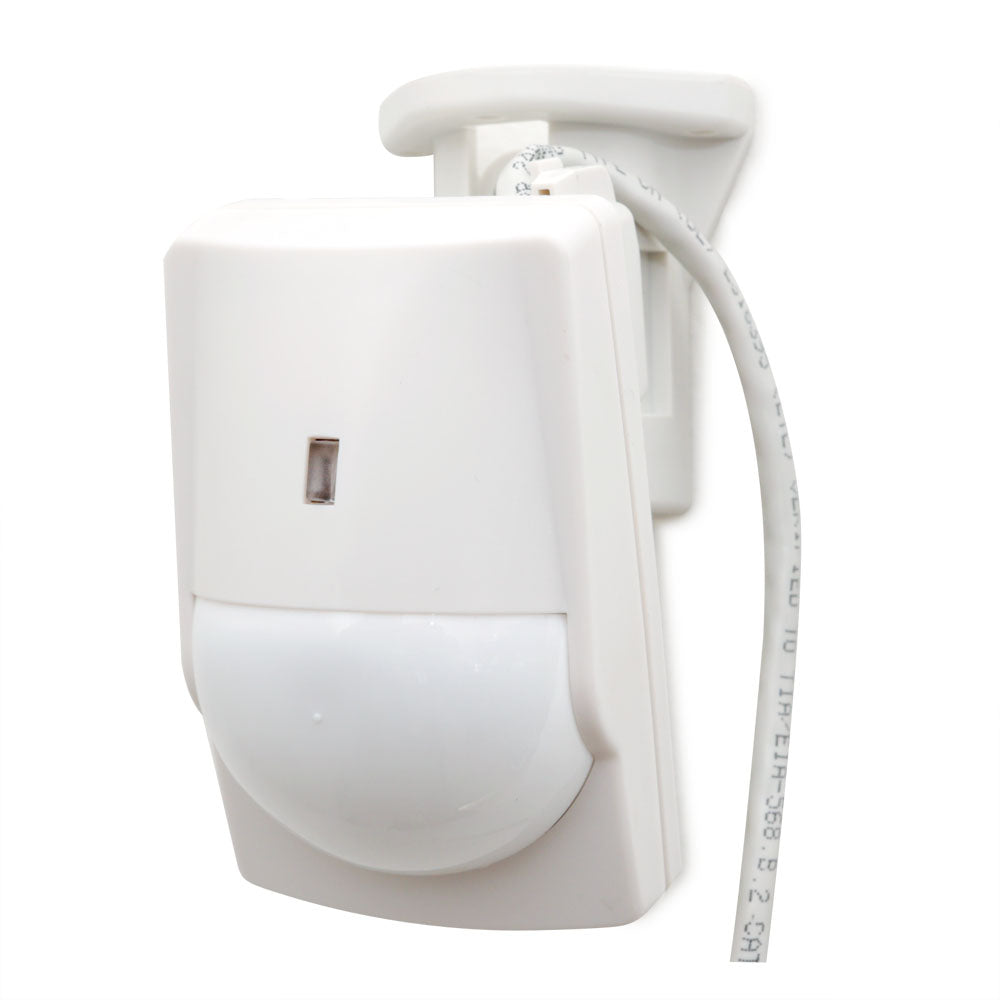

The IMS Infrared Motion Detection Sensor is used exclusively with the Sensaphone IMS system system to monitor for the movement of warm bodies in a room. When a person enters the room, the sensor will trigger the Sensaphone to go into alarm. The range is a maximum of 40 feet directly ahead of, and approximately 20 feet to either side of the detector at 40 feet distance. The sensor mounts to the wall with the included hardware. The connection from the sensor to the IMS system can use an existing CAT5 network wiring infrastructure, which powers the sensor and allows it to be installed in locations away from the IMS host device.
Technical Specifications
Operating Range: -4° to 140°F | -20° to 60°C
Connection: RJ45
Housing: Plastic
Dimensions: 3.8 x 1.8 x 2.5" | 97 x 63 x 47mm
Sensor Series: IMS Solution
