Product Description
Out of range temperature monitoring
- Measures temperature from -148° to 572°F | -100° to 300°C
- Accurate to 0.08%
- The sensor will put out an analog current scaled from 4 to 20mA corresponding to the measurement range of the sensor
- Screw Terminals and Plug-in Terminal Blocks Simplify Wiring and Maintenance
- C-UL-US Listed (Class I, Division 2, Groups A, B, C, D)

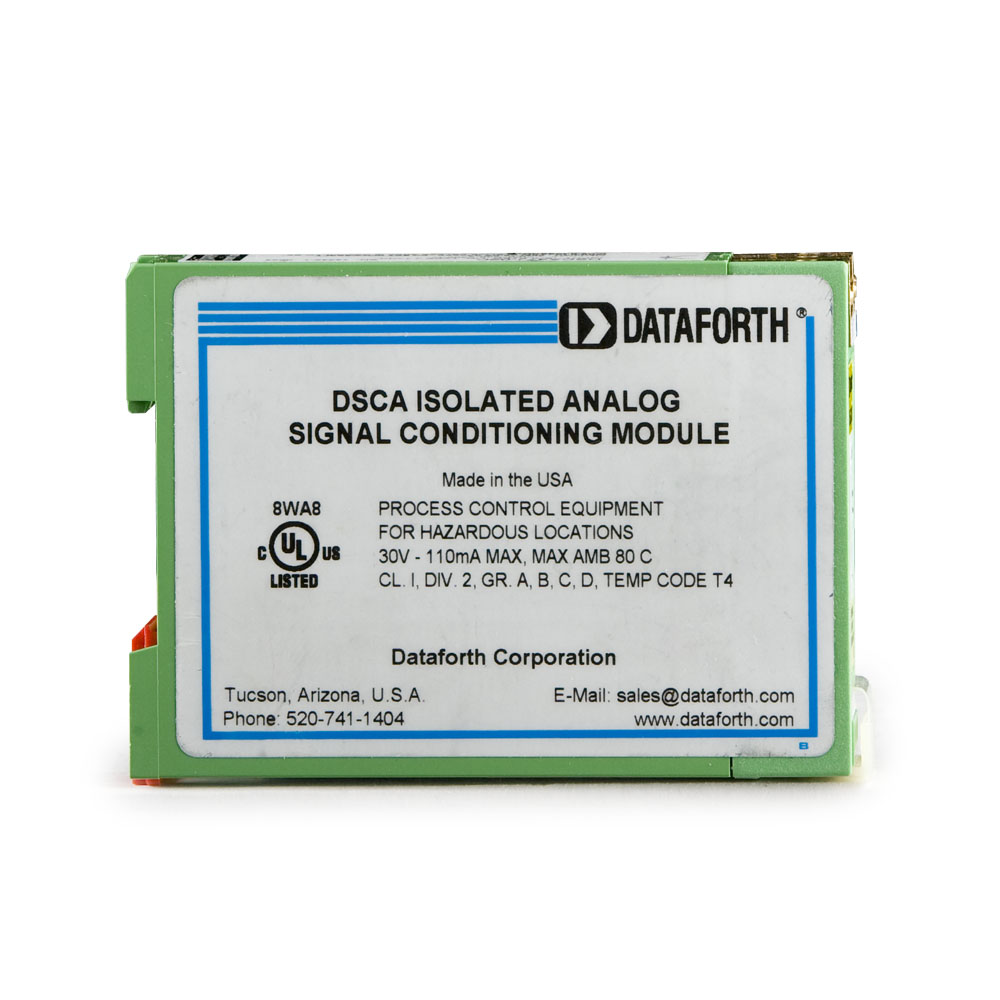

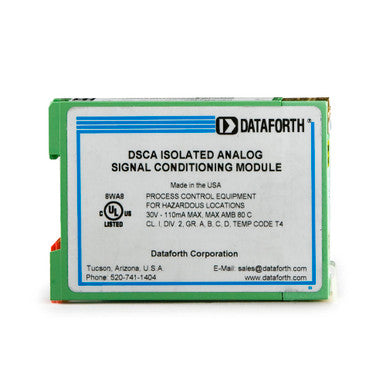

The J Type Thermocouple / 4-20mA Converter can be used with any Sensaphone model that accepts a 4-20mA signal to measure temperatures that are beyond the Sensaphone’s temperature sensing range. The converter allows monitoring of temperatures from -148° to 572°F. The Sensaphone will trigger an alarm when the temperature falls outside of the programmed high or low temperature limit. Optional accessory wire is required for installation.
Technical Specifications
Sensor Temperature Range: -148° to 572°F | -100° to 300°C
Accuracy: 0.08%
Thermocouple Type: J (not included)
Output Range: 4 to 20mA
Supply Voltage: 15 to 30V DC
Connection: Hardwired
Dimensions: 3 x .9 x 4.2" | 75 x 23 x 105mm
Sensor Series: 4-20mA
Downloads:
Product Videos
Custom Field
Temperature Range -148° to 572°F | -100° to 300°C
Sensor Type 4-20mA
