Product Description
Measure extreme temperatures
- Used to monitor temperatures as low as -200°C.
- Can be custom calibrated to temperatures between -200° to 204°C

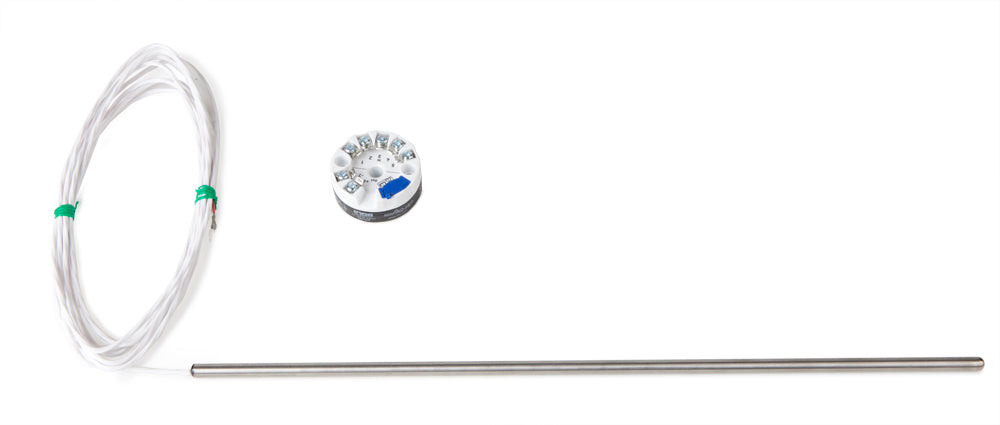

- Two temperature probe options available; 14" or 1"
- Requires 24VDC power supply

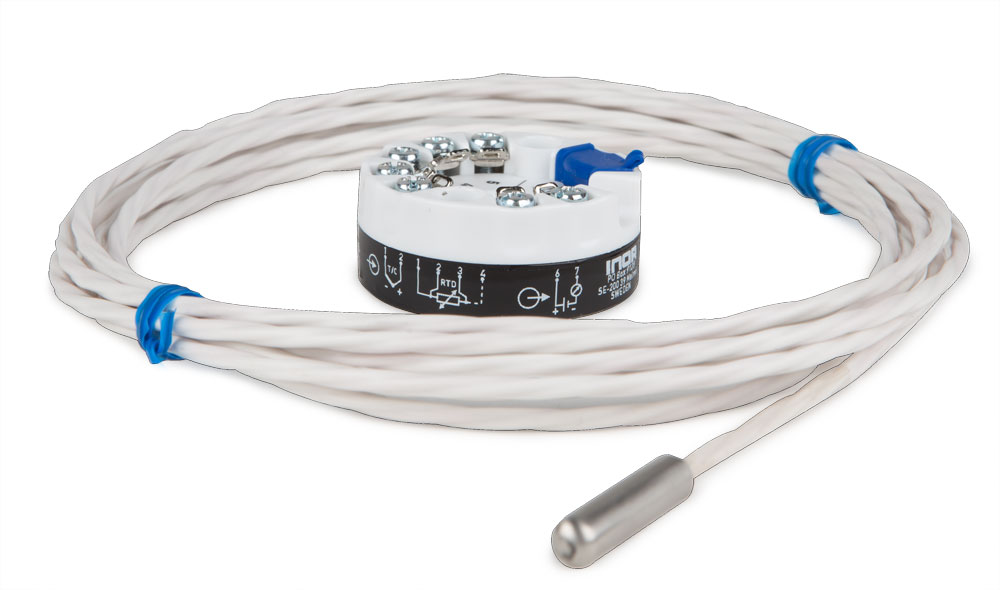

The RTD probe with 4-20mA transmitter can be used to measure the temperature in extreme environments. The standard transmitter is calibrated to operate over the range -200° to 35°C, but can be customized at time of order to operate over any range between -200° and 204°C. Two temperature sensing probes are available. The 14" probe is useful for applications such as monitoring liquid nitrogen, where the sensor cabling cannot be exposed to the cold atmosphere. The sensor will need a 24VDC power supply to operate (Part # FGD-0070).
Technical Specifications
Sensor Temperature Range: -328° to 399°F | -200° and 204°C. Custom temperature ranges can be specified at time of order
Connection: Hardwired
RTD Element: PT100 - 385ALPHA - CLASS B
Dimensions: 1 stainless steel RTD probe with 10 cable
Sensor Series: 4-20mA
Notes: Element Tolerance to IEC 60751 edition 2.0, par 5.1.2
Requires a 24VDC power supply FGD-0070
