Product Description
Monitor the presence or absence of cool moving air
- Measures relative air flow passing over the sensor from 0 to 100%
- Set high and low airflow limits by programming the Sensaphone
- Sensaphone will go into alarm when air flow level exceeds the high or low limit
- Easily mounted with included Velcro, double side tape or tie wraps
- Required RJ45 patch cable powers and connects sensor to Sensaphone

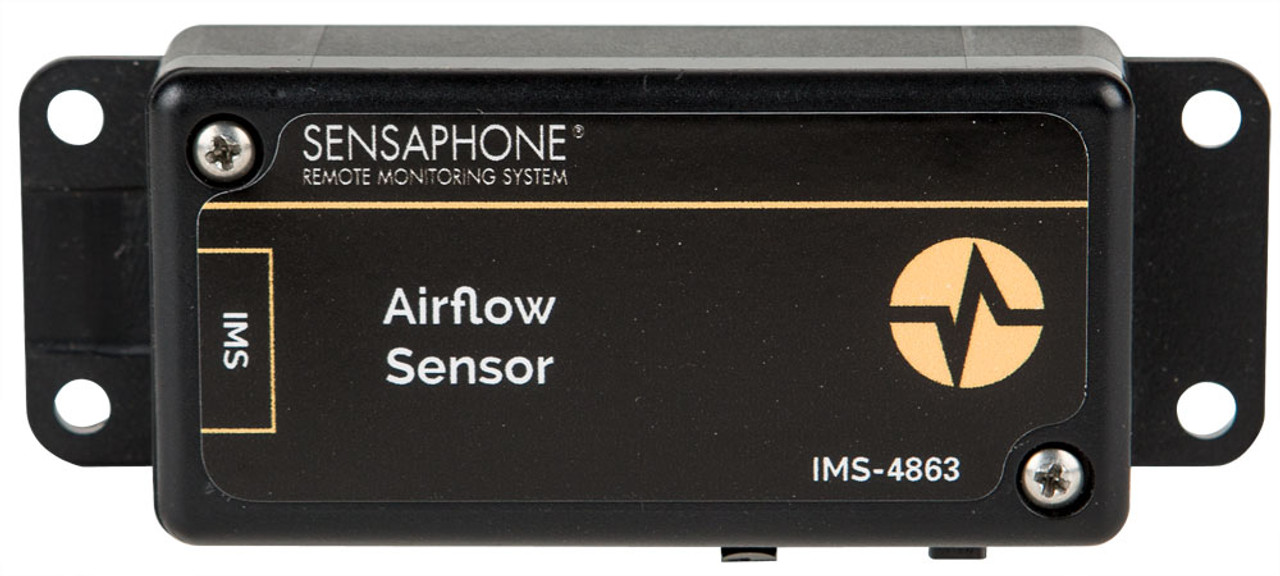

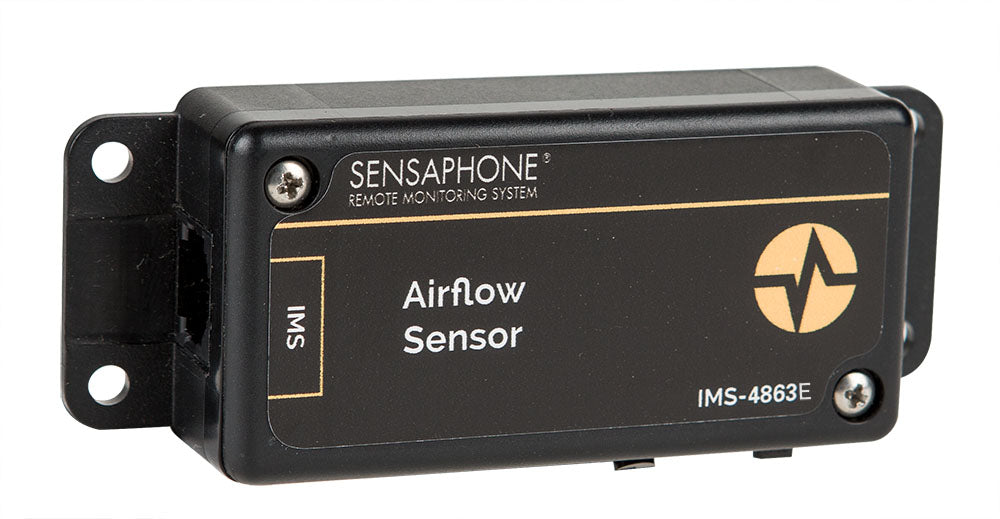

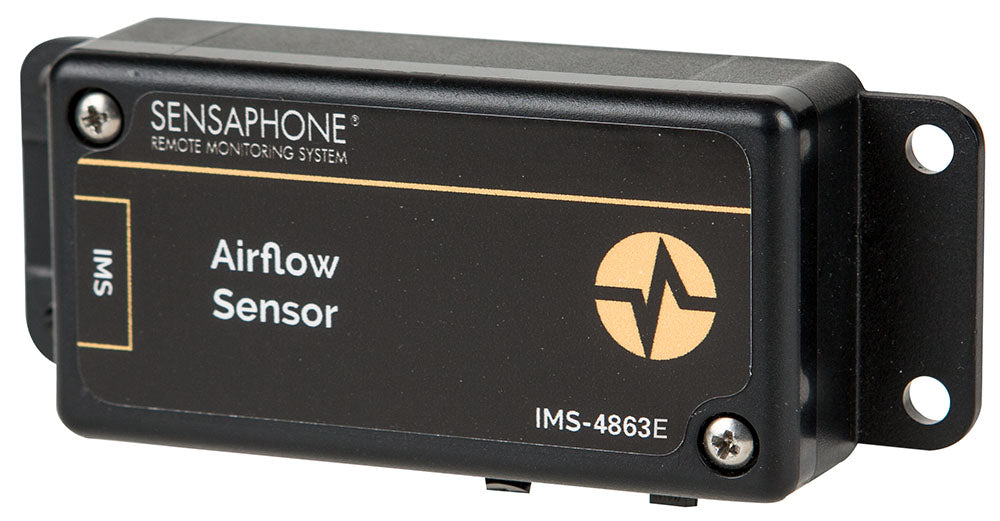

The IMS Air Flow Sensor is used exclusively with the Sensaphone IMS system system to measure and provide real time air flow values. It reports the relative air flow from 0 to 100% allowing you to monitor the operation of your cooling and ventilation systems. When the air flow level falls outside of the Sensaphone’s programmed high or low limit, the user will receive an alarm which displays or reads the current air flow value. The connection from the sensor to the IMS system can use an existing CAT5 network wiring infrastructure, which powers the sensor and allows it to be installed in locations away from the IMS host device.
Technical Specifications:
Operating Temperature: 32° to 80°F | 0° to 27°C
Sensing Range: Approximately 0 to 2,000 fpm

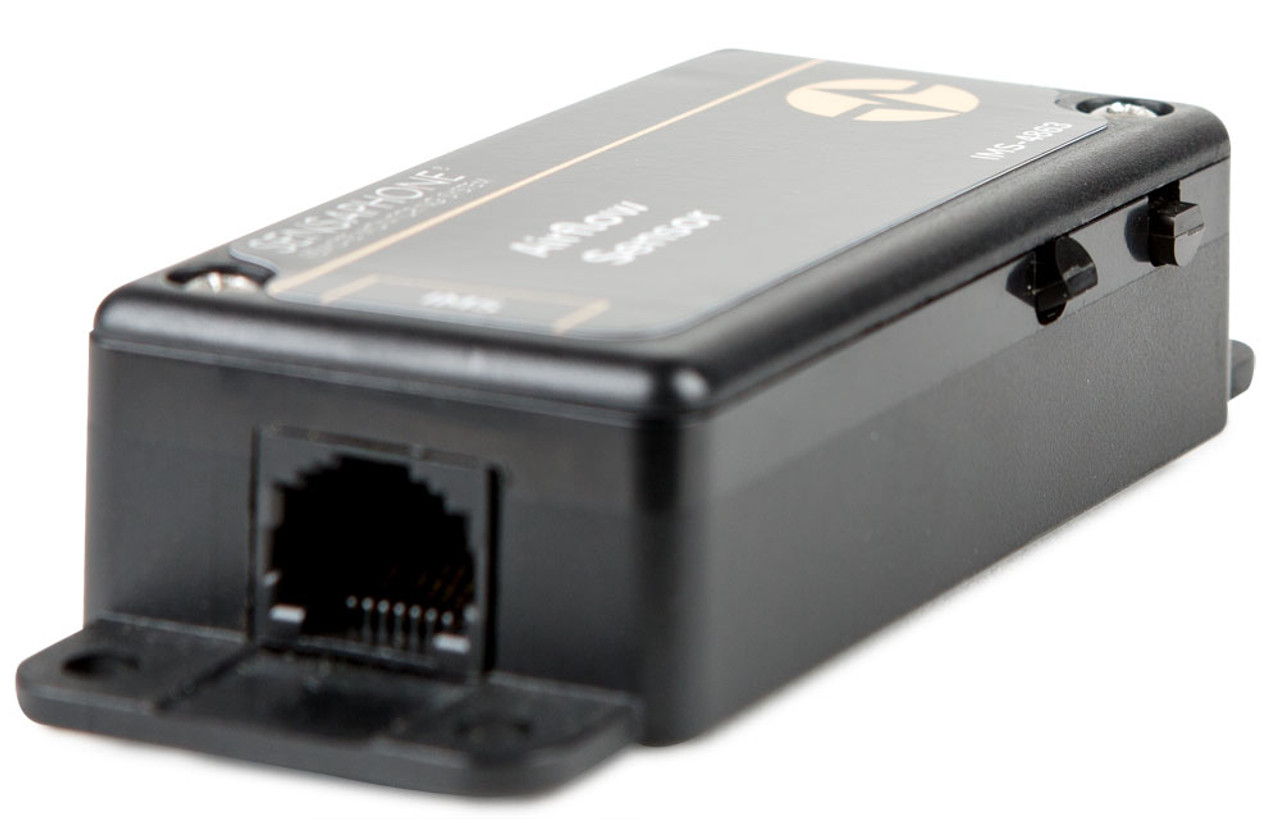

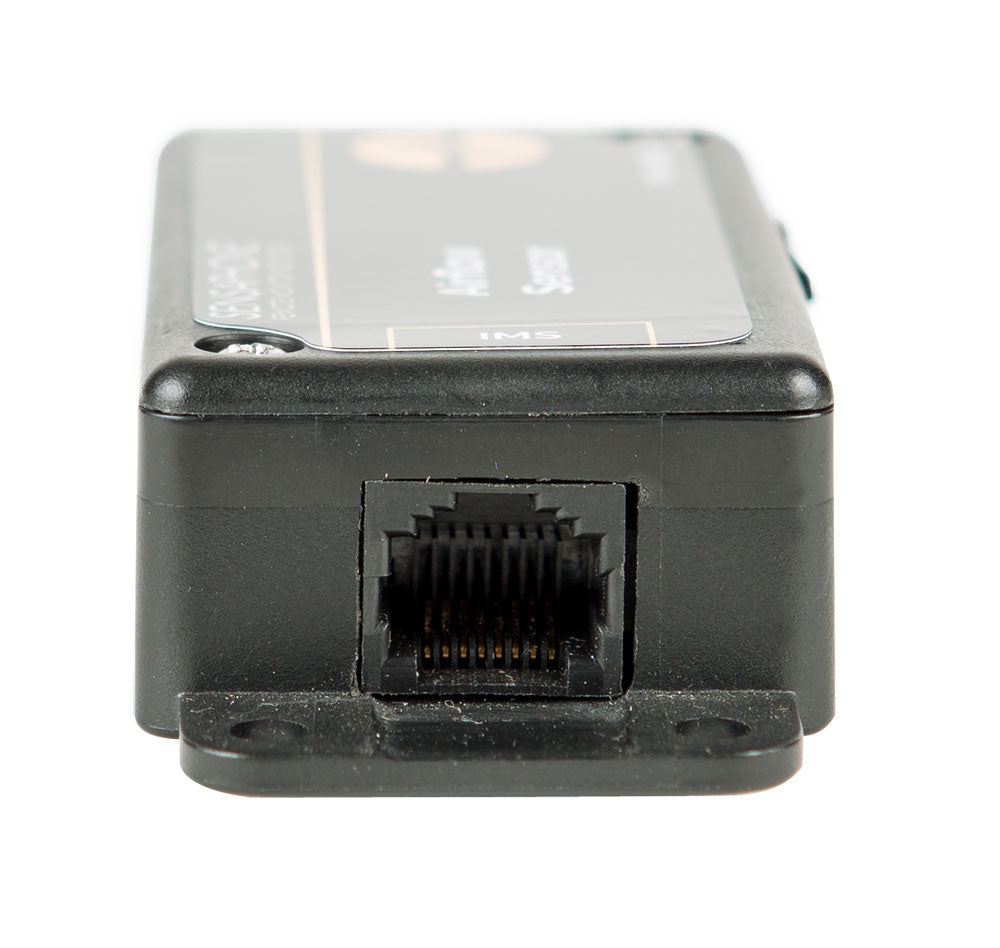

Connection: RJ45
Housing: Plastic
Dimensions: 4.2 x 1.6 x 0.9" | 106 x 40 x 23mm
Sensor Series: IMS Solution
Downloads
IMS Solution Air Flow Sensor Sales Brochure
IMS Solution Air Flow Sensor Instructions
