Product Description
Monitor fluid levels

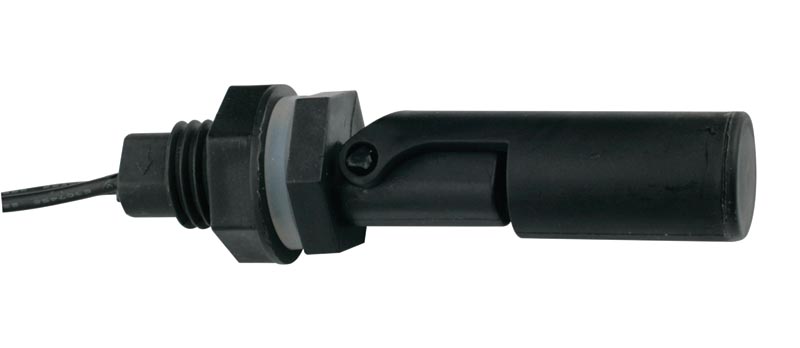

- Side mounted float switch
- Can be rotated for Normally Open or Normally Closed operation
- Contact rating: 50W
- Max switch voltage: 100VDC
The Float Level Switch can be used with all Sensaphone models to monitor for rise or fall of fluids in a well or tank. When the sensor detects the switch opening or closing due to the tank filling or draining, it will trigger the Sensaphone to go into alarm. It is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming. The sensor requires no additional power for operation and is connected to the Sensaphone via accessory wire (not included).
Technical Specifications
Operating Range: -10° to 80°F | -23° to 26°C
Contact Rating: 50W
Max Switch Voltage: 100VDC
Connection: Hardwired
Housing: Plastic

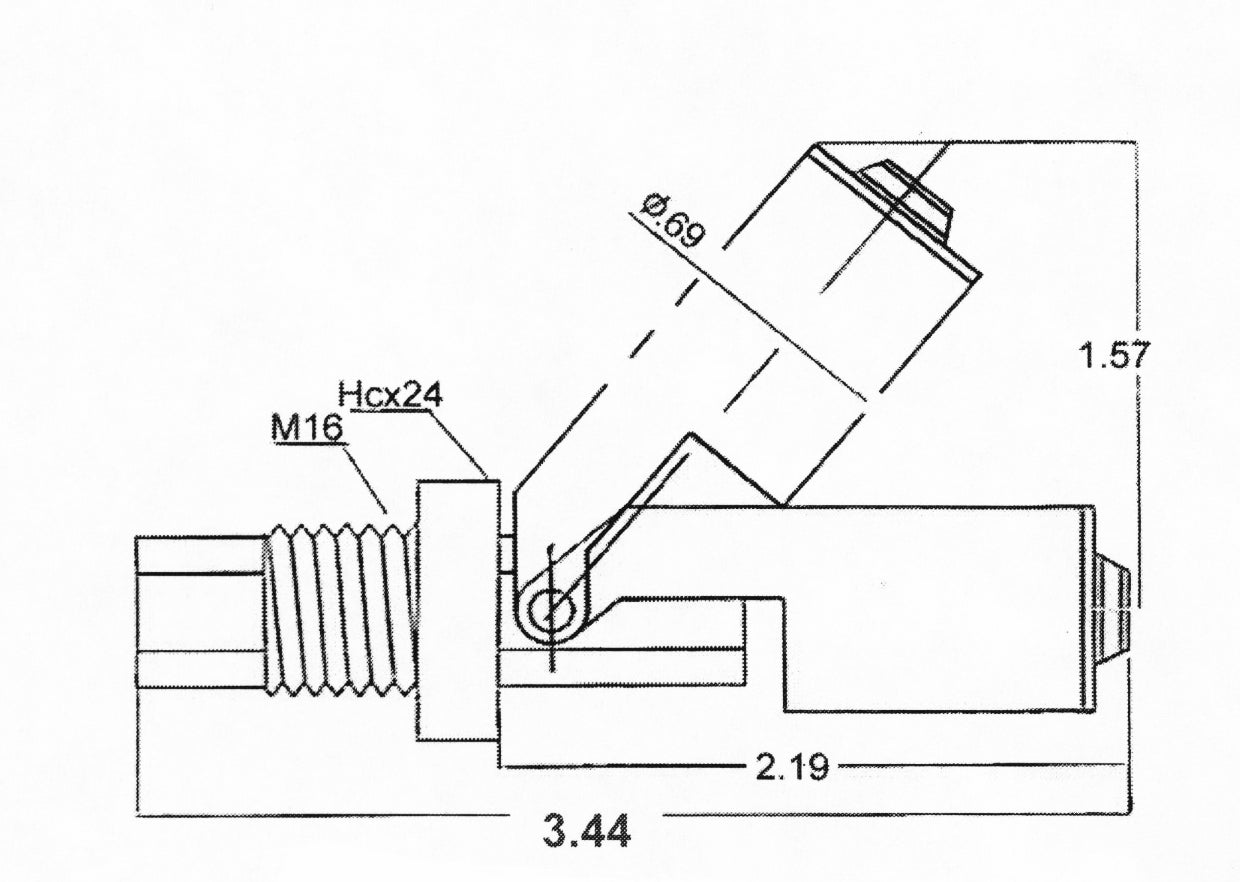

Dimensions: 3.5 x 1.5" | 89 x 38mm
Sensor Series: Contact Series
Downloads
Contact Type Float Level Switch Sales Brochure
Contact Type Float Level Switch Instructions
