Product Description
Monitor air temperature from 20° to 110°F | 6.7° to 43.3°C
- Monitors temperatures from 20° to 110°F | 6.7° to 43.3°C
- Sends a simple alarm or no alarm status to the Sensaphone
- Provides a local display of temperature reading
- Multiple sensors can be added to one Sensaphone input
- Separate output for high and low alarm signals
- No power required to operate
- 1 year warranty

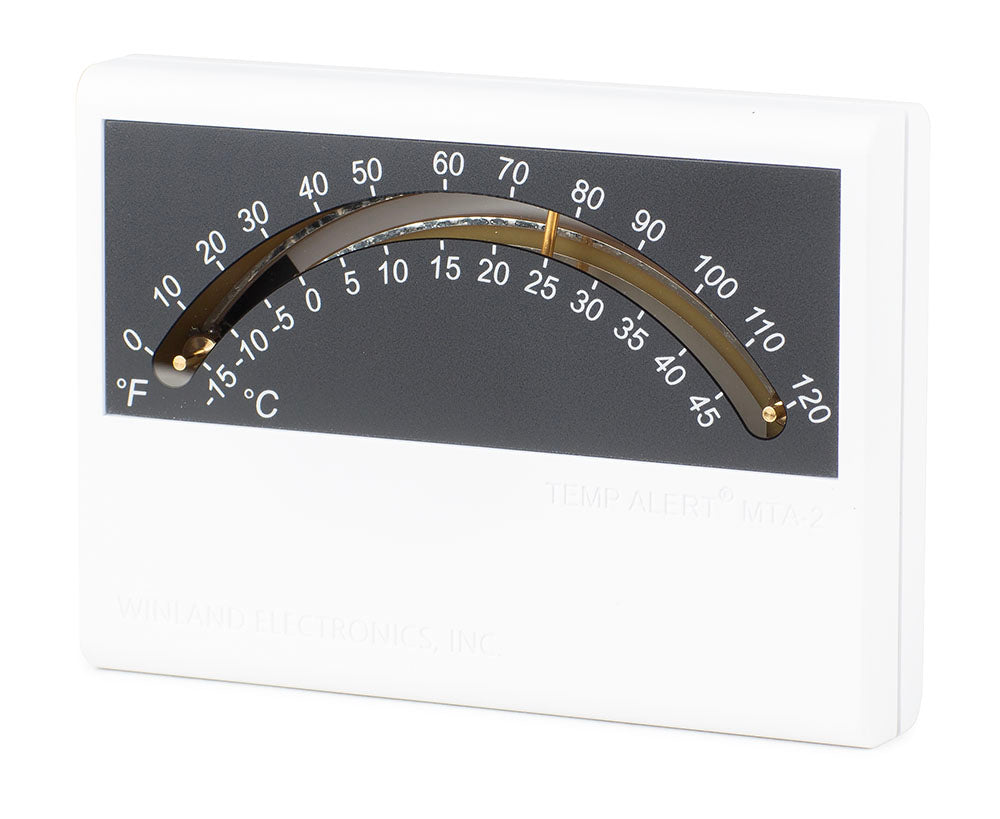

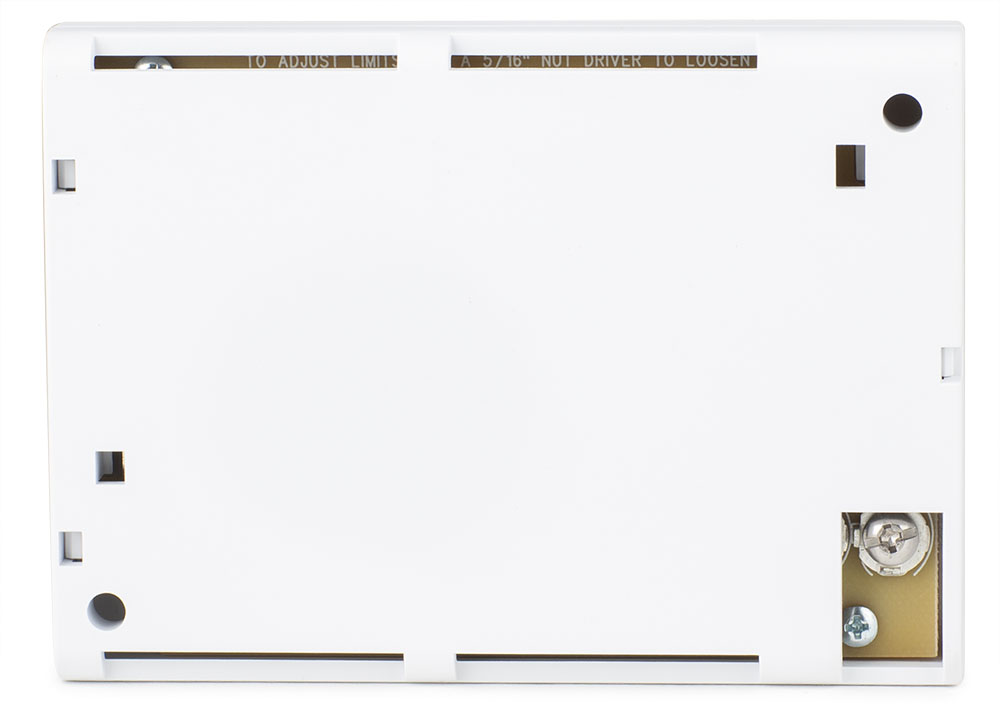

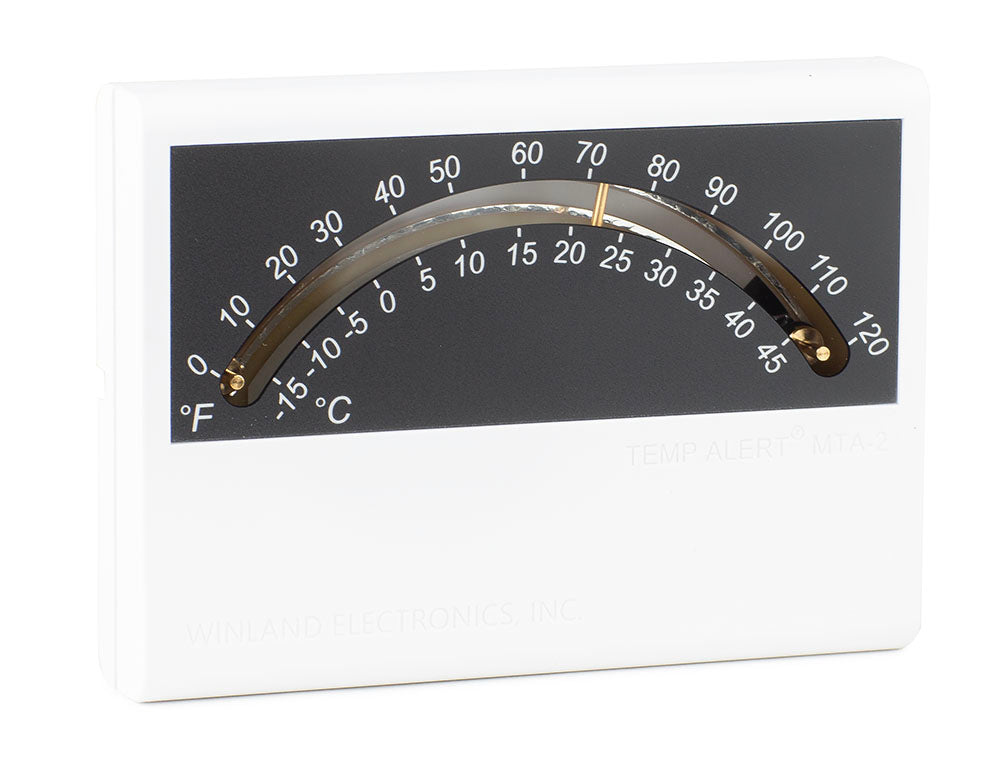

The Temp Alert Temperature Switch can be used with all Sensaphone models. It monitors air temperature from 20° to 110°F | 6.7° to 43.3°C. By adjusting the temperature limit arms, you can select the acceptable temperature limits for your application. Simply use a screwdriver to set the temperature limit arms on the rear of the device.
When the ambient air temperature rises or falls to the limit arms, the temperature sensor triggers an alarm. The temperature alert can be mounted to any wall or vertical surface. Multiple temp alerts may be wired in parallel to a single input. It requires no power for operation and mounts easily on any flat surface.
Technical Specifications
Sensor Temperature Range: Alarm Use: 20° to 110°F (6.7° to 43.3°C) | Display use: 0° to 120°F (-17.8° to 48.9°C)
Accuracy: 3°F | 1.7°C
Connection: Hardwired
Housing: Plastic
Dimensions: 4.5 x 3.25 x 1" | 11.4 x 8.3 x 2.5cm
Sensor Series: Contact Series
Temp Response Time: TC = 14 minutes
Minimum Temp Span: 10 Recommended distance between high and low set points
